Pro Krawler Joint [3/4 SHANK] Universal Fitment RK02602L

SKU RK02602L
Original price $0.00 - Original price $0.00
Original price $0.00
$46.44
$46.44 - $46.44
Current price $46.44

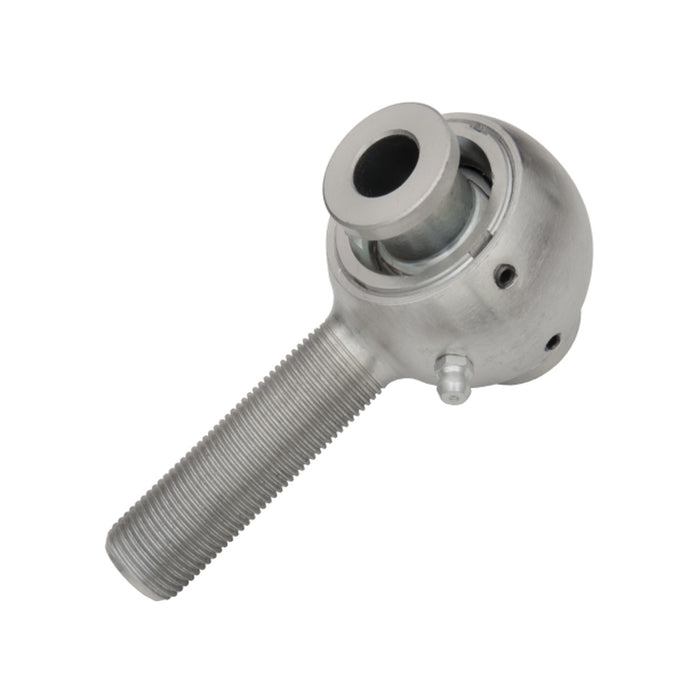

The Pro Krawler Joint is a revolutionary joint manufactured with the tightest tolerances for ultimate consistency. The chromoly joint housings are heat treated for increased strength and then zinc plated for corrosion resistance. The hard chrome plated inner ball is machined from billet 52100 steel for strength and durability. The inner raceway provides wear resistance, high frequency vibration isolation and durability. The body and clevis mounting width ratio of the Pro Krawler Joint is a key design feature which provides +/-20 degrees of misalignment. That’s a total of 40 degrees of misalignment per side (see illustration below)
      • Tight tolerances for ultimate consistency
      • Heat treated & zinc plated chromoly joint housing
      • Wear resistance, vibration isolating raceway
      • +/-20 degrees of misalignment






Part #
Description
COMMON OEM APPLICATION
Dim 1
Dim 2
Dim 3
Dim 4
Dim 5
Dim 6
Dim 7
Dim 8
Retail Price
RK05184
JOINT, ANTI_WOBBLE [3/4 SHANK] JK TRACK BAR, FRAME SIDE 0.75 -16 RHT 2 14 MM 1.625 1.25 2.5 3.625 -- $54.11
RK02602
JOINT, KRAWLER PRO [3/4 SHANK] XJ/MJ/ZJ/TJ/WJ/LJ FRONT UPPER CONTROL ARM

ZJ/TJ/LJ REAR UPPER CONTROL ARM
0.75 -16 RHT
2
10 MM
2
1.25
2.5
3.625
20
$48.88
RK02602L
JOINT, KRAWLER PRO [3/4 SHANK]

XJ/MJ/ZJ/TJ/WJ/LJ FRONT UPPER CONTROL ARM

0.75 -16 LHT
2
10 MM
2
1.25
2.5
3.625
20
$48.88
RK01226
JOINT, KRAWLER PRO [3/4 SHANK] JK REAR UPPER CONTROL ARM
0.75 -16 RHT
2
14 MM
2.375
1.25
2.5
3.625
20
$48.88
RK01226L
JOINT, KRAWLER PRO [3/4 SHANK] JK REAR UPPER CONTROL ARM
0.75 -16 LHT
2
14 MM
2.375
1.25
2.5
3.625
20
$48.88
RK02801
JOINT, KRAWLER PRO [3/4 SHANK] JK FRONT UPPER CONTROL ARM
0.75 -16 RHT
2
12 MM
2
1.25
2.5
3.625
20
$48.88
RK02801L
JOINT, KRAWLER PRO [3/4 SHANK] JK FRONT UPPER CONTROL ARM
0.75 -16 LHT
2
12 MM
2
1.25
2.5
3.625
20
$48.88
