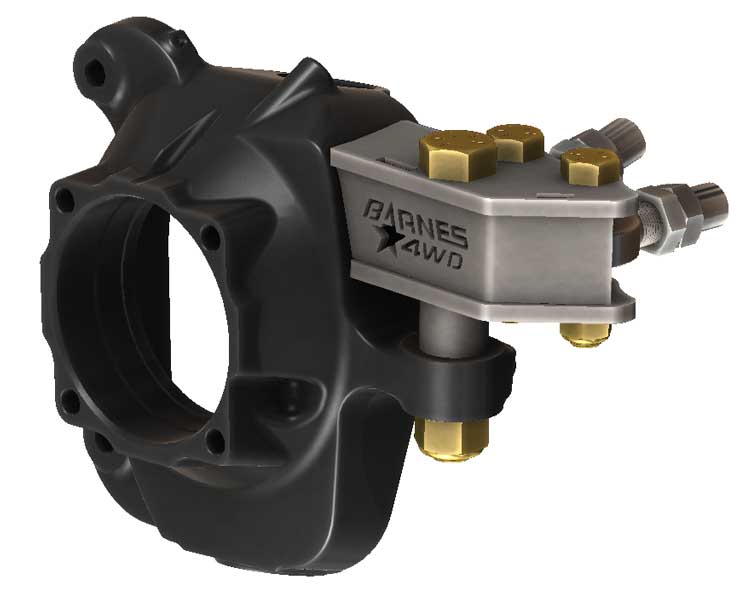

Steering Knuckle, Heim Joints, And Associated Hardware Not Included

BARNES 4WD Weld On High Steer Arms 2005-2008 Superduty Dana 60 | P/N B4WK12340

by Barnes 4WD
SKU B4WK12340
✓ In stock and ready to ship.
$98.25 - $98.25
$98.25
$98.25 - $98.25
$98.25

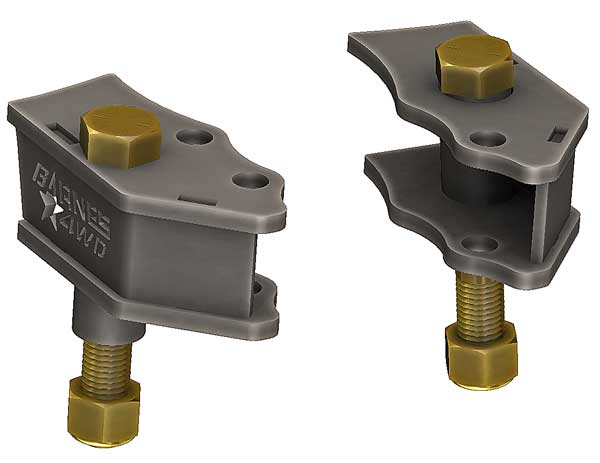

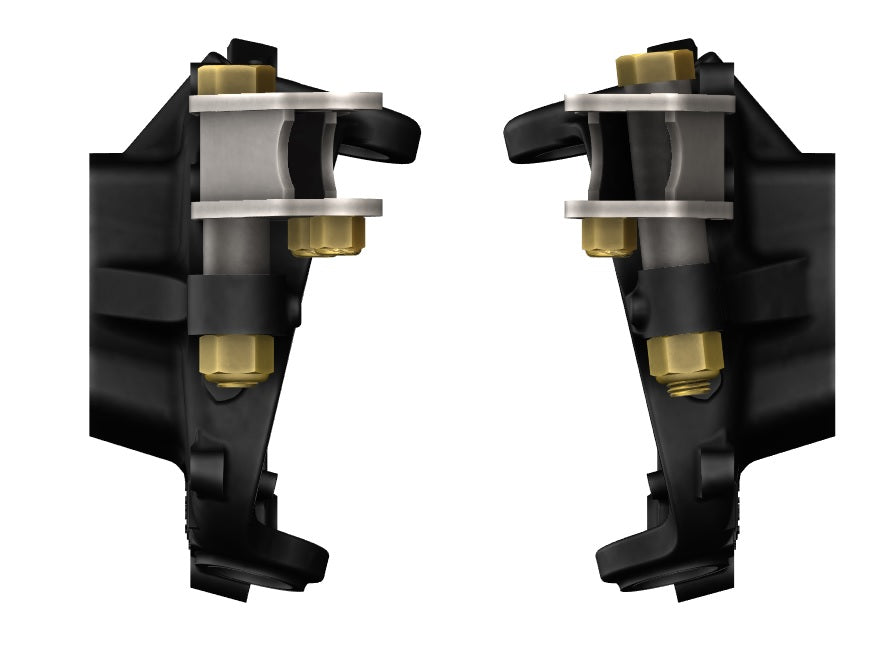

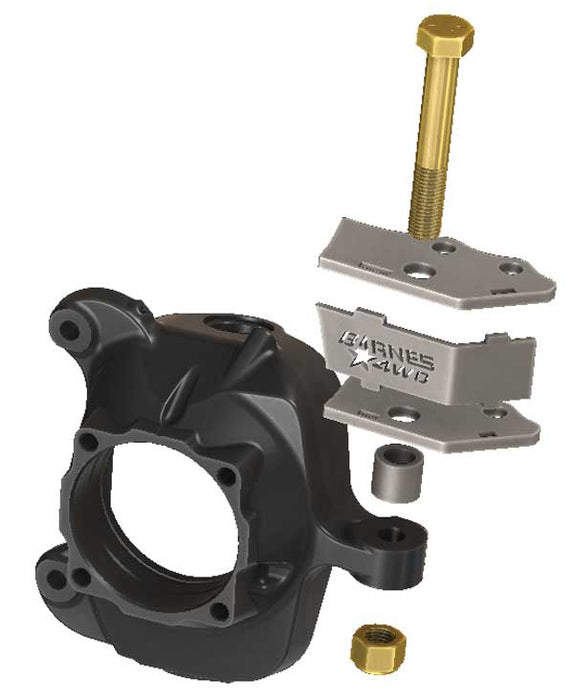

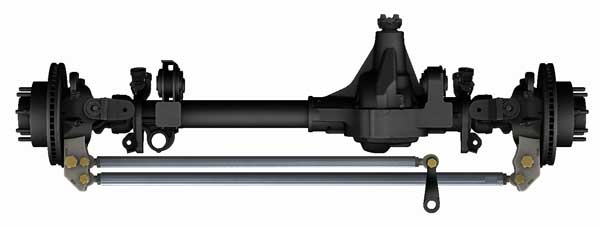

Weld on double shear high steer arms are the best way to add crossover steering to a Superduty Ford ball joint Dana 60. This kit ties into the factory steering location and is welded to the cast steel knuckles. This kit requires welding, drilling, and is only compatible with Super Duty Ford ball joint Dana 60 axles made from 2005 to 2008.  This kit requires a 17 inch wheel or larger, with 4.25 inches of backspacing or less.

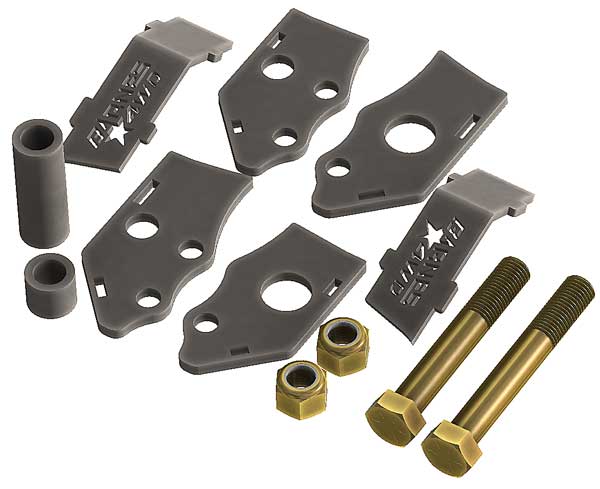

Constructed of 3/8" and 1/4" steel with two 1" grade 8 bolts.

Double shear crossover steering.

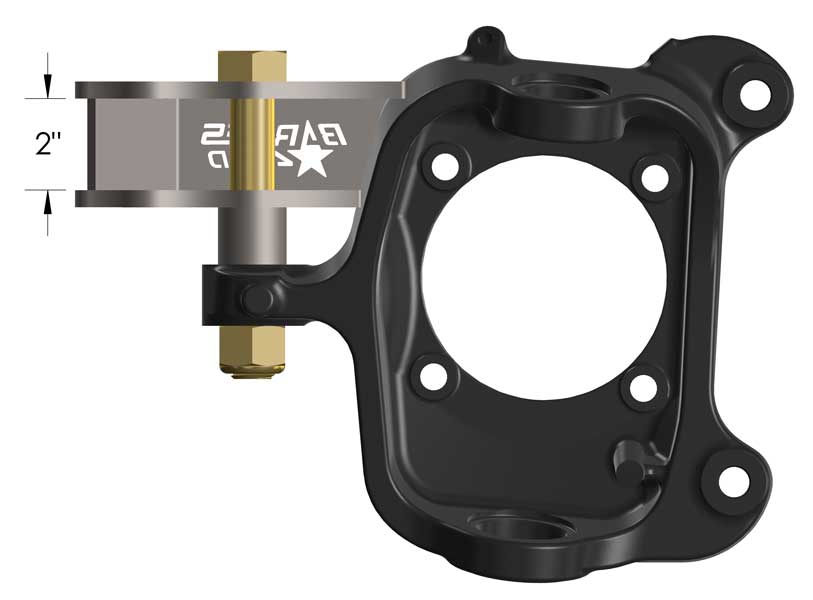

2" mounting width with a 3/4" bolt hole.

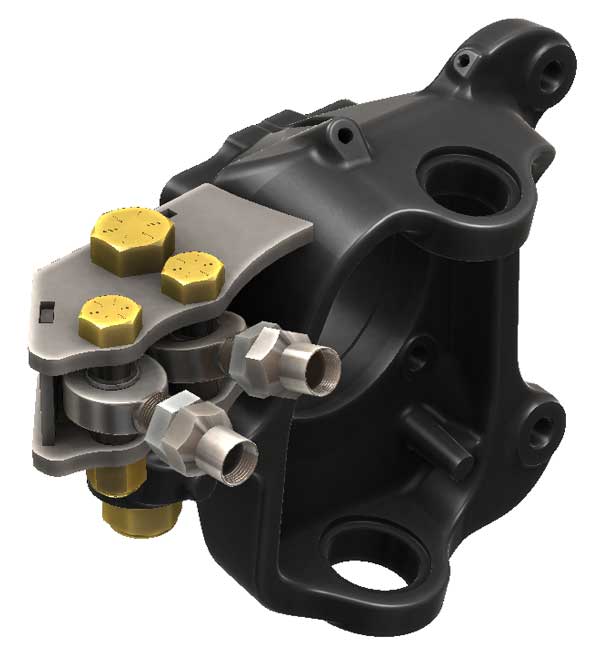

Sold in pairs, heim joints, and steering knuckles are not included.










Part Numbers

  • MPN B4WK12340
Vehicle Fitment
