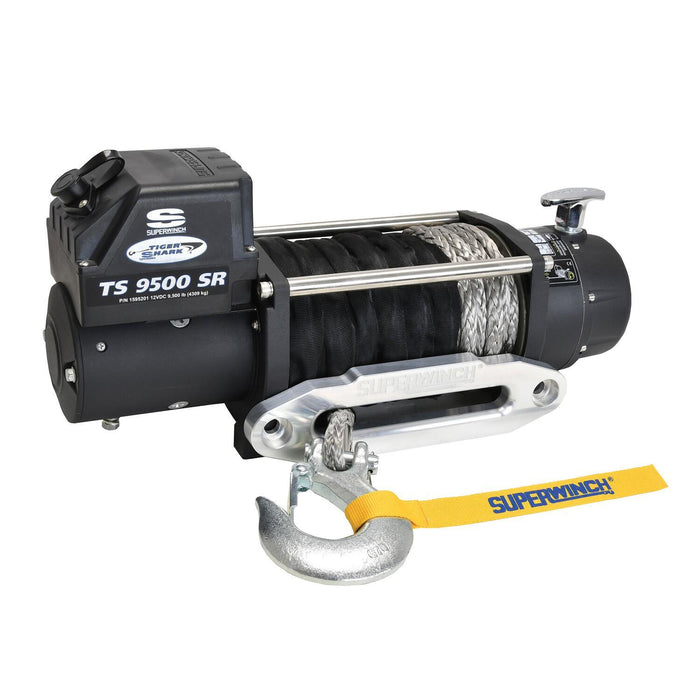

Superwinch Tiger Shark 9500 Winch | 9,500 lb, 12V DC | P/N 1595200

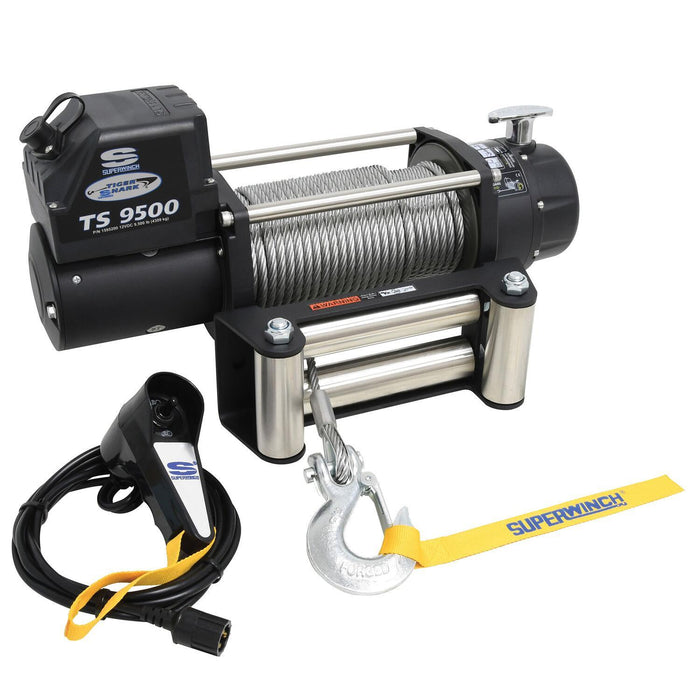

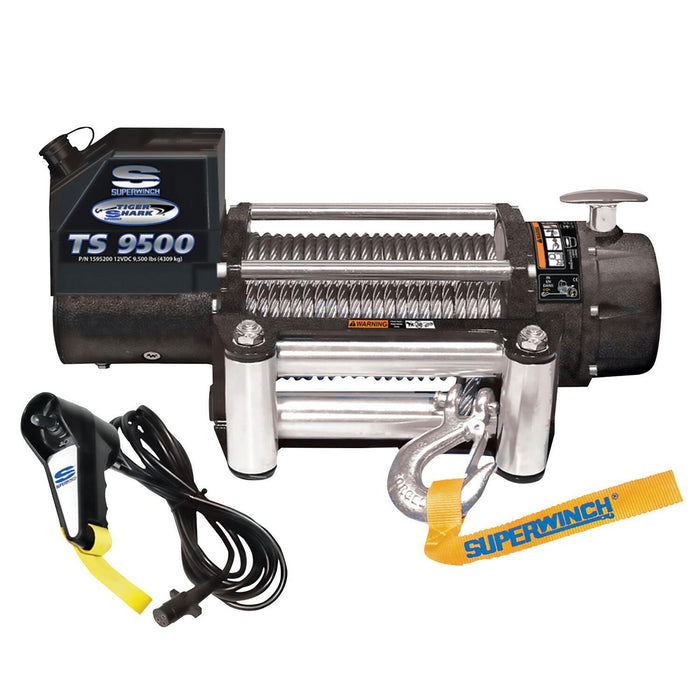

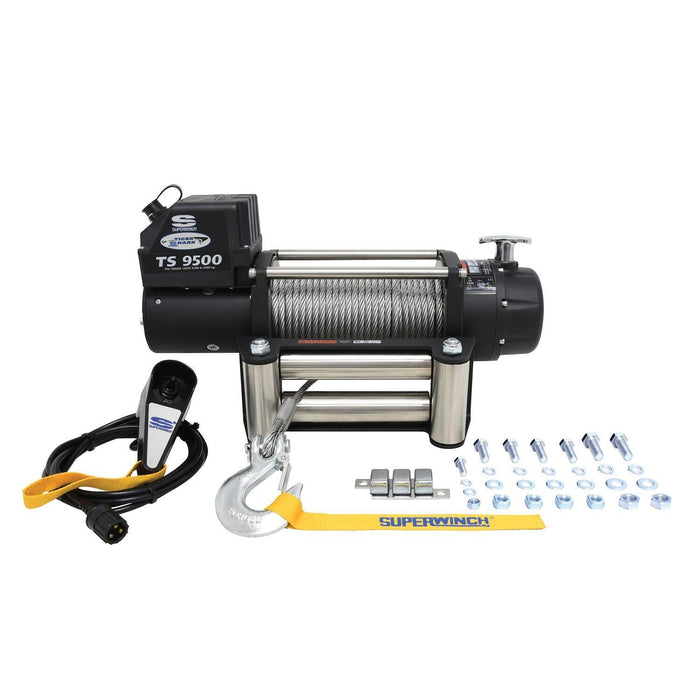

The Tiger Shark 9500 is a 12V DC electric winch with a 9,500 lb rated line pull and a 5.2 HP series wound motor. It uses 3-stage planetary gearing, a weather sealed solenoid and stainless steel tiebars, and is offered with steel wire rope or synthetic rope.

Features

• Rated line pull of 9,500 lbs
• 5.2 HP motor
• 3-Stage planetary gearing with 218:1 ratio

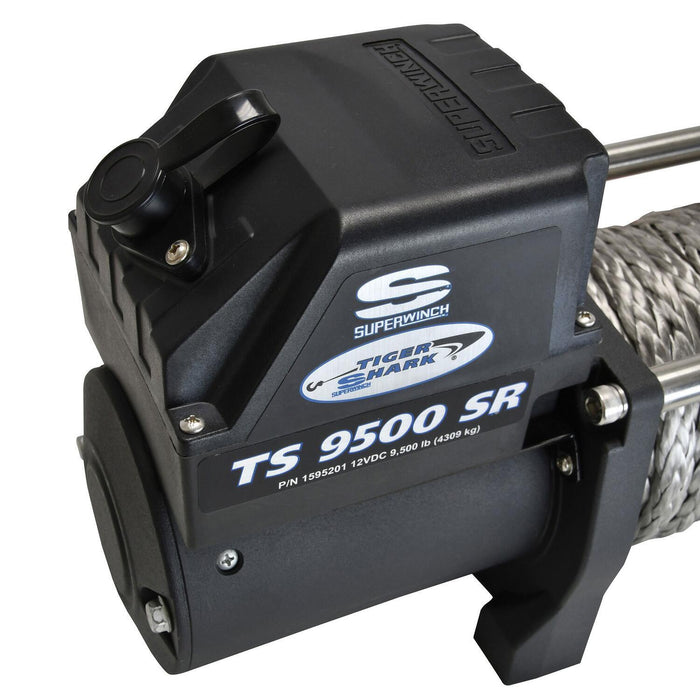

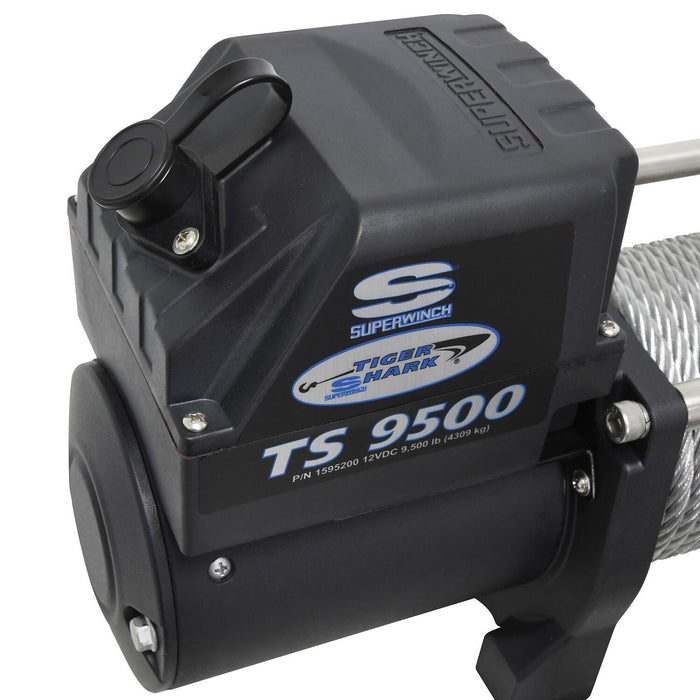

• Weather sealed solenoid
• Heat insulated first layer
• Ergonomic pull and turn freespool (wire rope)

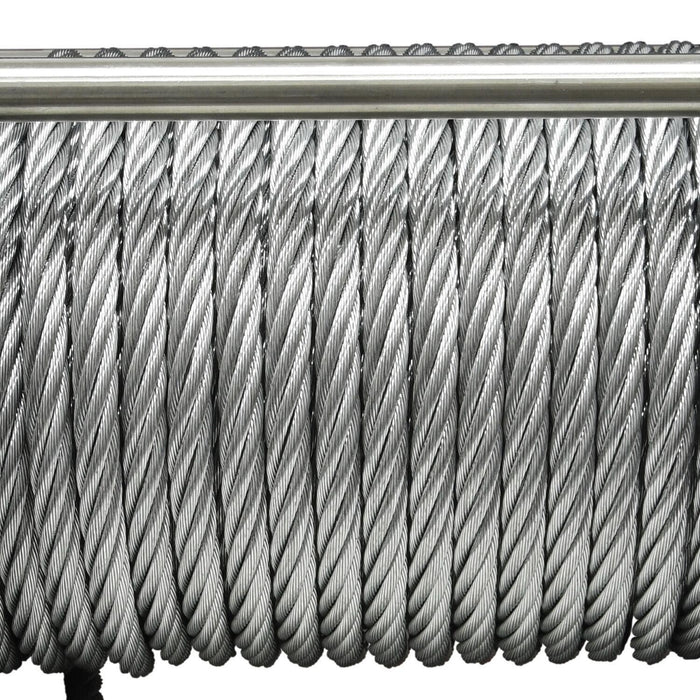

• 95 ft. x 21/64 in. wire rope

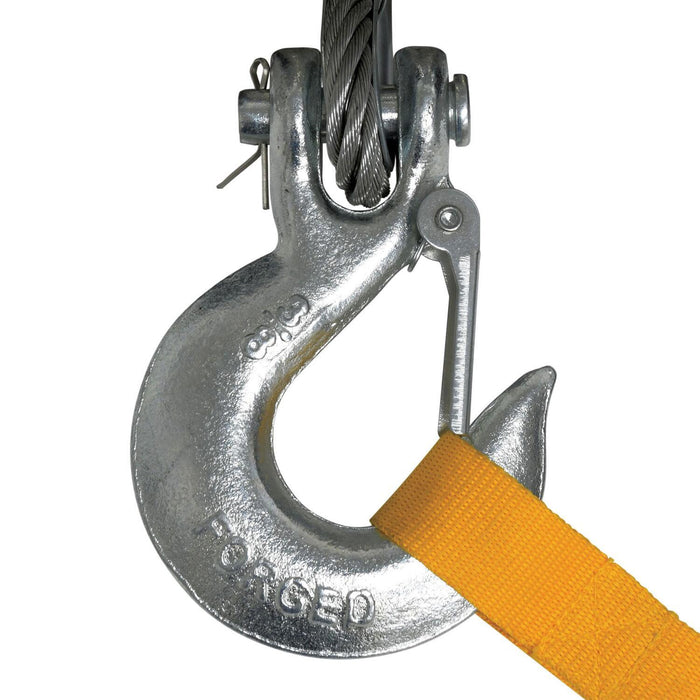

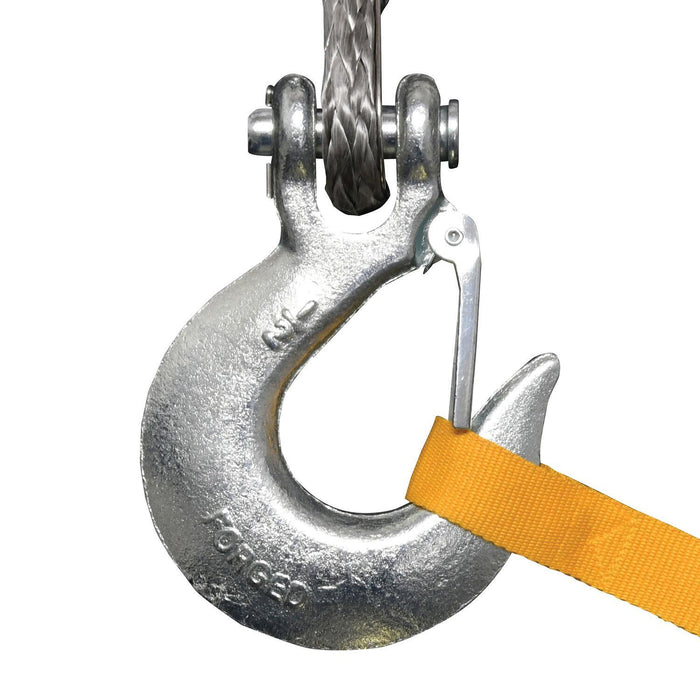

• Heavy-duty, clevis pinned, latched hook
• Stainless steel 4-way roller fairlead (wire rope)

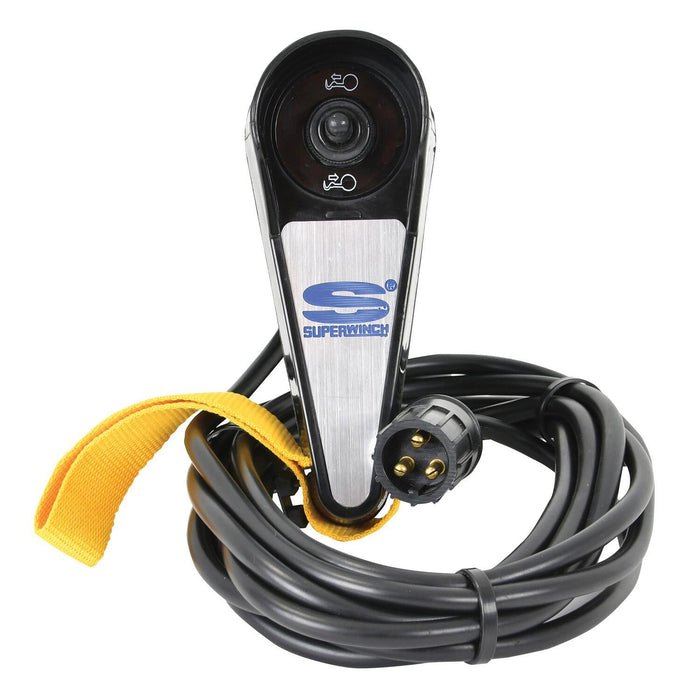

• Rugged handheld remote control
• Stainless steel tiebars

Specifications

• Winch Type: Electric
• Voltage: 12V DC
• Motor: Series wound 5.2 HP/3.8KW, 12V DC
• Gear System: 3-stage planetary
• Gear Ratio: 218:1

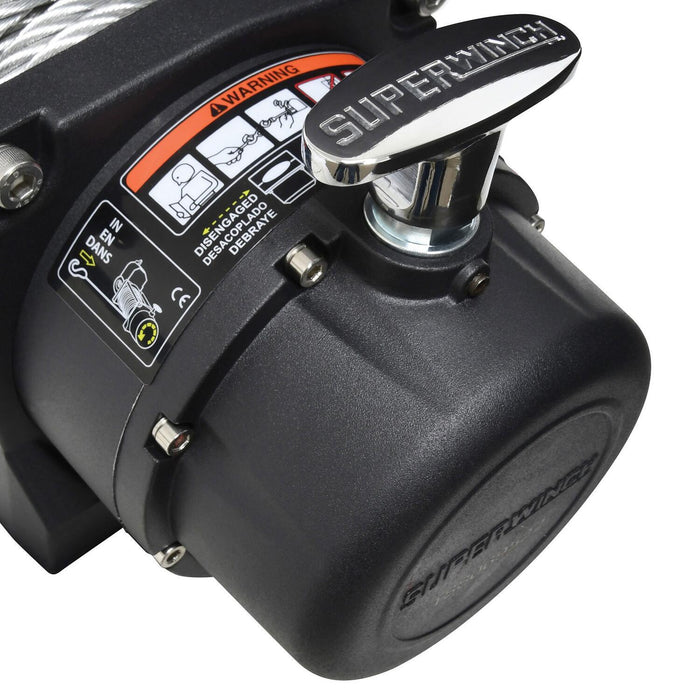

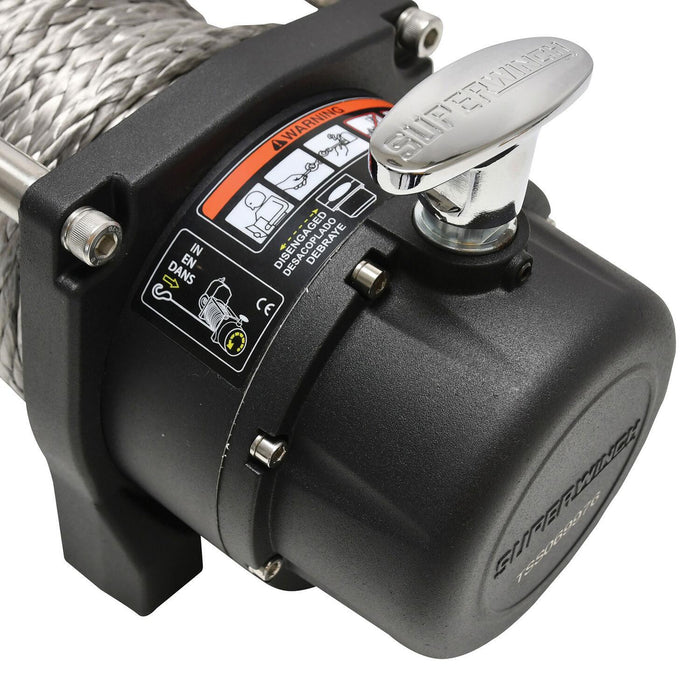

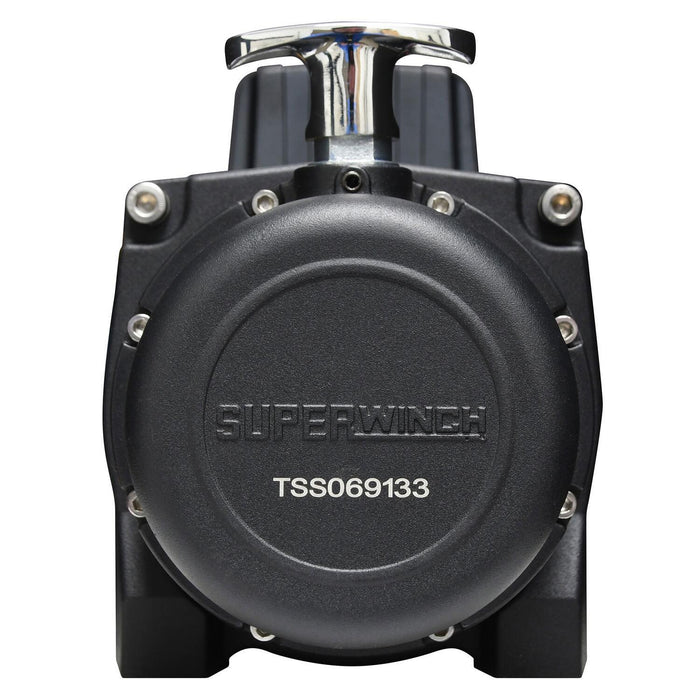

• Clutch: Ergonomic pull and turn
• Brake System: Mechanical, Automatic Load Holding
• Rope Material (Steel Wire Rope Black): Steel Wire

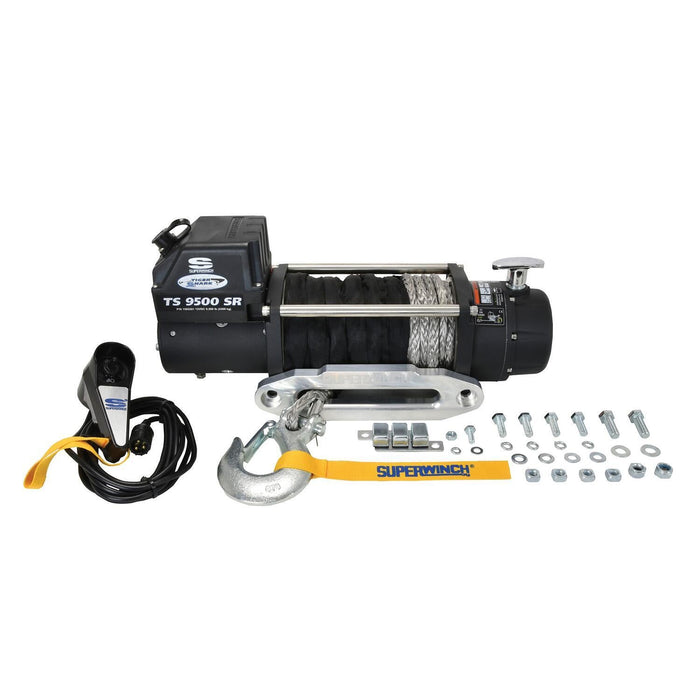

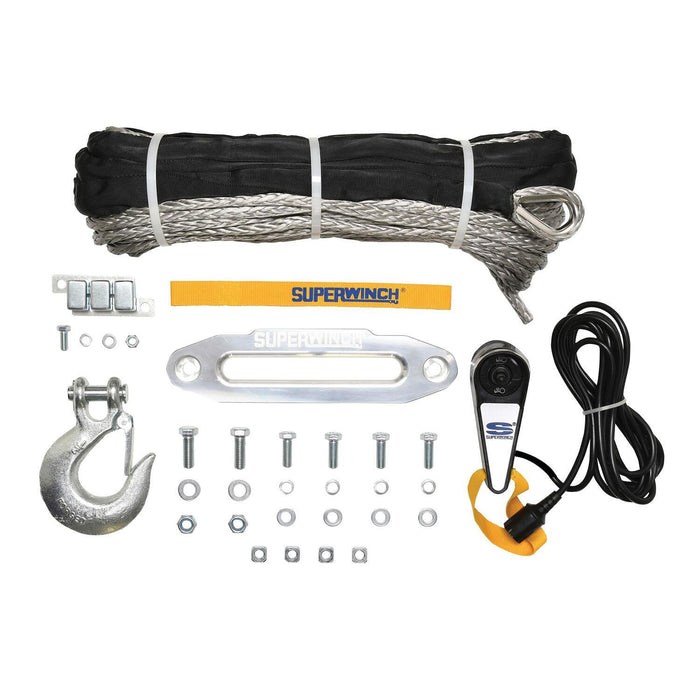

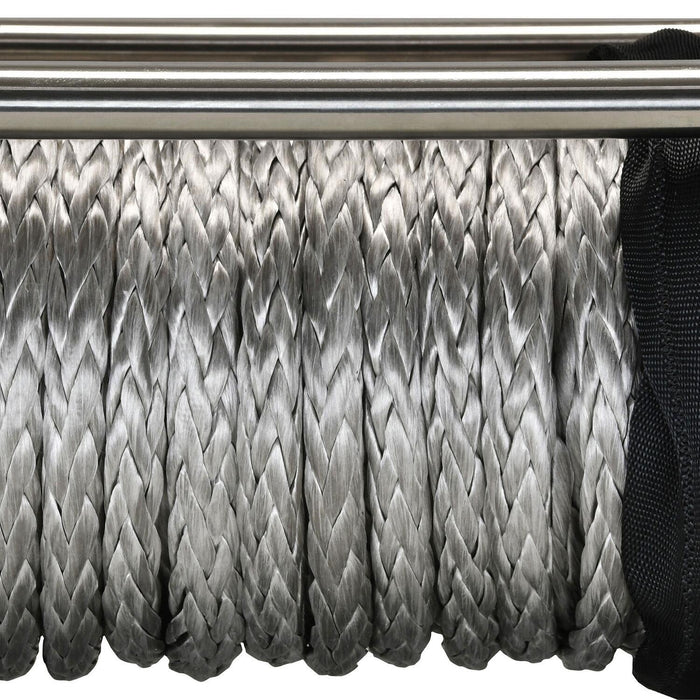

• Rope Material (Synthetic Rope Black): Synthetic
• Rope Length (Steel Wire Rope Black): 21/64 in x 95 ft (8.3mm x 29m)
• Rope Length (Synthetic Rope Black): 3/8 in x 80 ft (9.5mm x 24.3m)
• Fairlead (Steel Wire Rope Black): Stainless Steel 4-Way Roller
• Fairlead (Synthetic Rope Black): Aluminum hawse
• Remote Type: Wire

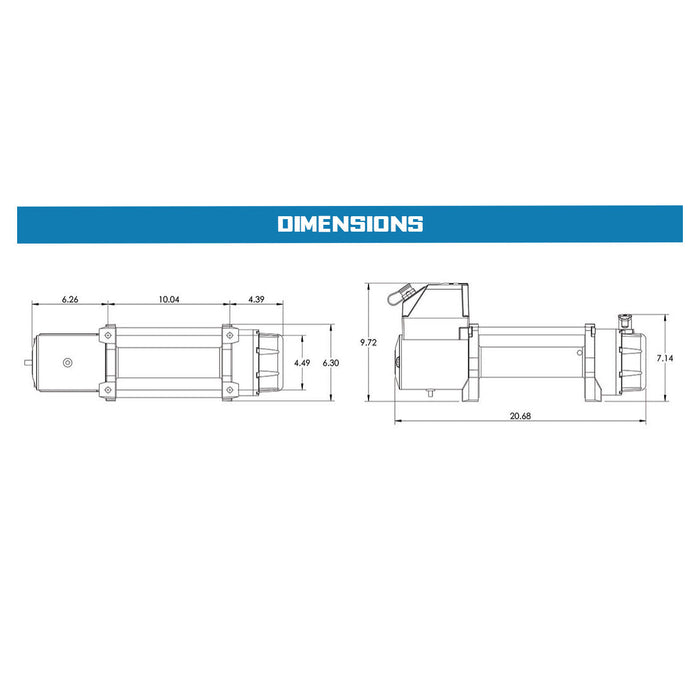

• Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
• Color: Black
• Drum: Durable fully welded steel drum
• Winch Hook: Heavy-Duty, Clevis Pinned Latched

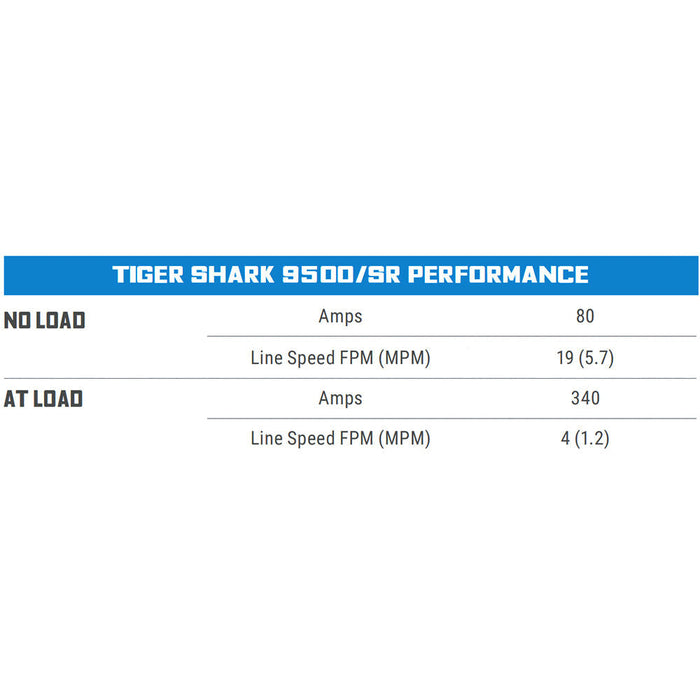

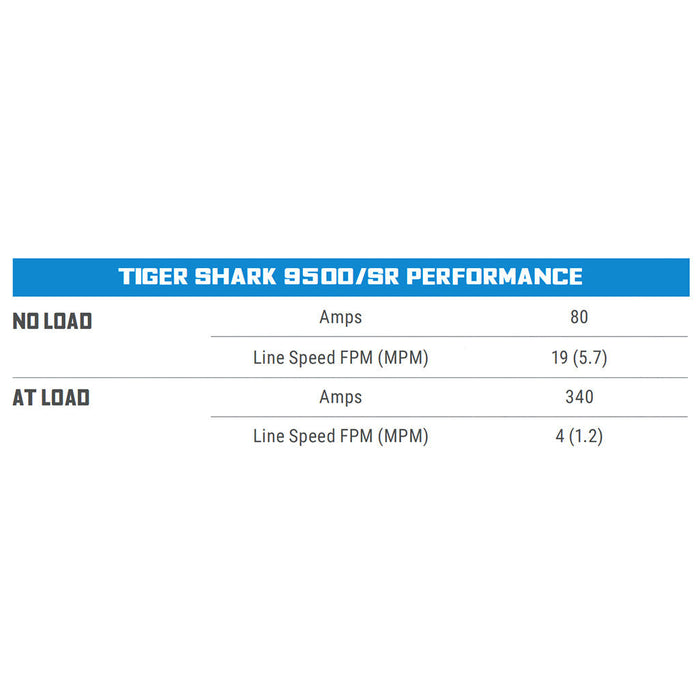

• Line Speed: 80 Amps Motor Draw/19 FPM (5.7 MPM)
• Weight (Steel Wire Rope Black): 82 lb
• Weight (Synthetic Rope Black): 63 lb

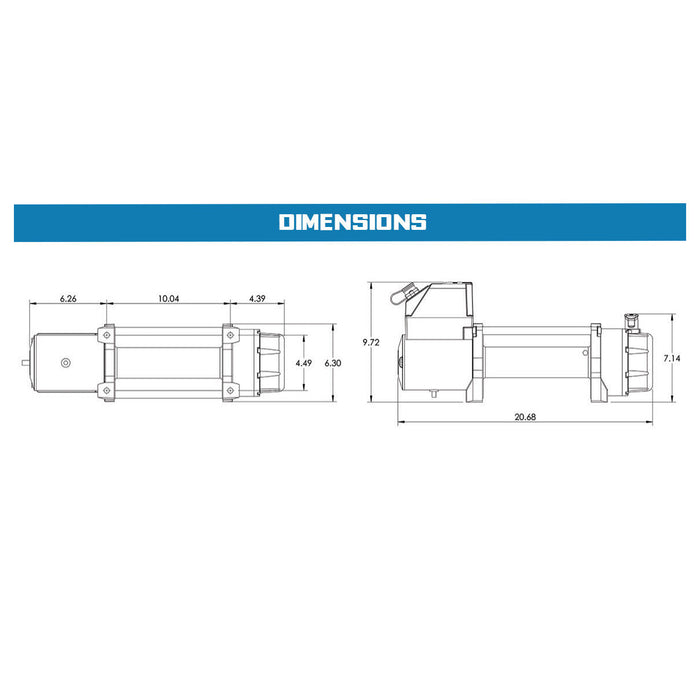

• Width: 12 in
• Height: 12 in

Part Numbers

• MPN 1595200
• MPN 1595201
