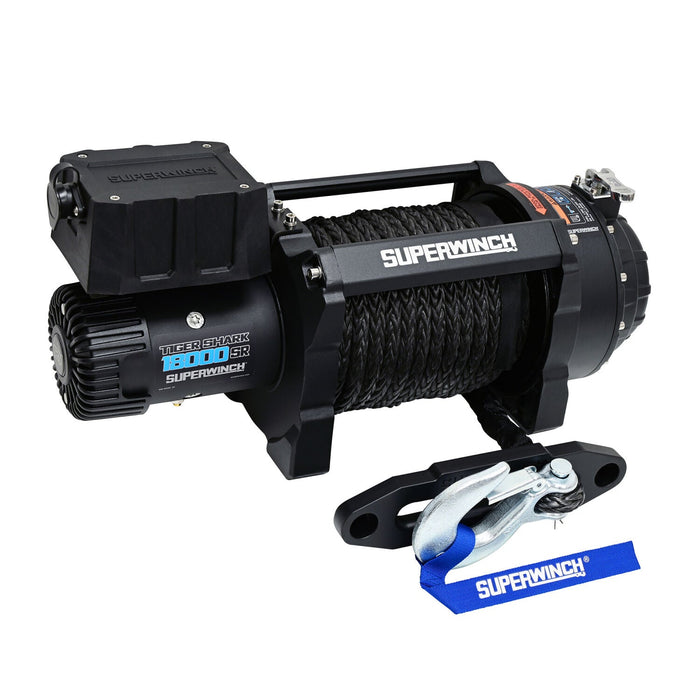

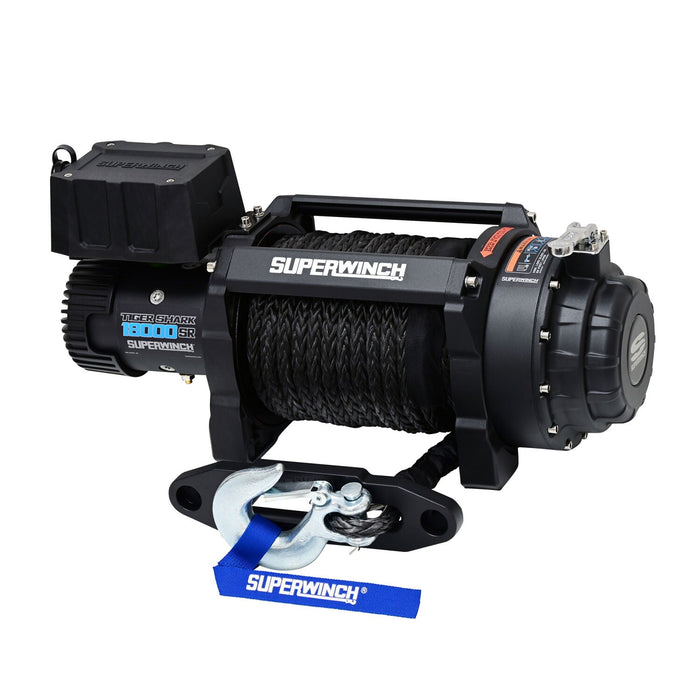

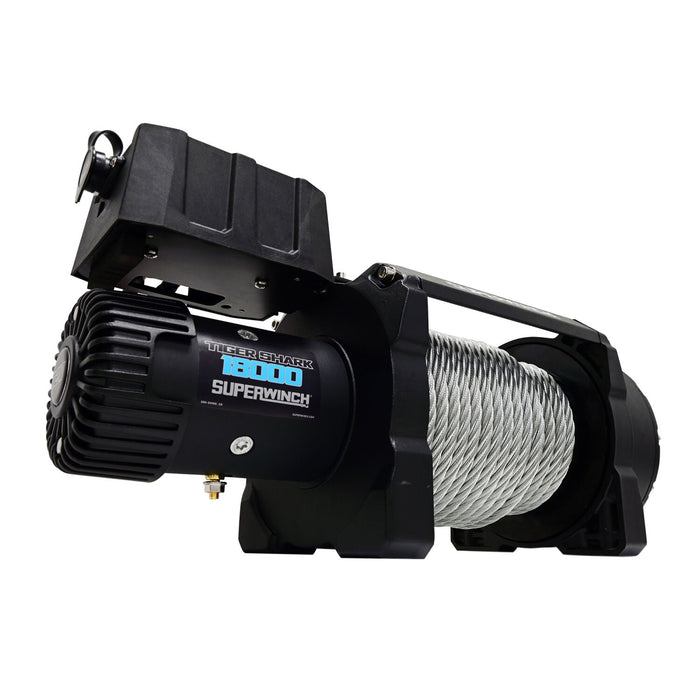

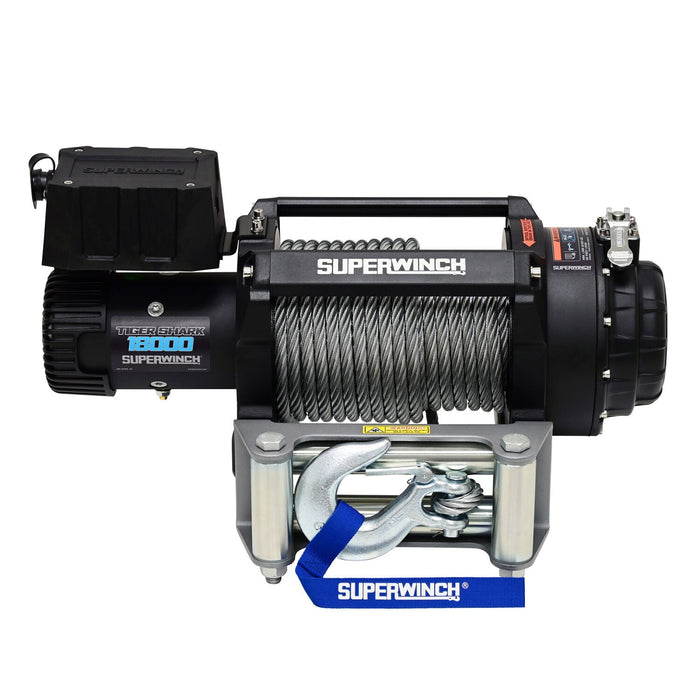

Superwinch Tiger Shark 18000 Winch | 18,000 lb, 12V DC | P/N 1518000

The Tiger Shark 18000 is a 12V DC electric winch with 18,000 lb capacity and a 6.8 HP series wound motor, intended for higher GVW vehicles, trailers and roll-off container applications. It has an automatic cone brake and a Kick-N-Flip freespool, and is offered with steel wire rope or synthetic rope.

Features

• 18,000 lbs. capacity
• 6.8 HP motor
• 3-Stage planetary gearing with 345:1 ratio
• Automatic cone brake
• 4-way stainless steel roller fairlead (wire rope)
• Heat insulated first layer

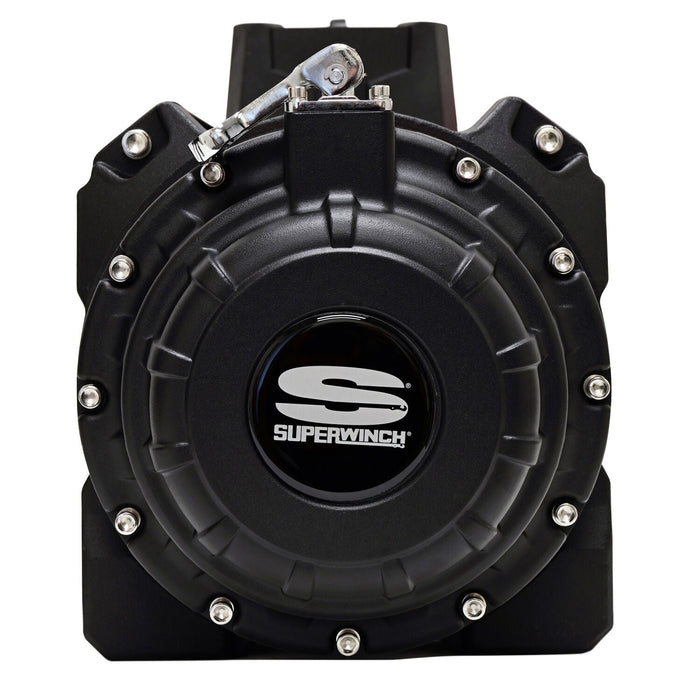

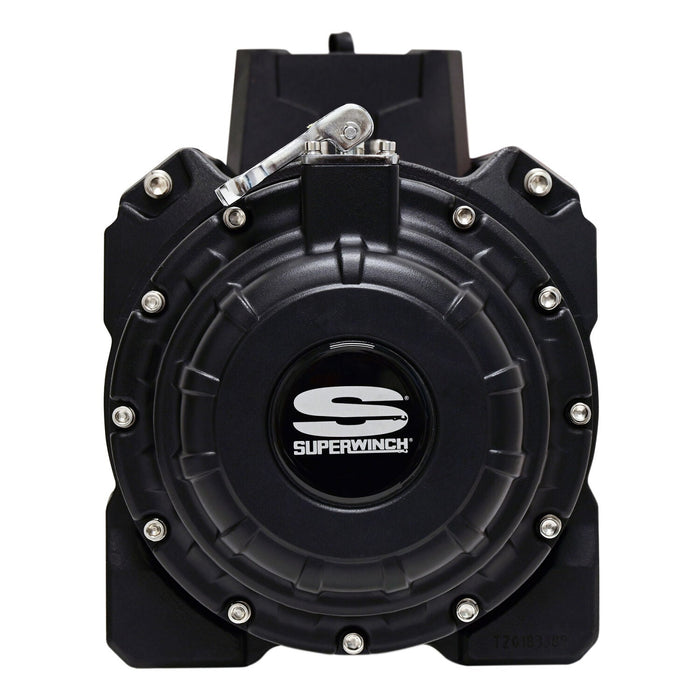

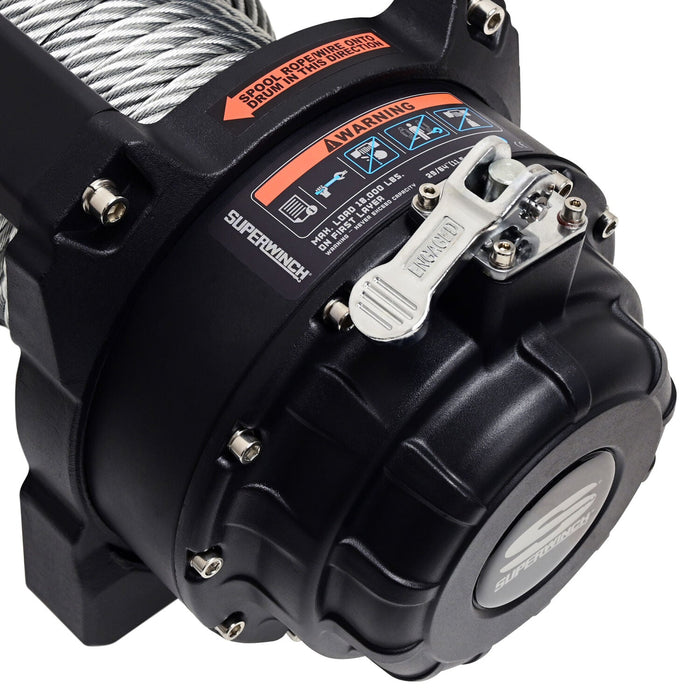

• Kick-N-Flip style freespool allows hand and foot operation

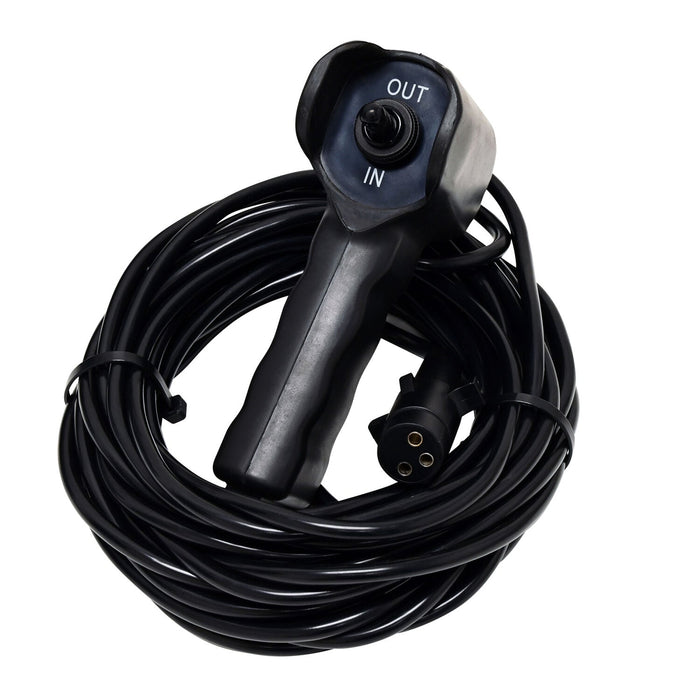

• 30 ft. handheld wired remote control
• Optional wireless remote control - sold separately (part no. 2277)
• Heavy-duty, clevis pinned, latched hook

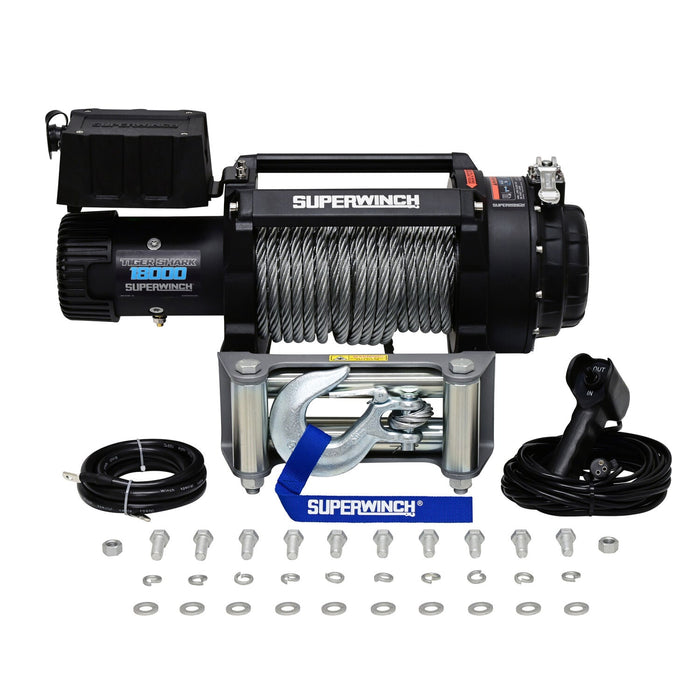

• Includes mounting hardware
• Textured black finish

Specifications

• Winch Type: Electric
• Voltage: 12V DC

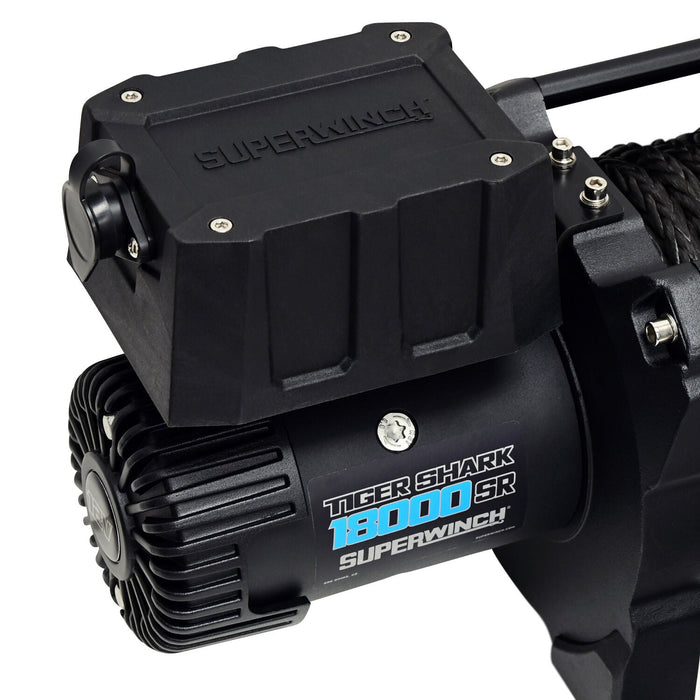

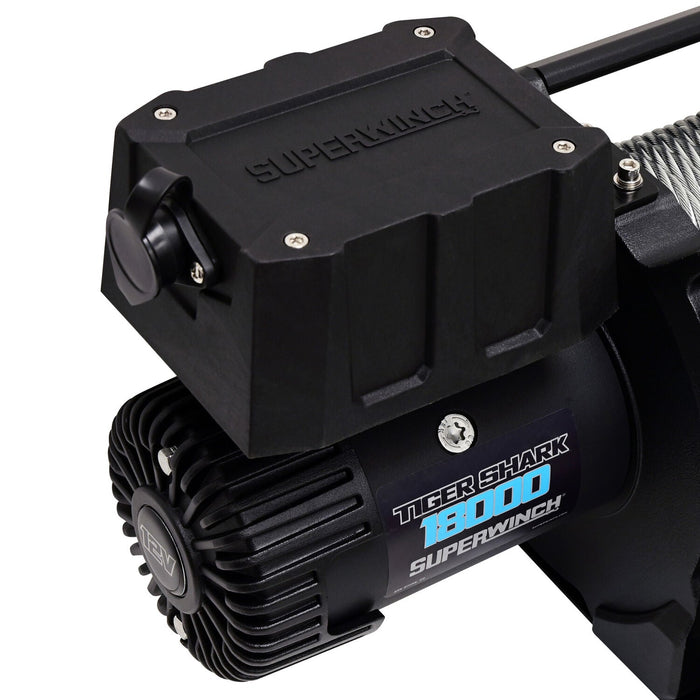

• Motor: Series wound 6.8 HP/5.0KW, 12V DC
• Gear System: 3-stage planetary
• Gear Ratio: 345:1

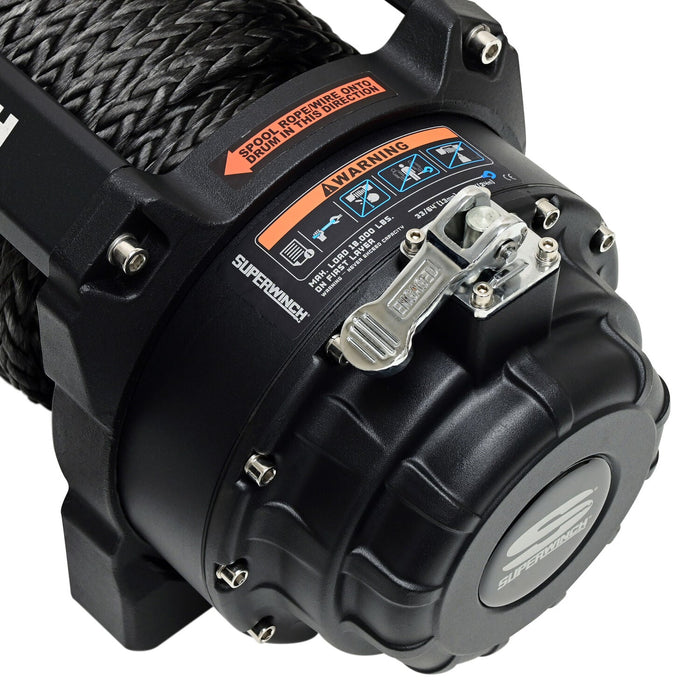

• Clutch: Kick-n-flip
• Brake System: Automatic cone brake

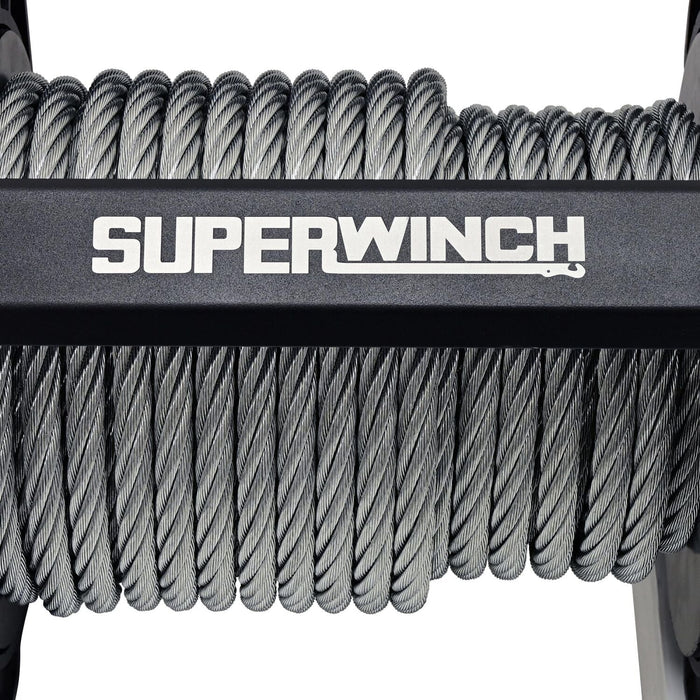

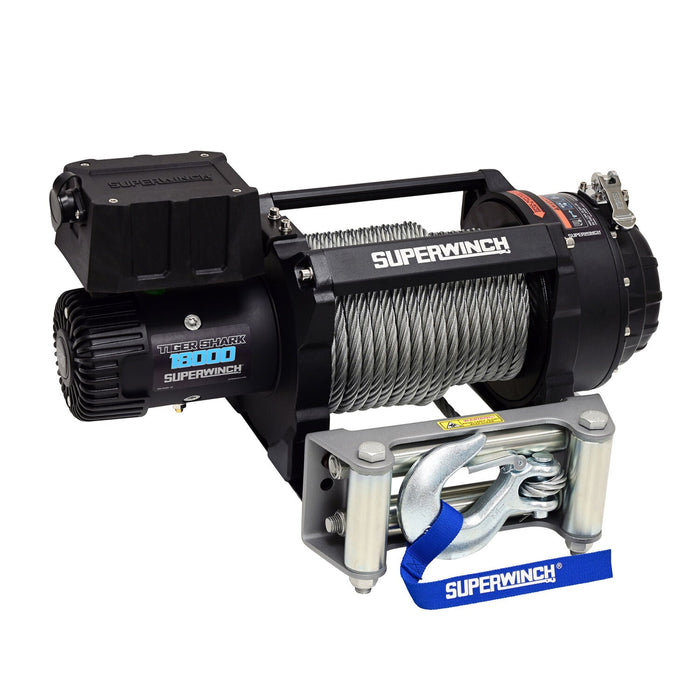

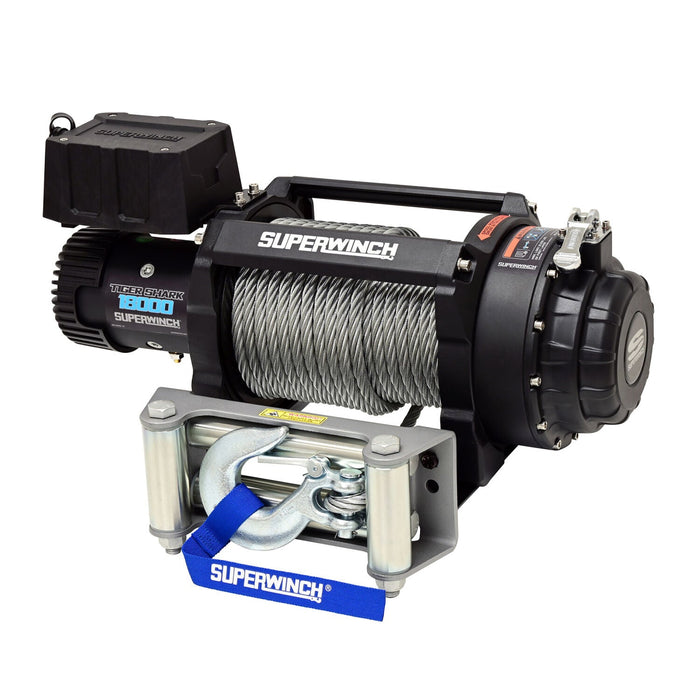

• Rope Material (Steel Wire Rope Black): Steel Wire

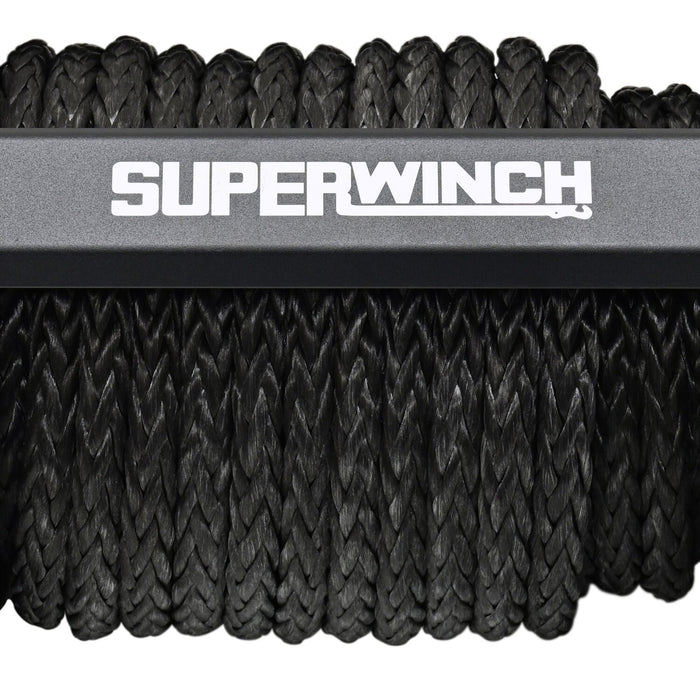

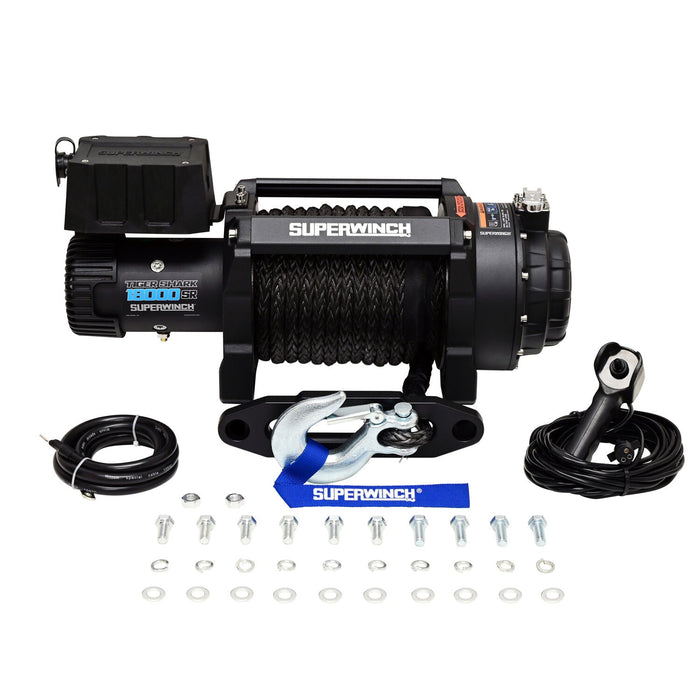

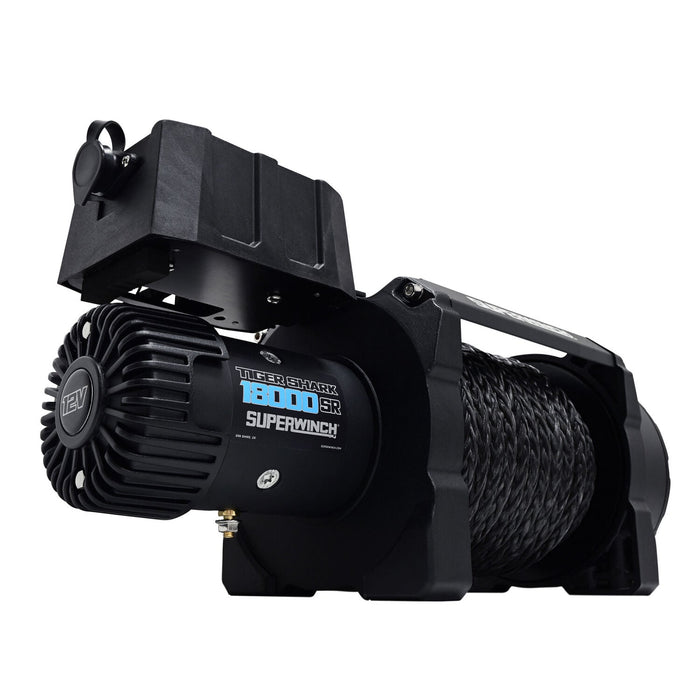

• Rope Material (Synthetic Rope Black): Synthetic
• Rope Length (Steel Wire Rope Black): 29/64 in x 85 ft (11.5mm x 26m)
• Rope Length (Synthetic Rope Black): 33/64 in x 79 ft (13mm x 24m)
• Fairlead (Steel Wire Rope Black): Stainless Steel 4-Way Roller
• Fairlead (Synthetic Rope Black): Aluminum hawse
• Remote Type: Wire

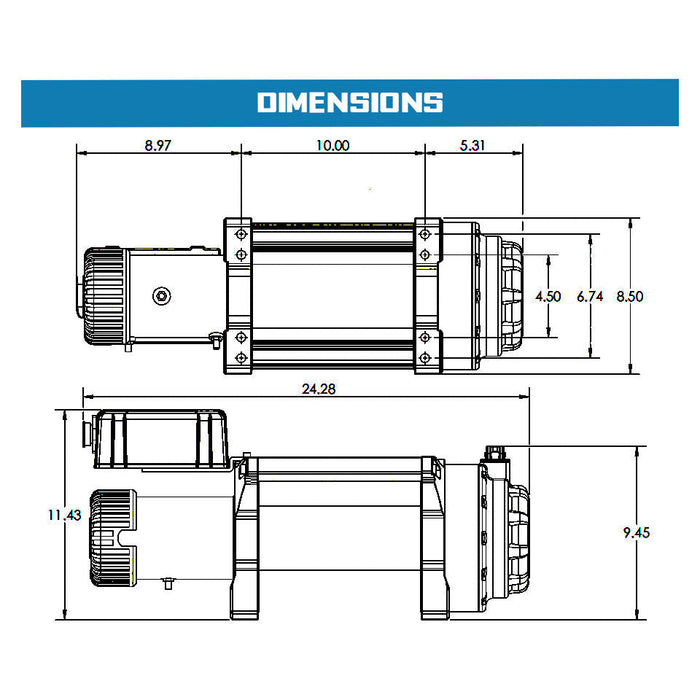

• Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm) + 10in x 6.7in (254mm x 172mm)
• Color: Black
• Drum: Durable fully welded steel drum
• Winch Hook: Heavy-Duty, Clevis Pinned Latched
• Weight (Steel Wire Rope Black): 132 lb
• Weight (Synthetic Rope Black): 106 lb
• Width: 12 in
• Height: 16 in

Warranty

Limited Lifetime Mechanical, Limited 7 Year Electrical warranty.

Part Numbers

• MPN 1518000
• MPN 1518001
