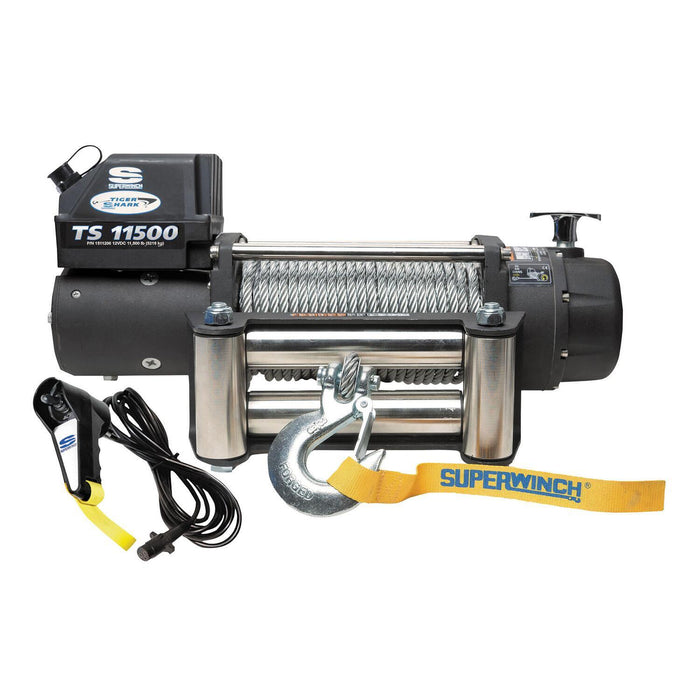

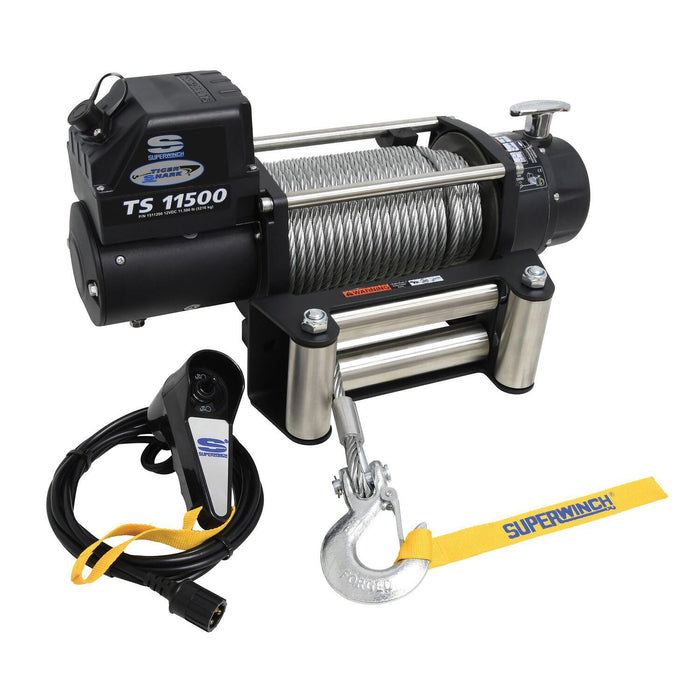

Superwinch Tiger Shark 11500 Winch | 11,500 lb, 12V DC | P/N 1511200

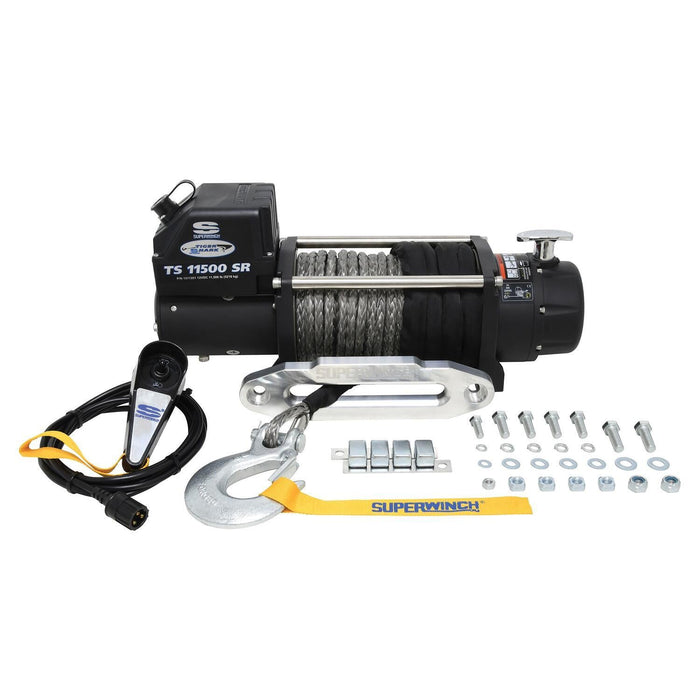

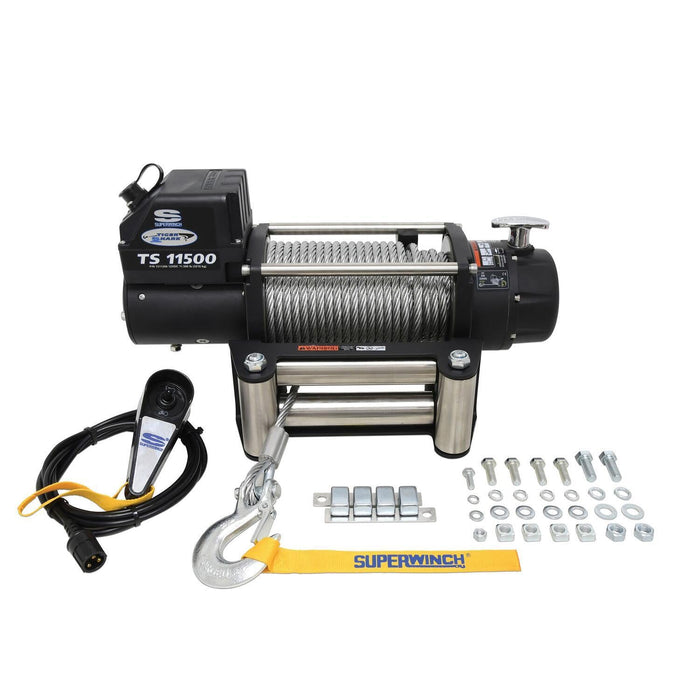

The Tiger Shark 11500 is a 12V DC electric winch with 11,500 lb capacity and a 6.0 HP series wound motor. It uses 3-stage planetary gearing and an automatic load holding brake, and has a pull and turn freespool. It is offered with steel wire rope or synthetic rope.

Features

• 11,500 lbs. capacity
• 6.0 HP motor
• 3-Stage planetary gearing with 218:1 ratio

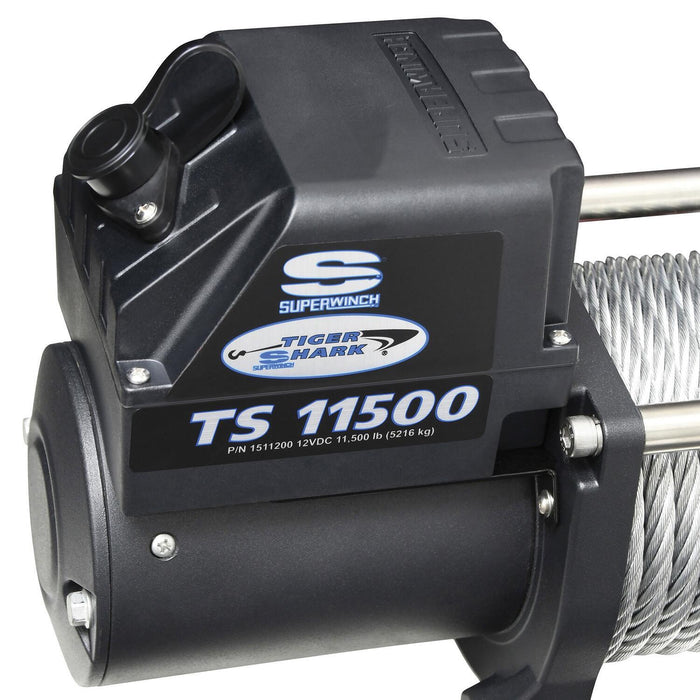

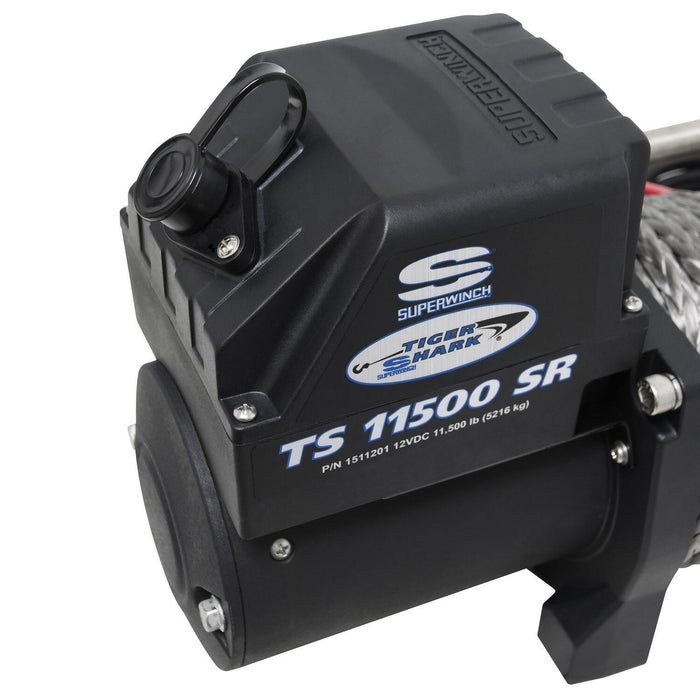

• Weather sealed solenoid
• Heat insulated first layer

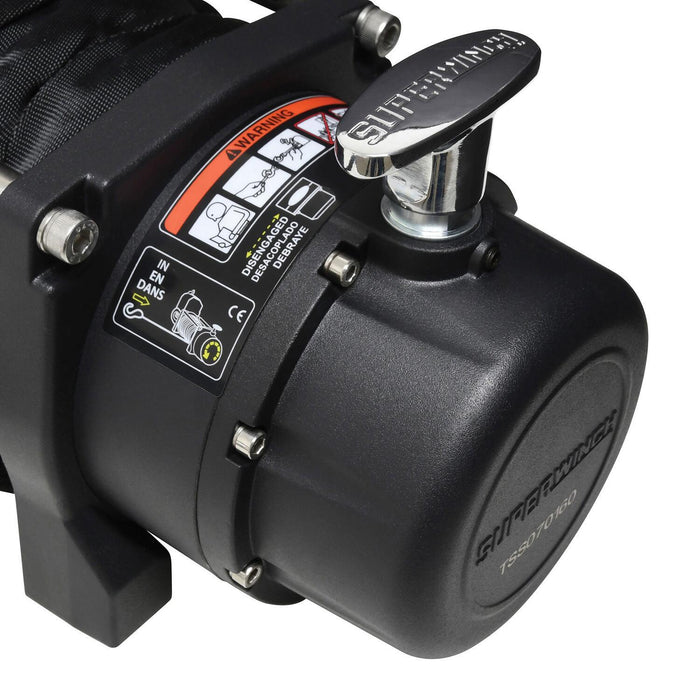

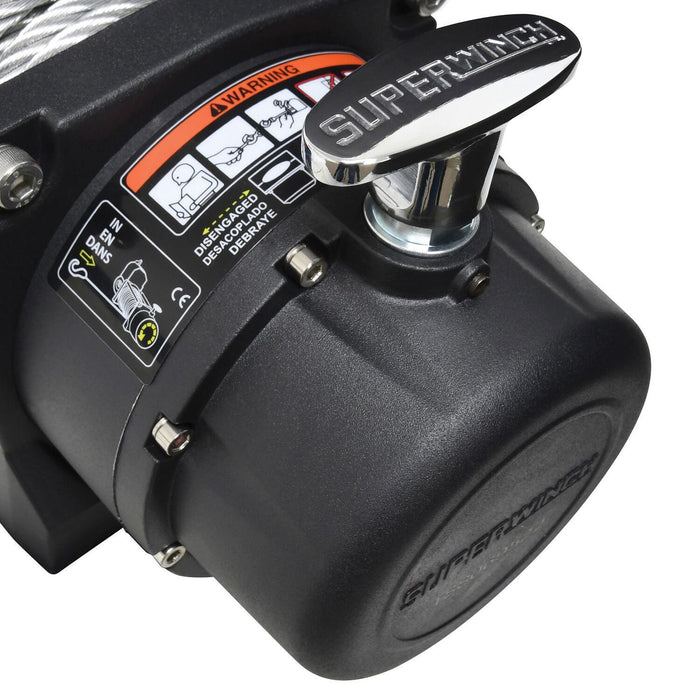

• Ergonomic pull and turn freespool
• 84 ft. - 3/8 in. wire rope

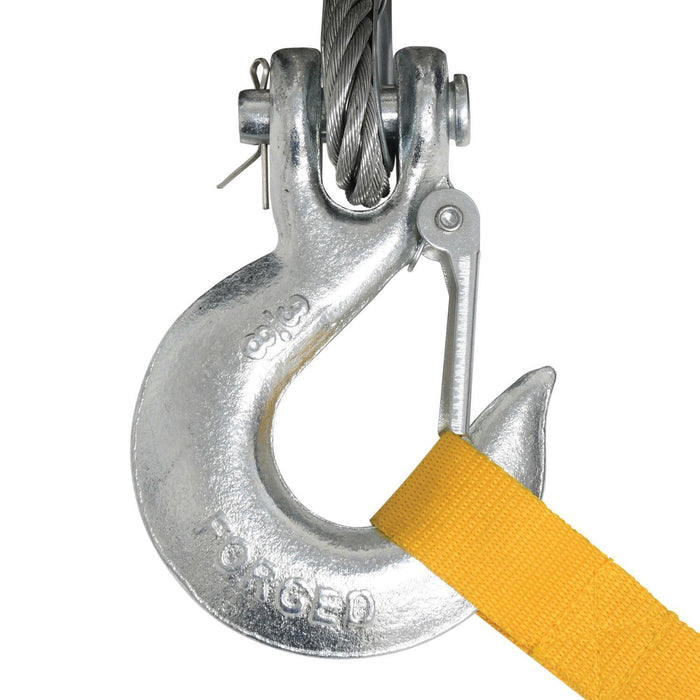

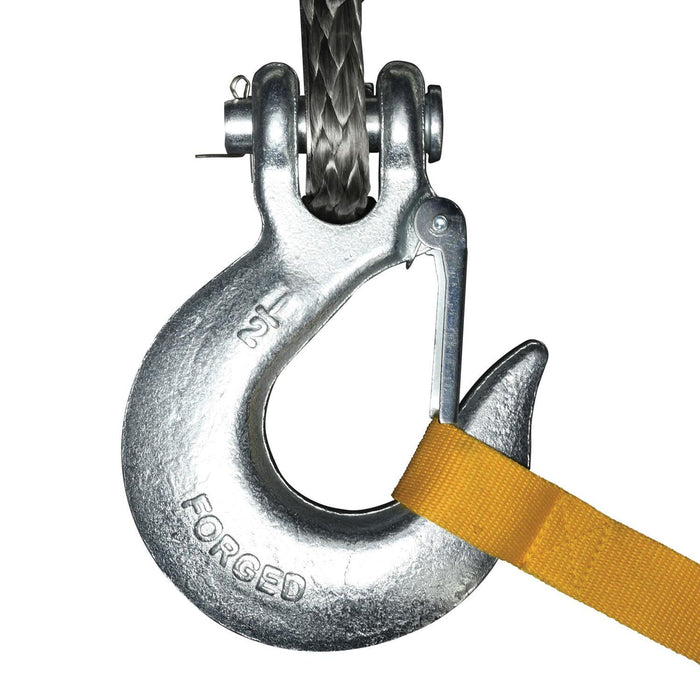

• Heavy-duty, clevis pinned, latched hook
• Stainless steel 4-way roller fairlead (wire rope)
• Rugged handheld remote control
• Automatic load holding brake design

Specifications

• Winch Type: Electric
• Voltage: 12V DC
• Motor: Series wound 6.0 HP/4.4KW, 12V DC
• Gear System: 3-stage planetary
• Gear Ratio: 218:1
• Clutch: Ergonomic pull and turn
• Brake System: Mechanical, Automatic Load Holding

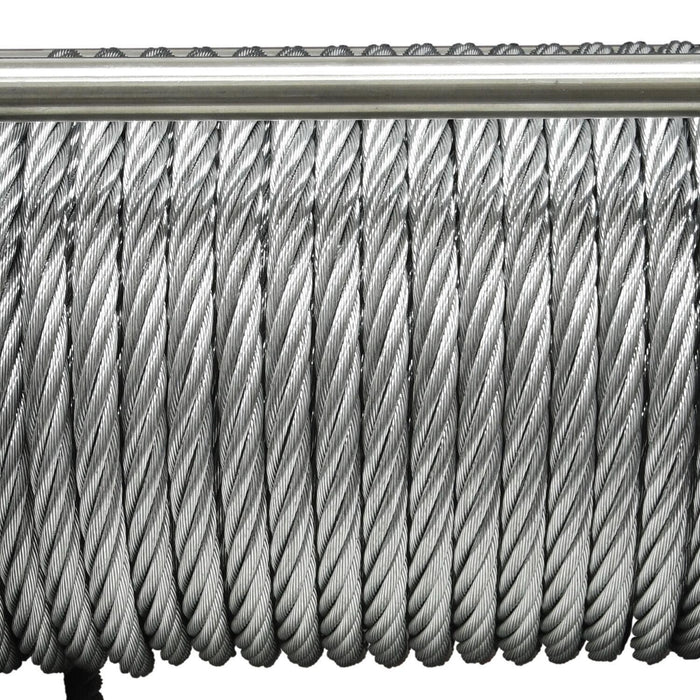

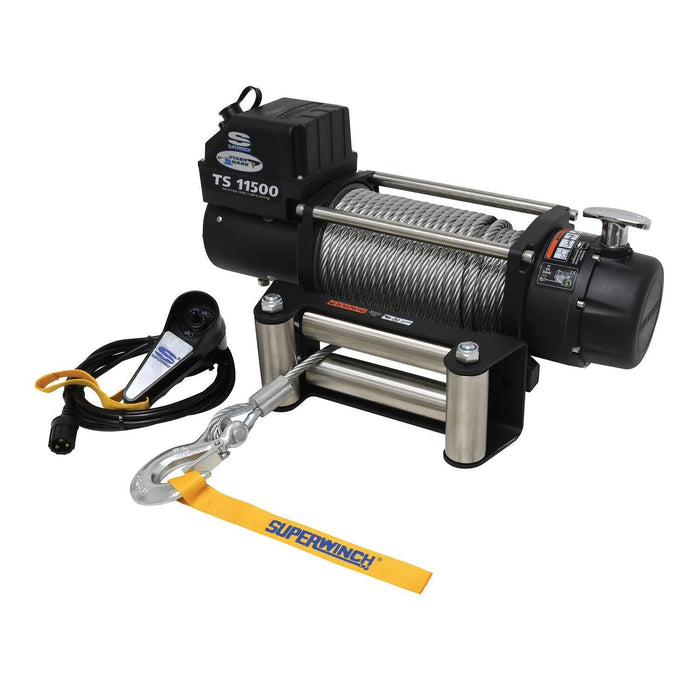

• Rope Material (Steel Wire Rope Black): Steel Wire

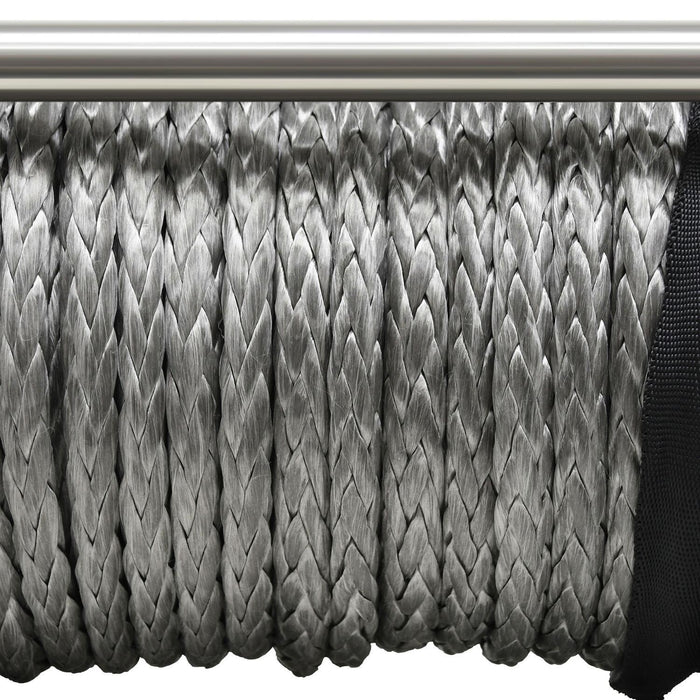

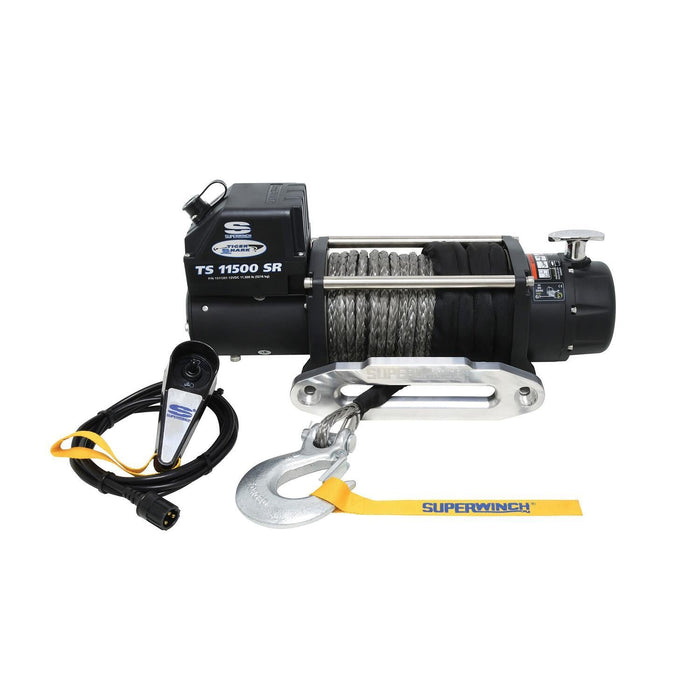

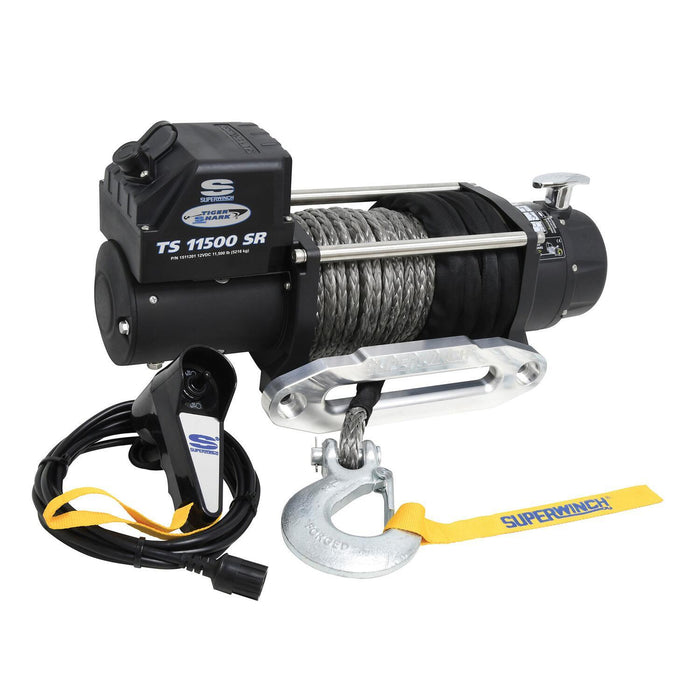

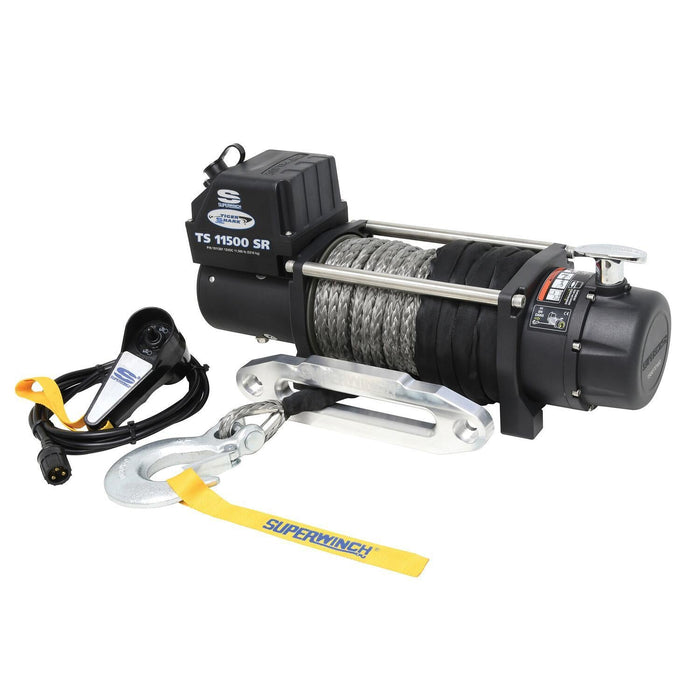

• Rope Material (Synthetic Rope Black): Synthetic
• Rope Length (Steel Wire Rope Black): 3/8 in x 84 ft (9.5mm x 25.6m)
• Rope Length (Synthetic Rope Black): 3/8 in x 80 ft (9.5mm x 24.3m)
• Fairlead (Steel Wire Rope Black): Stainless Steel 4-Way Roller
• Fairlead (Synthetic Rope Black): Aluminum hawse
• Remote Type: Wire
• Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
• Color: Black
• Drum: Durable fully welded steel drum
• Winch Hook: Heavy-Duty, Clevis Pinned Latched

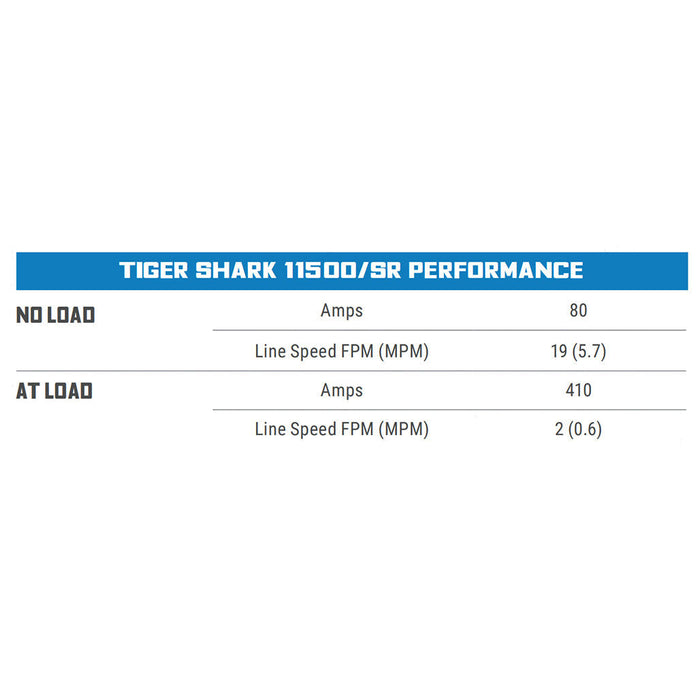

• Line Speed: 80 Amps Motor Draw/19 FPM (5.7 MPM)
• Weight (Steel Wire Rope Black): 86 lb
• Weight (Synthetic Rope Black): 63 lb

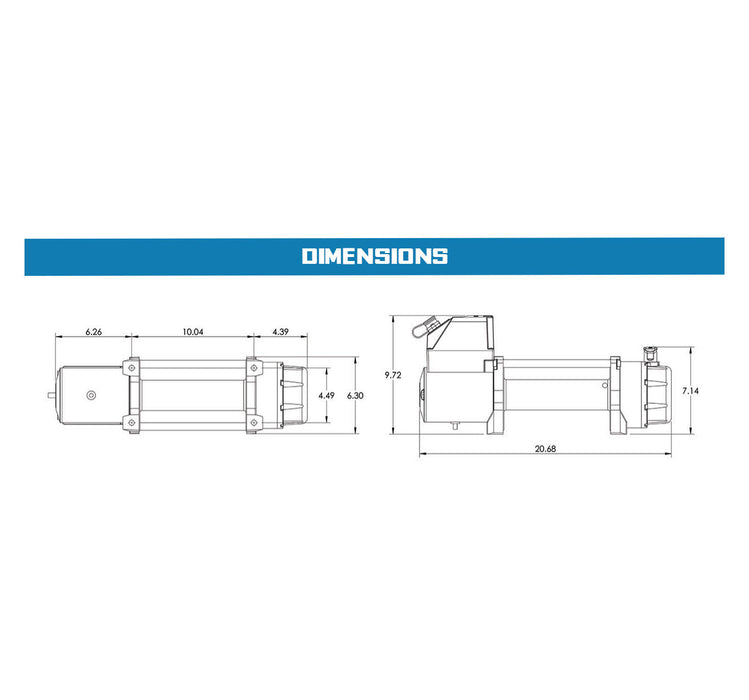

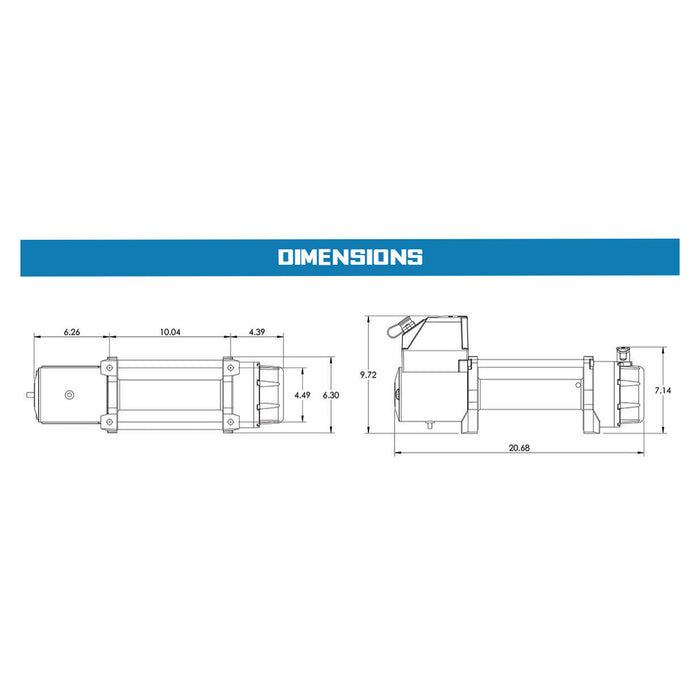

• Width: 12 in
• Height: 12 in

Part Numbers

• MPN 1511200
• MPN 1511201
