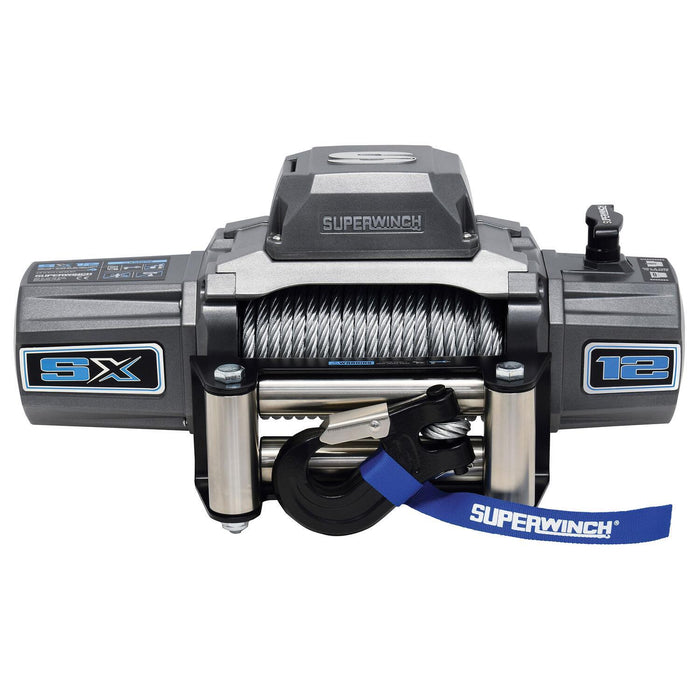

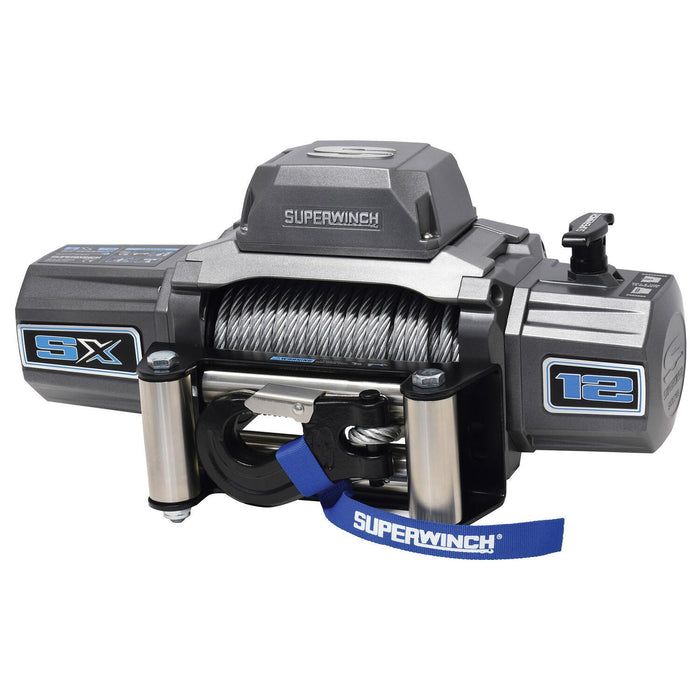

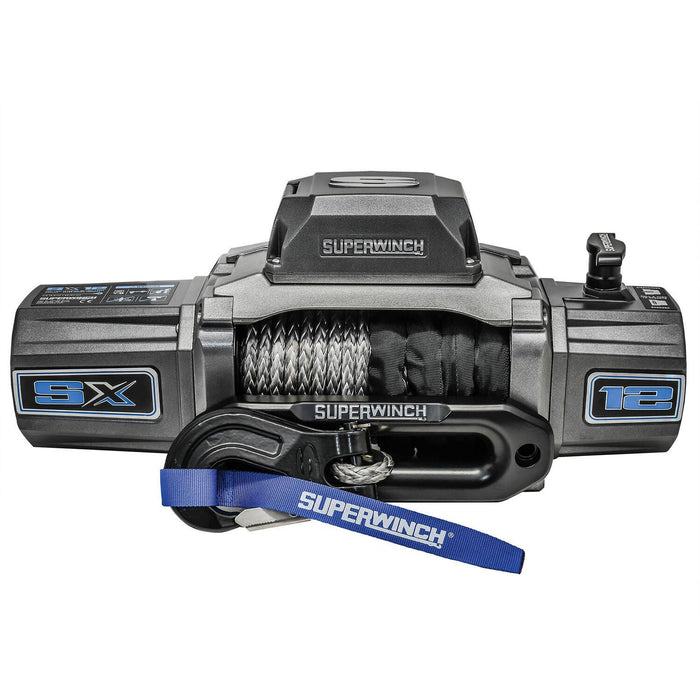

Superwinch SX12 Winch | 12,000 lb, 12V DC | P/N 1712200

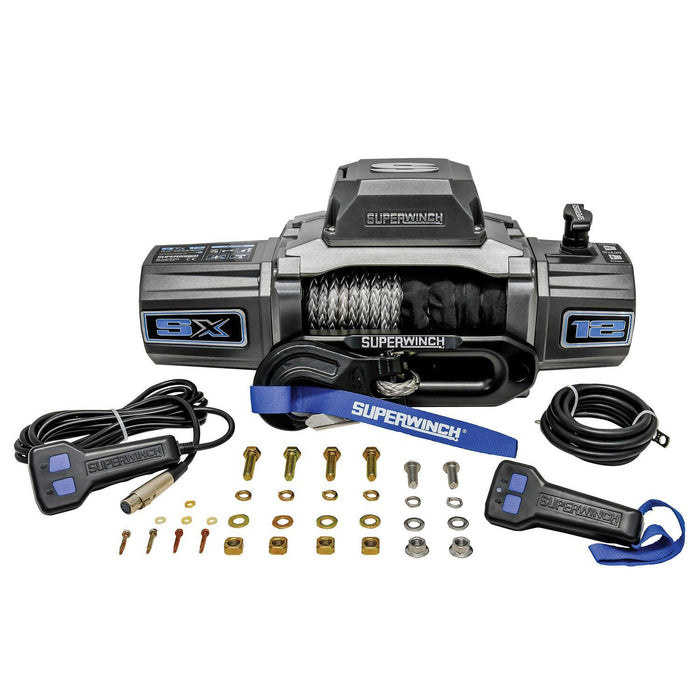

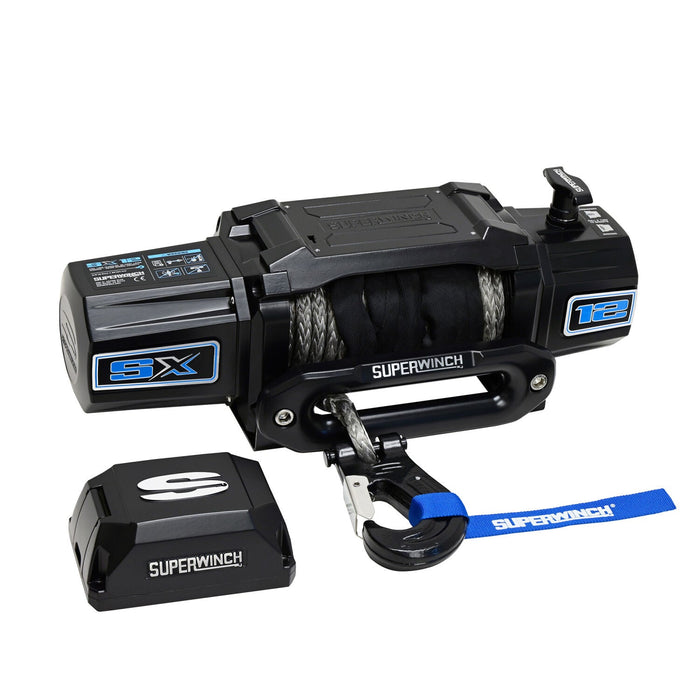

The SX12 is a 12V DC electric winch with 12,000 lb capacity and a 6.0 HP sealed motor. It is IP68 rated for dust and water, with a patented drum light, a relocatable die-cast aluminum control box and a lighted wired remote. It is offered with steel wire rope or synthetic rope.

Features

• 12,000 lbs. capacity
• 6.0 HP sealed motor
• 85' - 3/8" wire rope

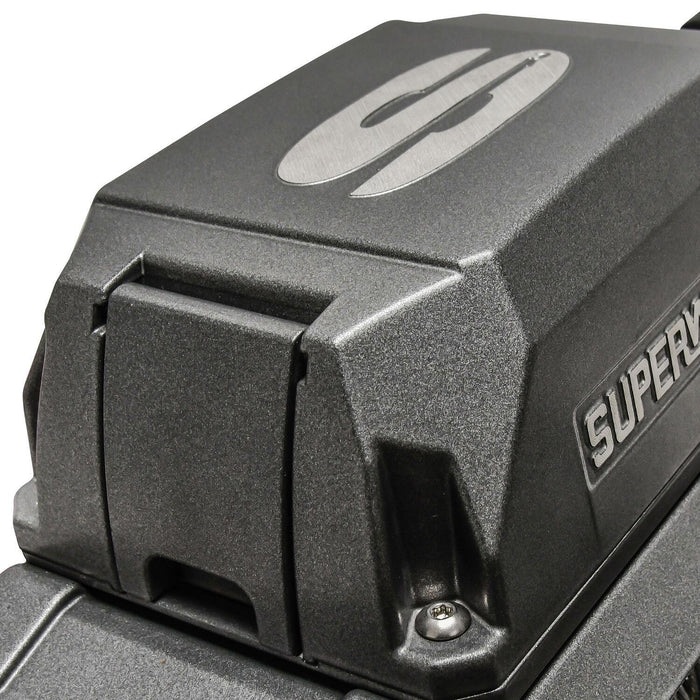

• Relocatable die-cast aluminum control box

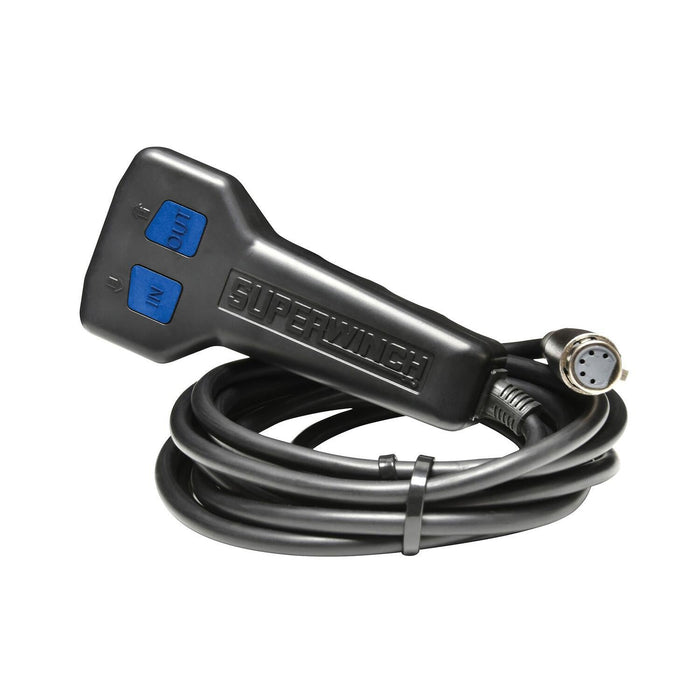

• 12' wired remote with integrated lithium-ION rechargeable LED flashlight

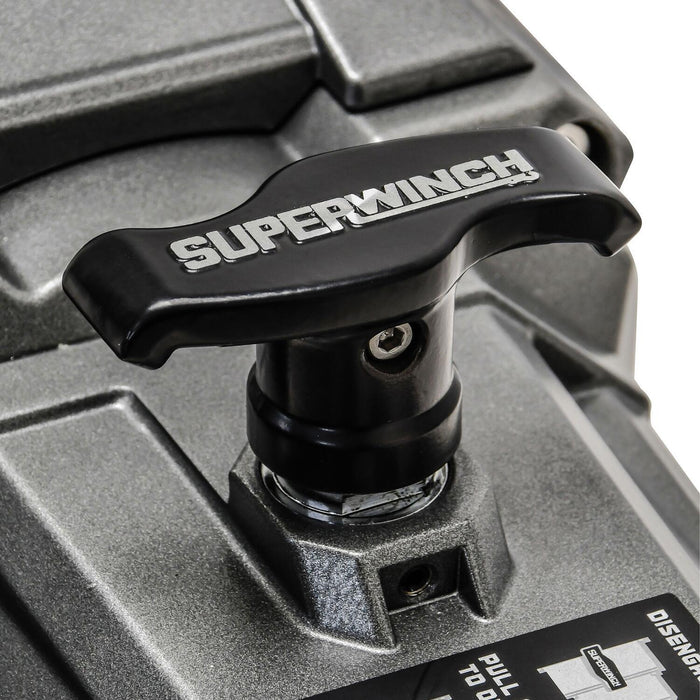

• Ergonomic pull-and-turn clutch handle
• Clockable gear box
• 3-stage planetary gearing with 231:1 ratio

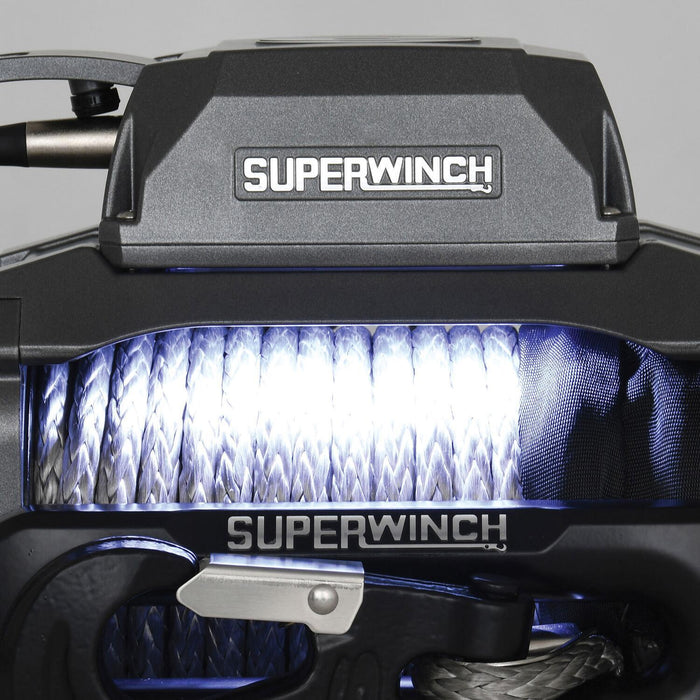

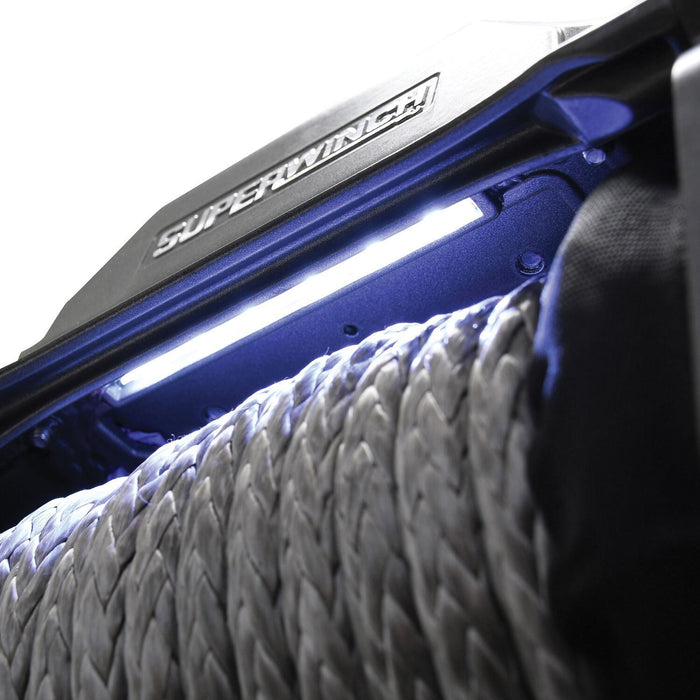

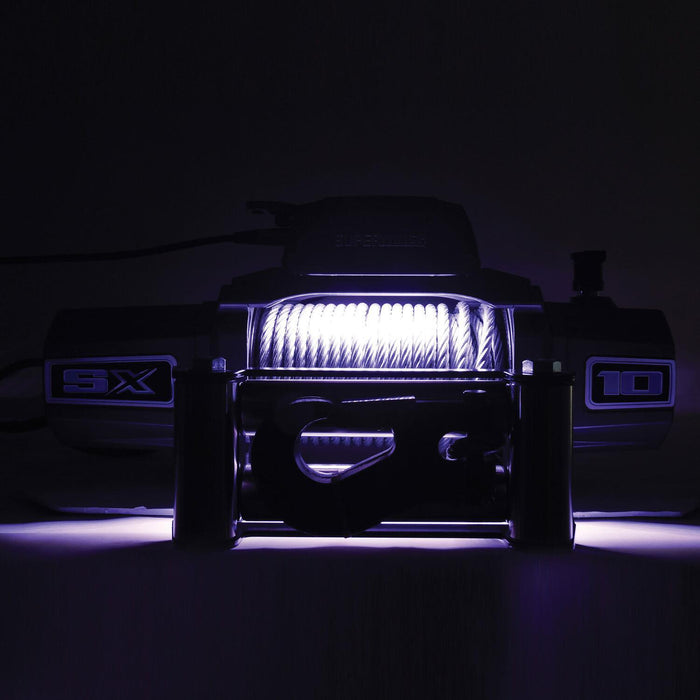

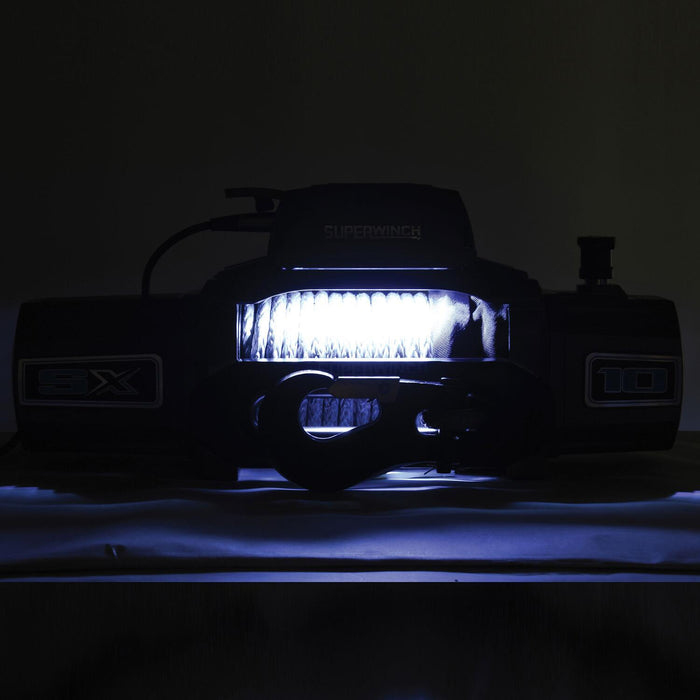

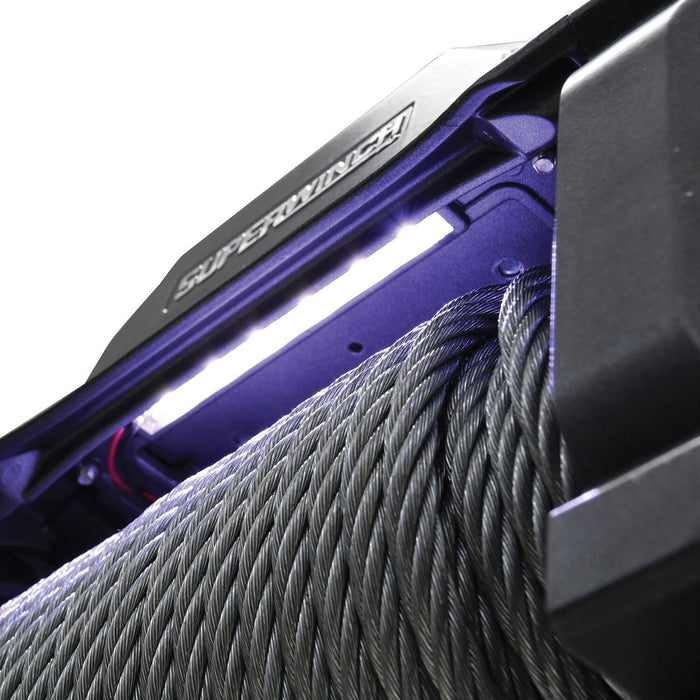

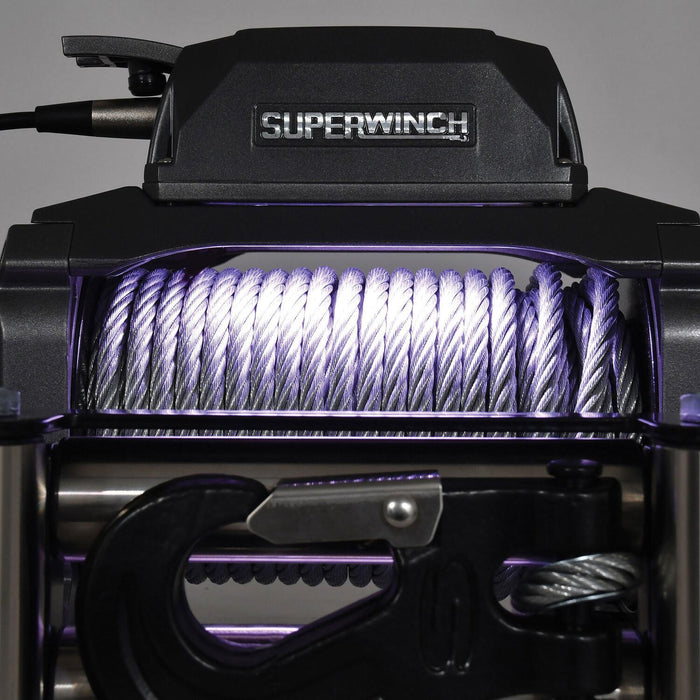

• Patented drum light
• Drum diameter measures 2.5"

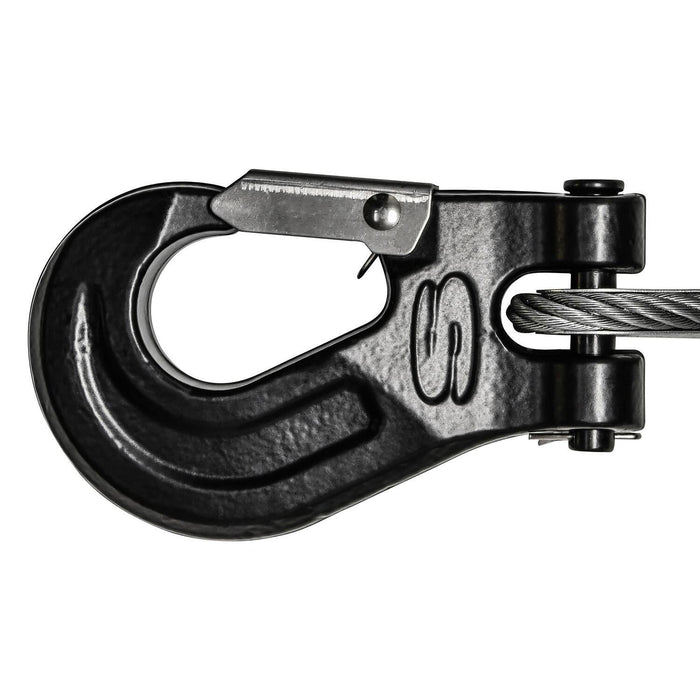

• Heavy duty clevis winch hook
• Stainless steel roller fairlead
• 100% full load holding automatic mechanical brake

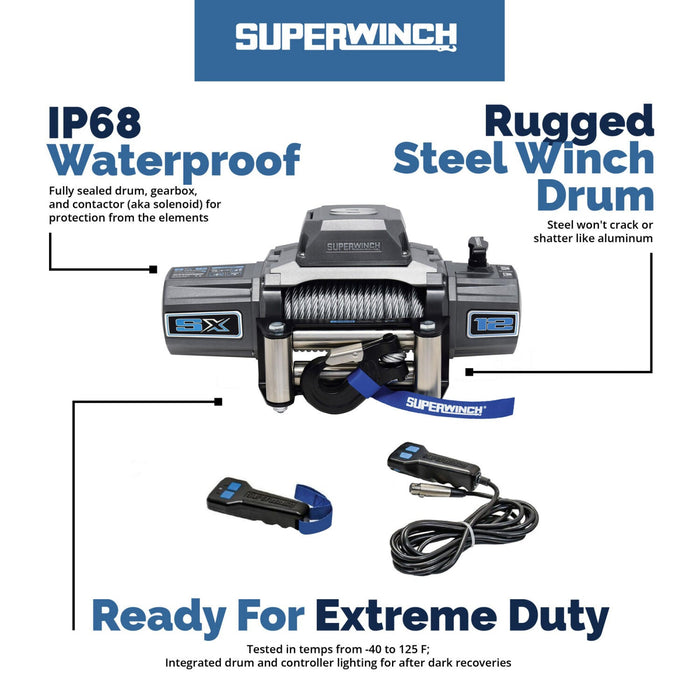

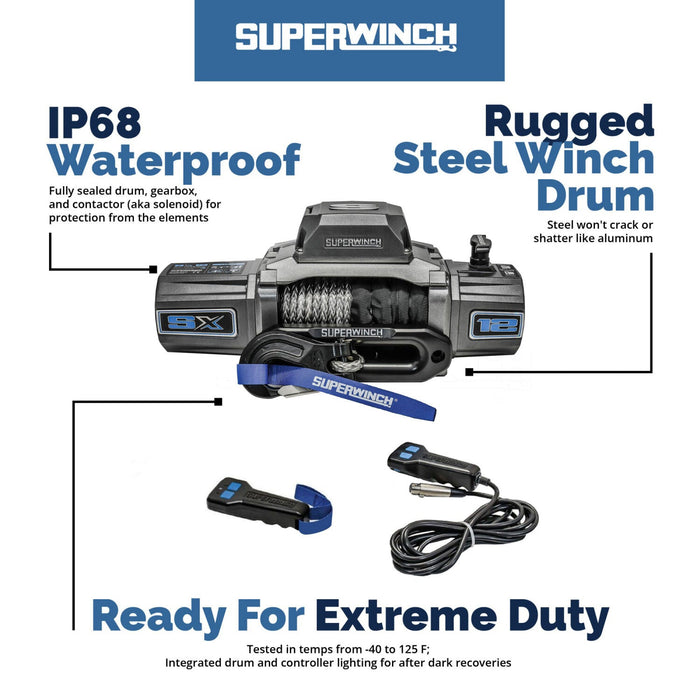

• IP68-rated waterproof and dustproof
• Durable metallic graphite powder coat finish

Specifications

• Winch Type: Electric
• Voltage: 12V DC
• Motor: 6.0 HP, 12V DC
• Gear System: 3-stage planetary
• Gear Ratio: 231:1

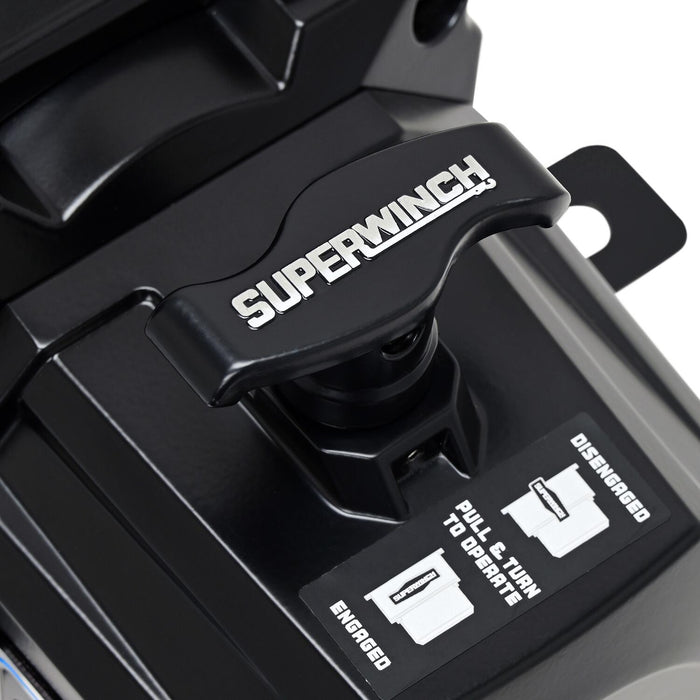

• Clutch: Pull and turn clutch handle
• Brake System: 100% Full-load holding automatic mechanical brake

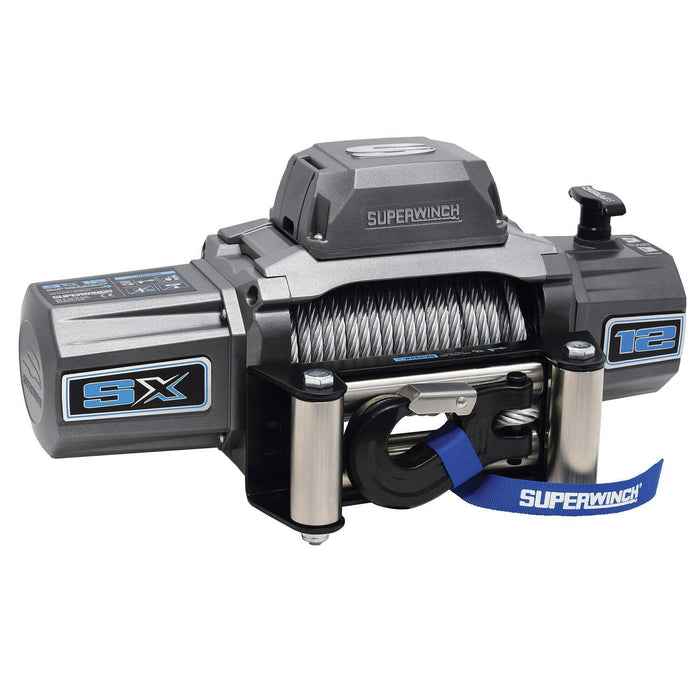

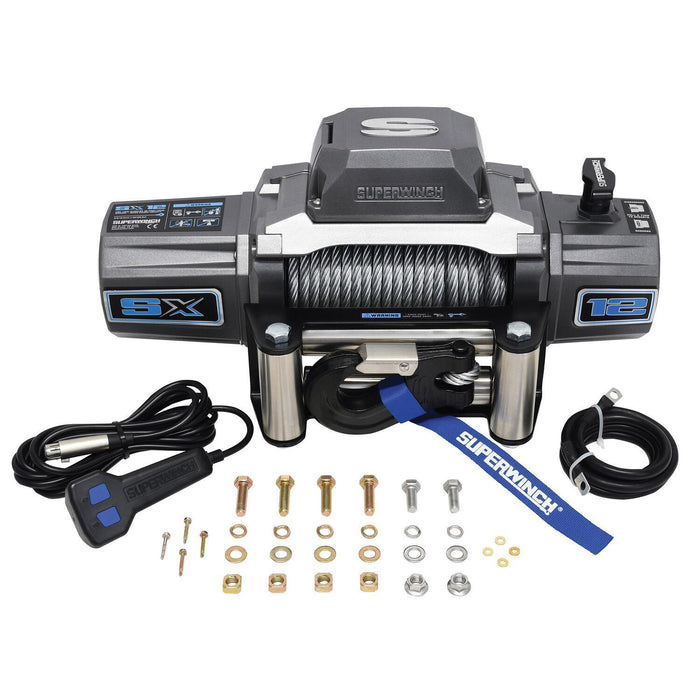

• Rope Material (Steel Wire Rope Graphite): Steel Wire

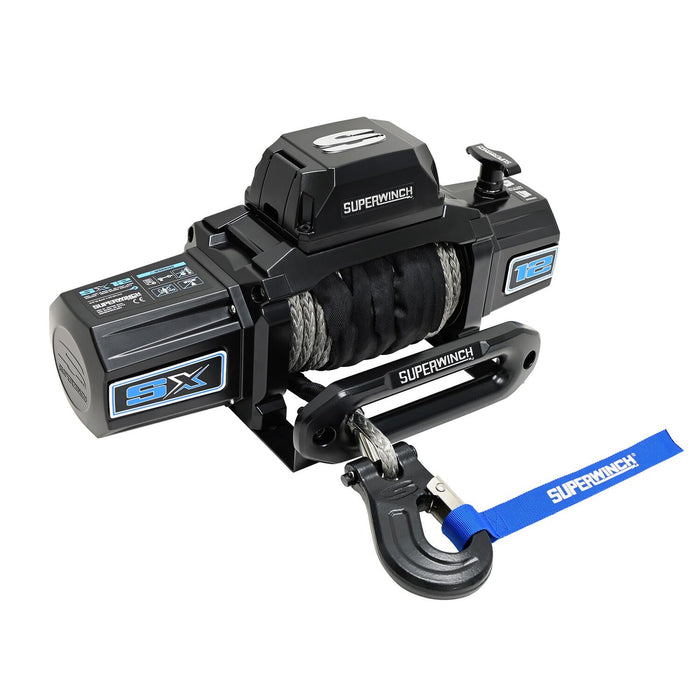

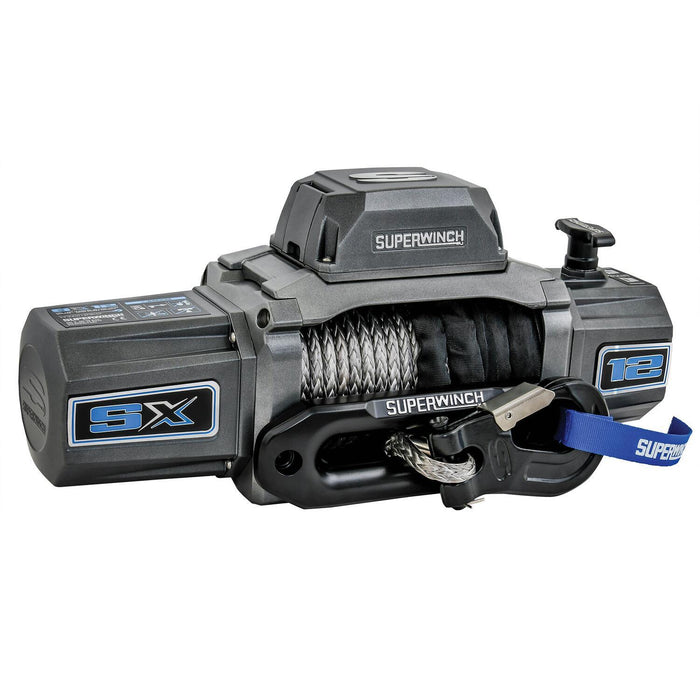

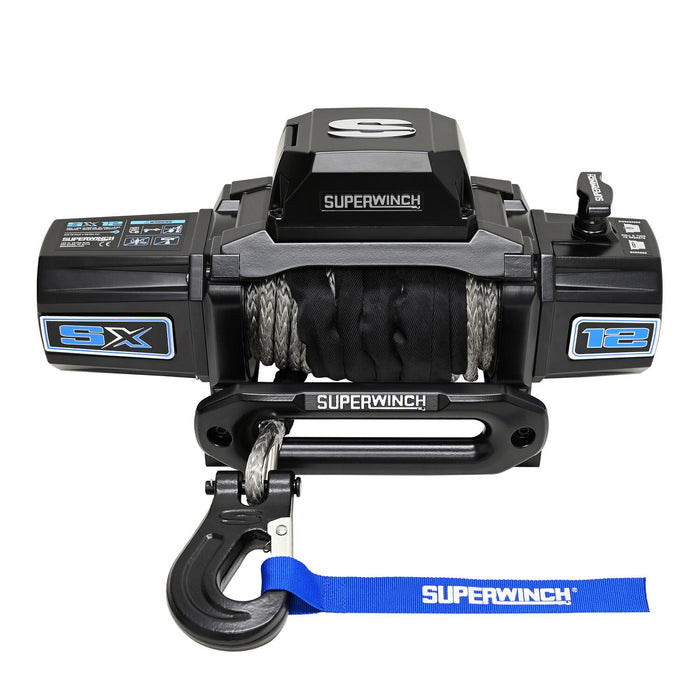

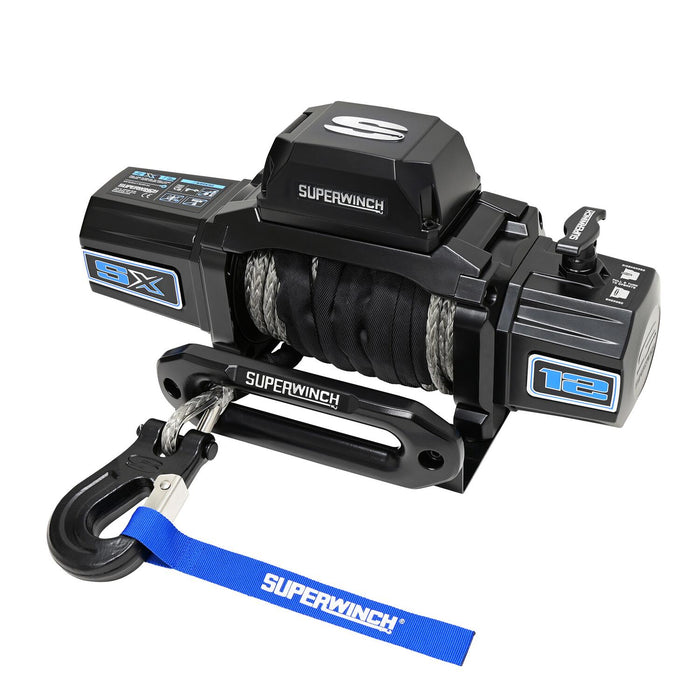

• Rope Material (Synthetic Rope Graphite, Synthetic Rope Black): Synthetic
• Rope Length (Steel Wire Rope Graphite): 3/8 in x 85 ft (9.5mm x 26m)
• Rope Length (Synthetic Rope Graphite, Synthetic Rope Black): 3/8 in x 80 ft (9.5mm x 24.3m)
• Fairlead (Steel Wire Rope Graphite): Stainless Steel 4-Way Roller
• Fairlead (Synthetic Rope Graphite, Synthetic Rope Black): Aluminum hawse
• Remote Type (Steel Wire Rope Graphite): Wire

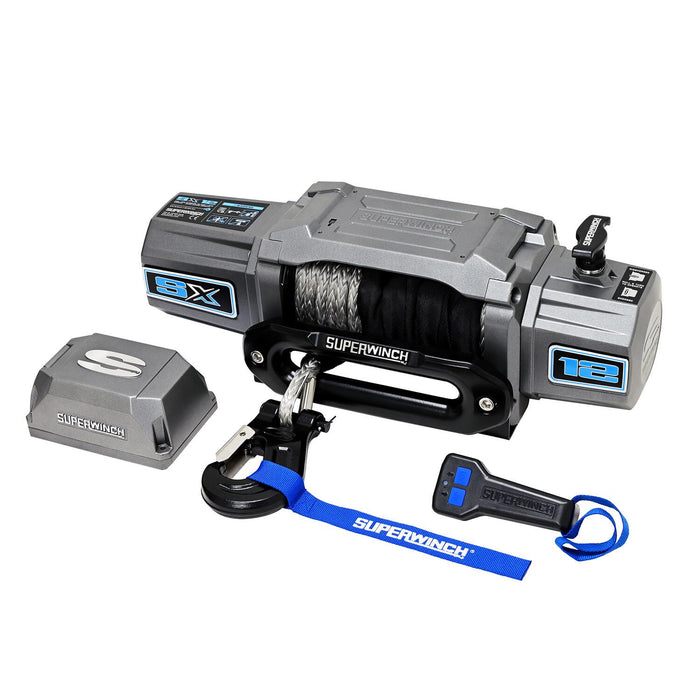

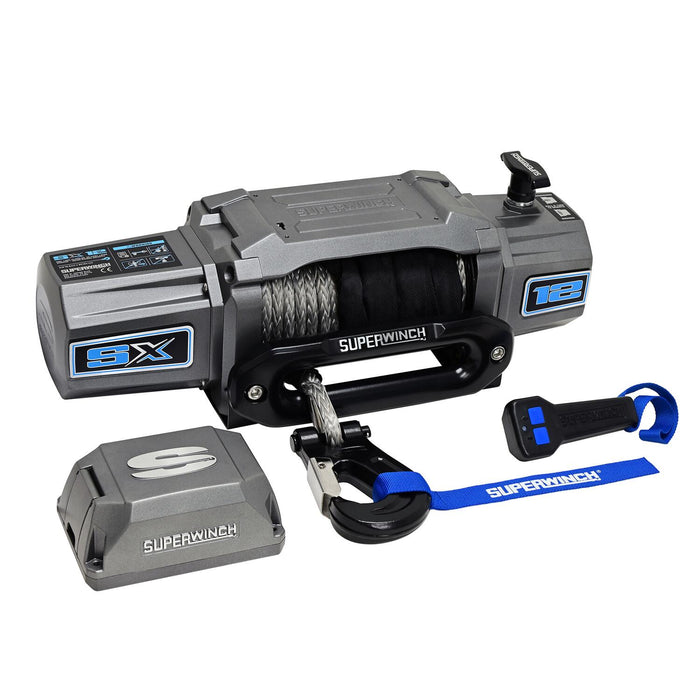

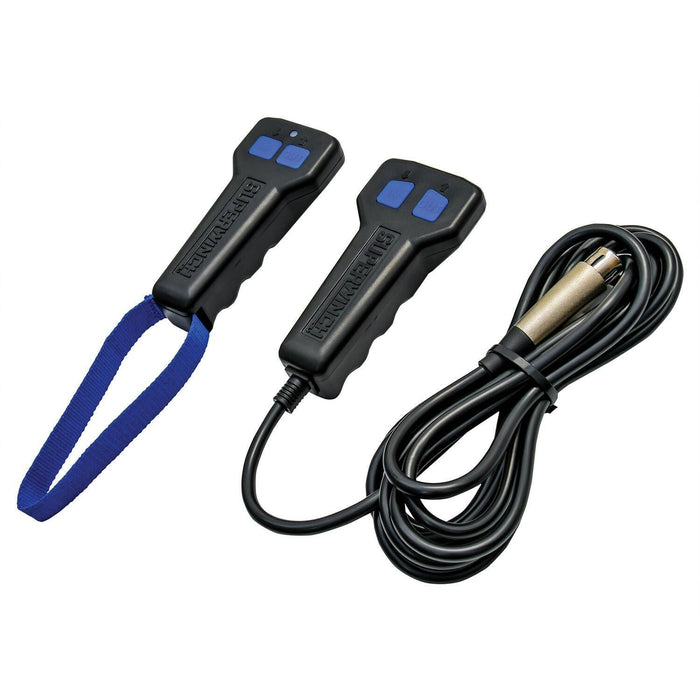

• Remote Type (Synthetic Rope Graphite, Synthetic Rope Black): Wire and Wireless
• IP Rating: IP68 Waterproof and Dustproof

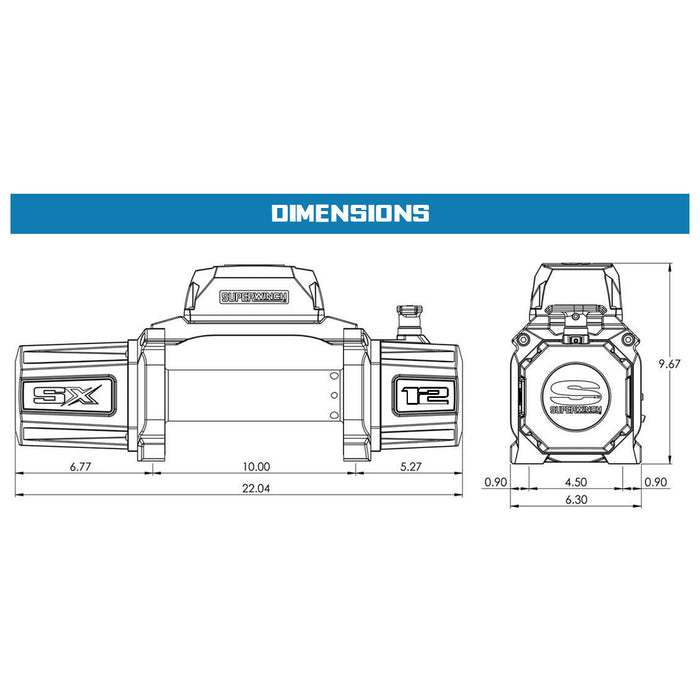

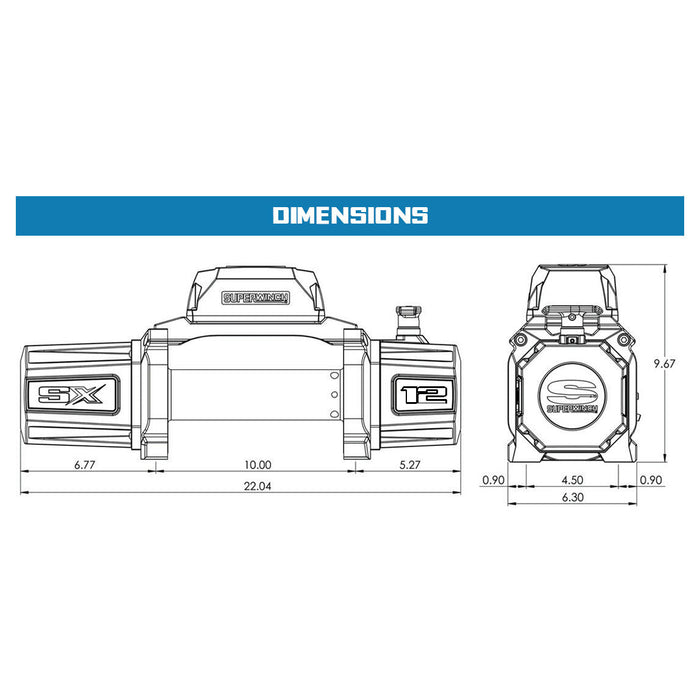

• Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
• Color (Steel Wire Rope Graphite, Synthetic Rope Graphite): Graphite
• Color (Synthetic Rope Black): Black

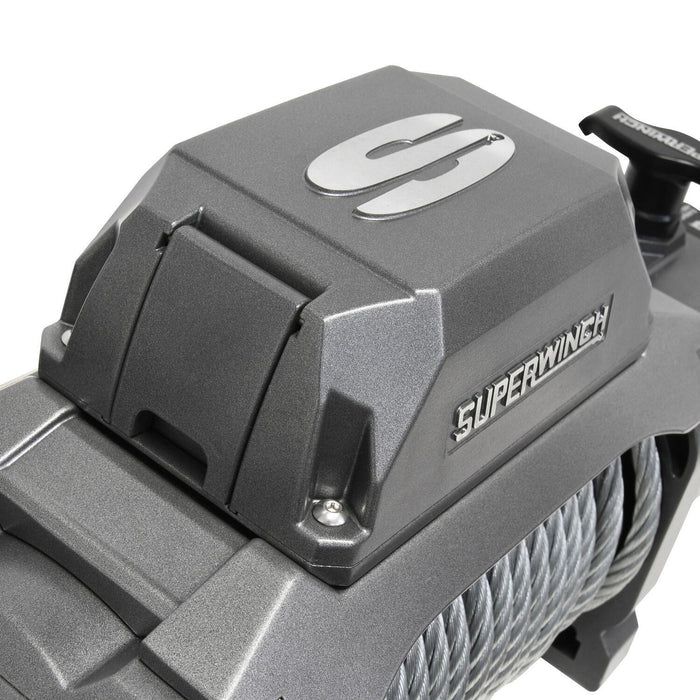

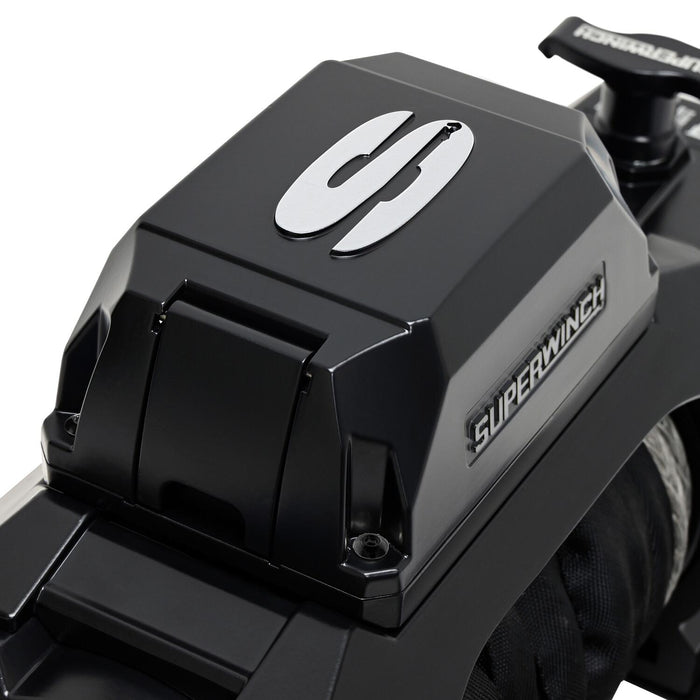

• Control Box: Relocatable Die-Cast Aluminum
• Task Lighting: Patented drum light
• Drum: Durable fully welded steel drum

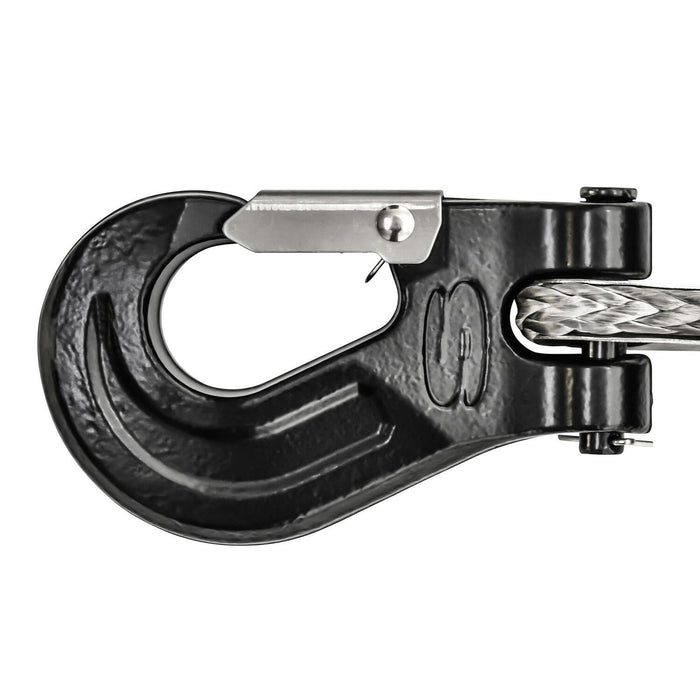

• Winch Hook: Heavy-Duty, Clevis Pinned Latched

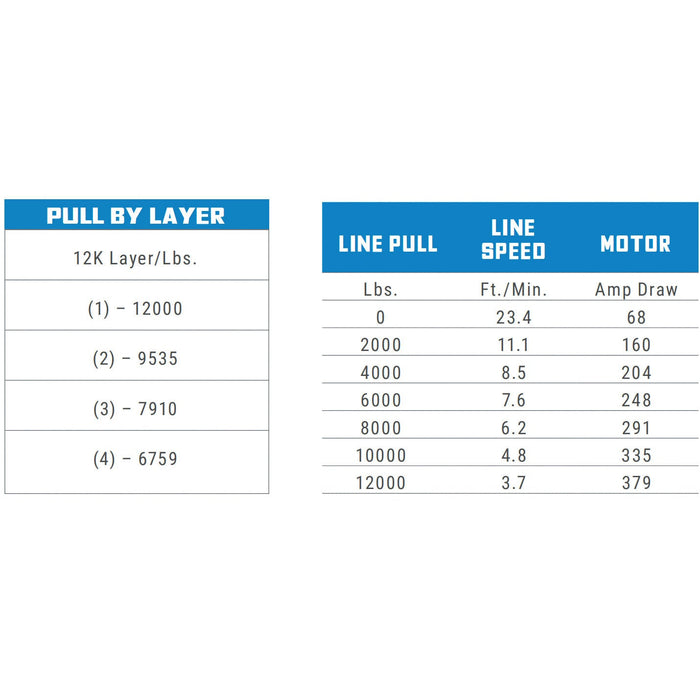

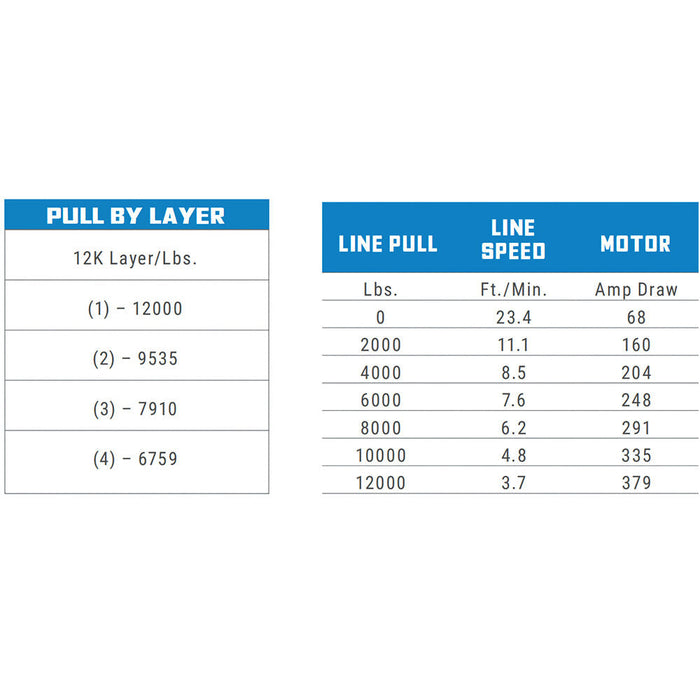

• Line Speed (Steel Wire Rope Graphite, Synthetic Rope Graphite): 68 Amps Motor Draw/23.4 FPM (7.13 MPM)
• Line Speed (Synthetic Rope Black): 0 lb. - 68 Amps Motor Draw/23.4 FPM | 12000 lbs. - 379 Amps Motor Draw/3.7 FPM
• Weight (Steel Wire Rope Graphite): 90 lb
• Weight (Synthetic Rope Graphite, Synthetic Rope Black): 62 lb
• Width: 13 in
• Height: 12 in
• Mounting Type (Synthetic Rope Black): Bolt-On
• Mounting Hardware Included (Synthetic Rope Black): Yes

Part Numbers

• MPN 1712200
• MPN 1712201
• MPN 1712204
