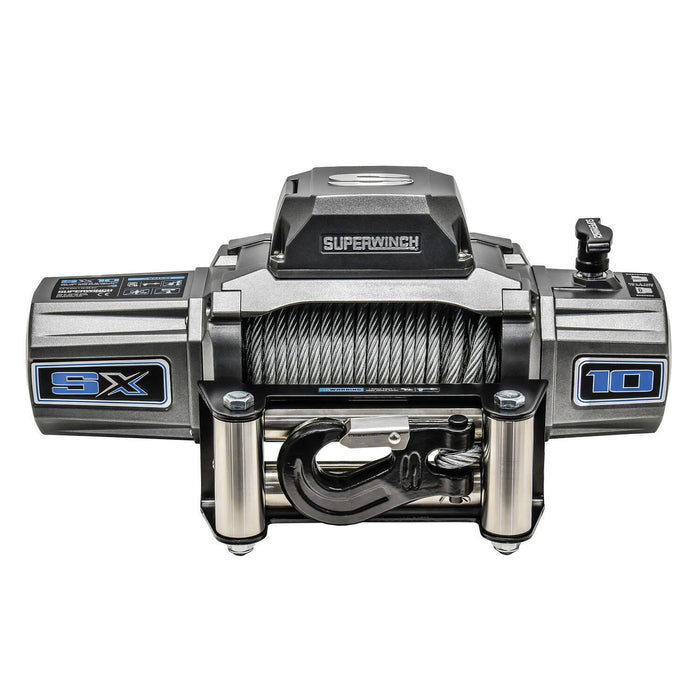

Superwinch SX10 Winch | 10,000 lb, 12V DC | P/N 1710200

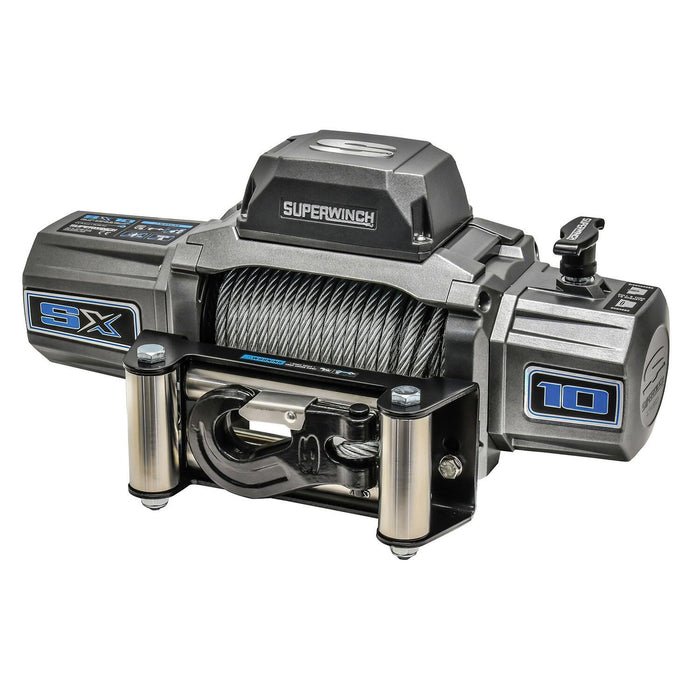

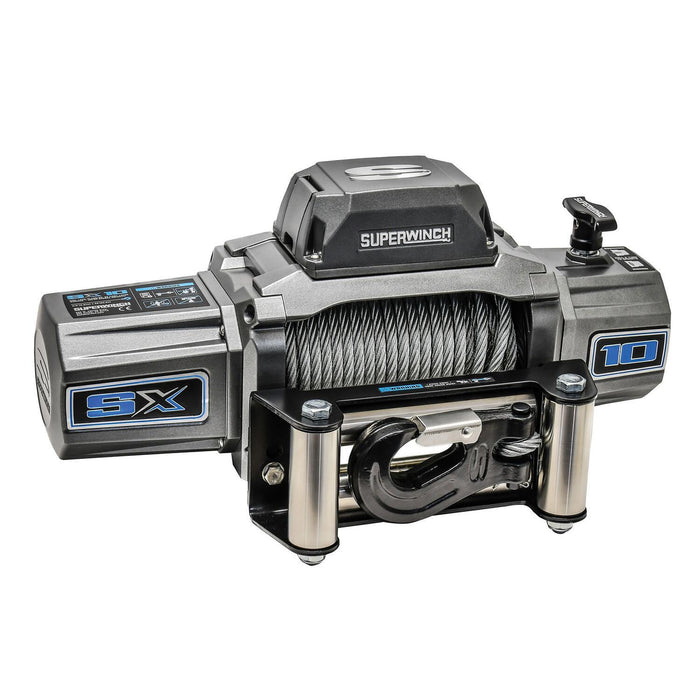

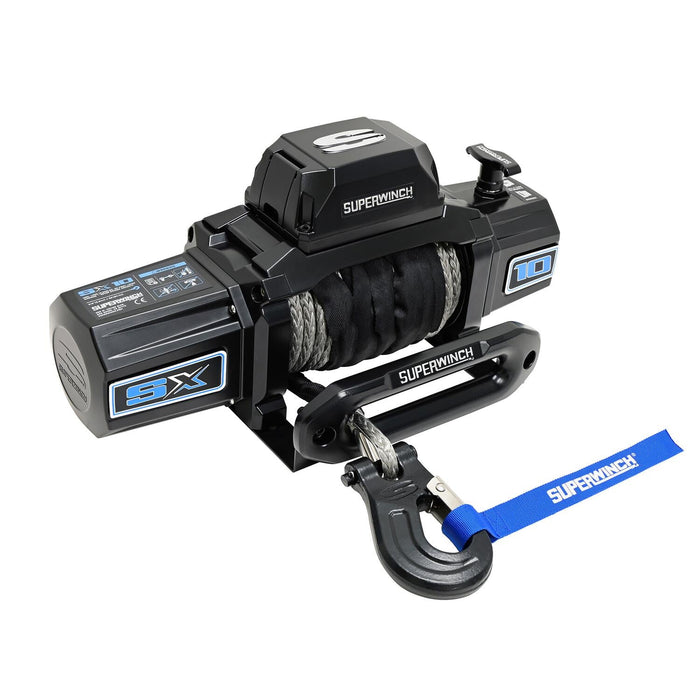

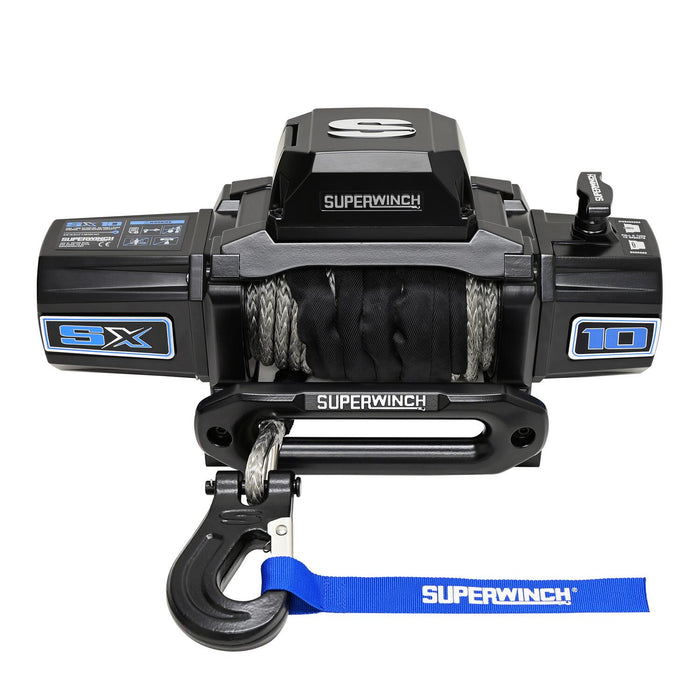

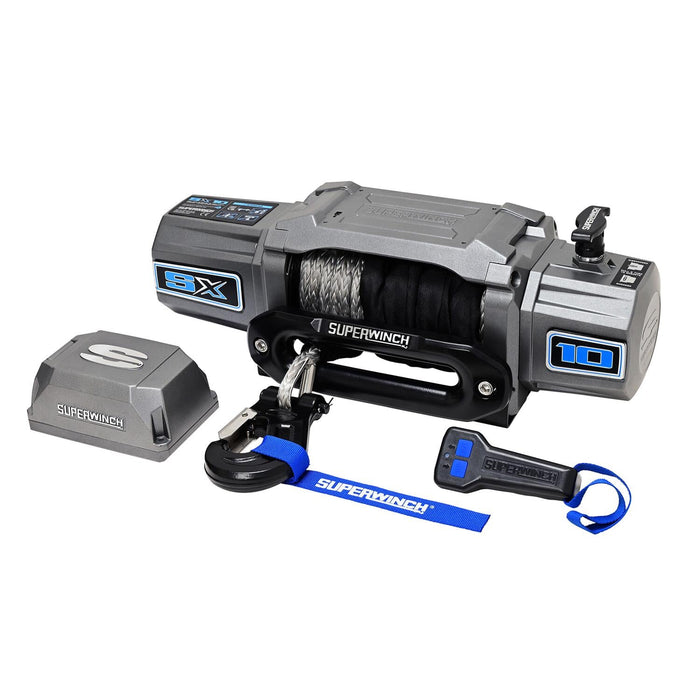

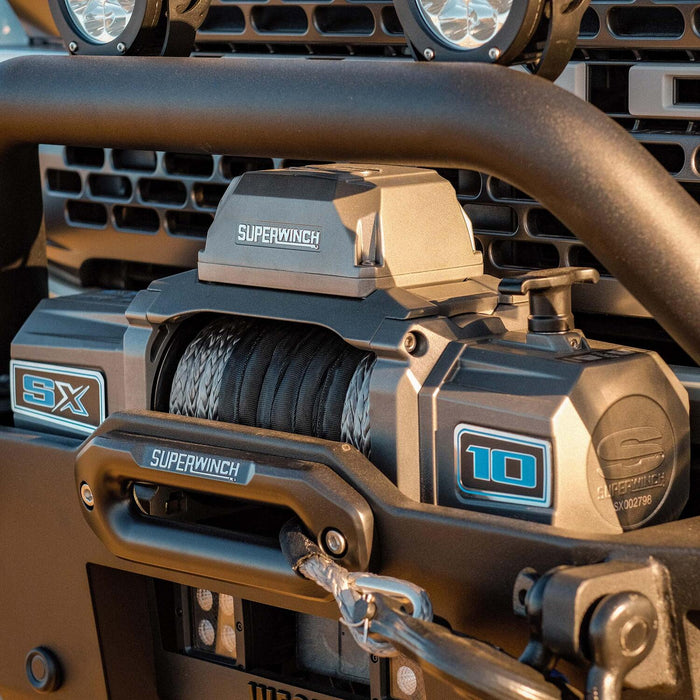

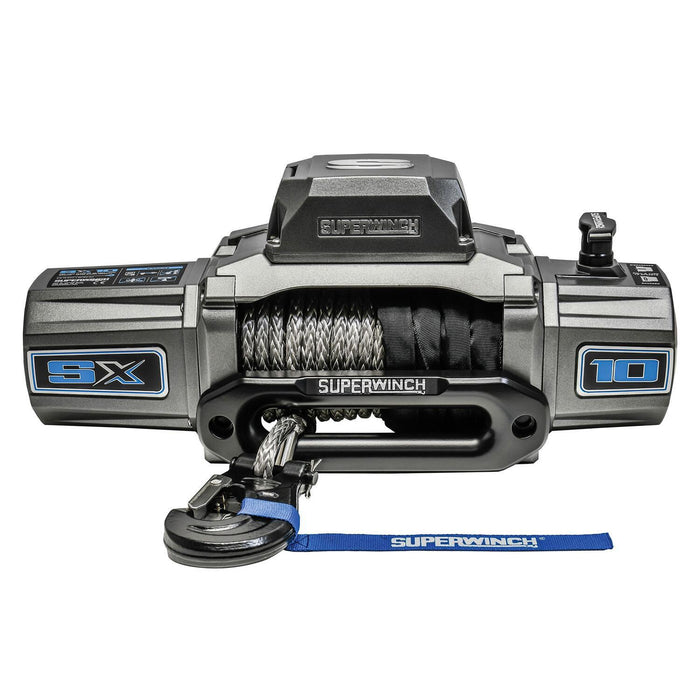

The SX10 is a 12V DC electric winch with 10,000 lb capacity and a 5.5 HP sealed motor. It is IP68 rated for dust and water, with a patented drum light, a relocatable die-cast aluminum control box and a lighted wired remote. It is offered with steel wire rope or synthetic rope.

Features

• 10,000 lbs. capacity

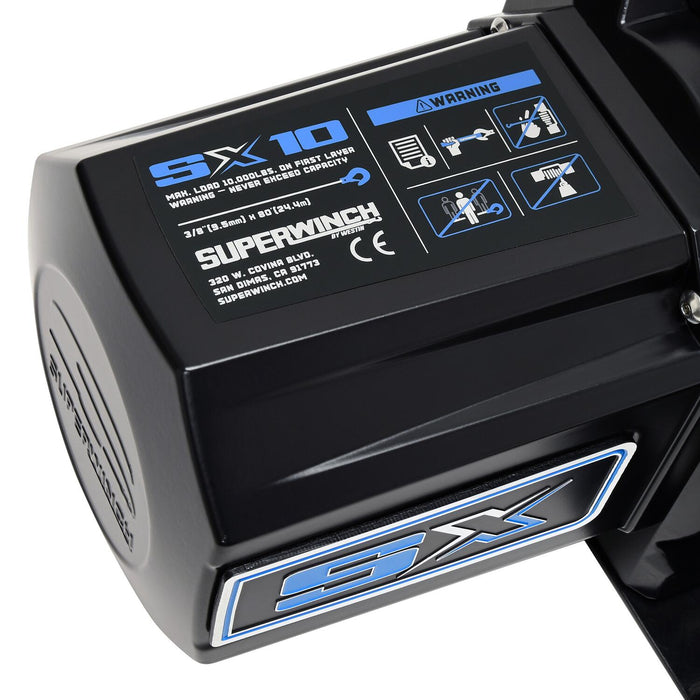

• 5.5 HP sealed motor
• 85' - 3/8" wire rope

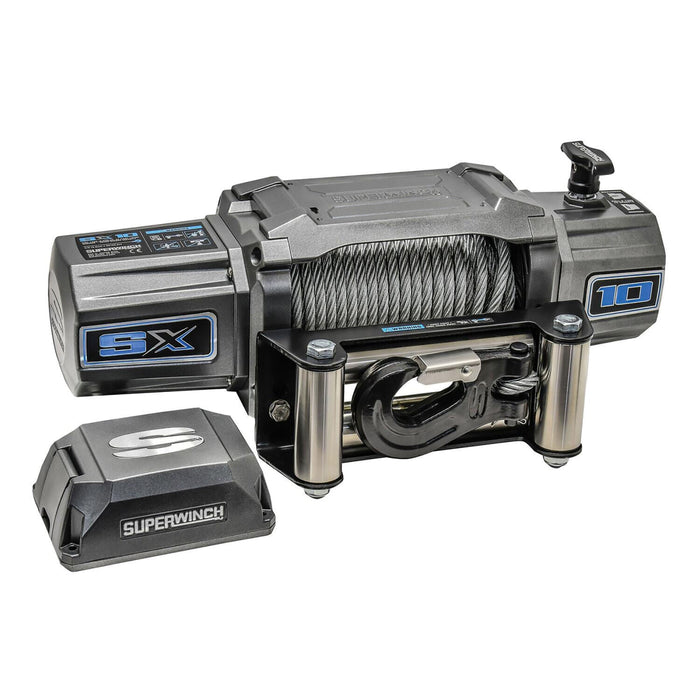

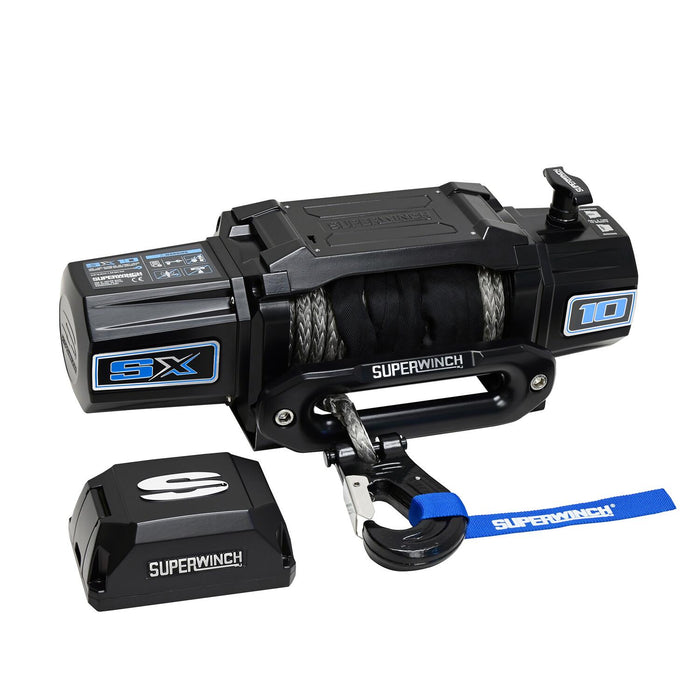

• Relocatable die-cast aluminum control box

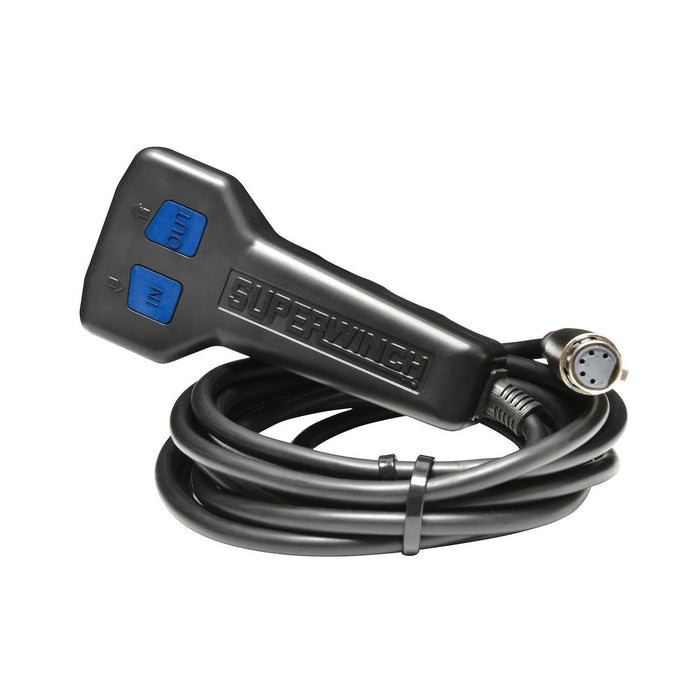

• 12' wired remote with integrated lithium-ION rechargeable LED flashlight

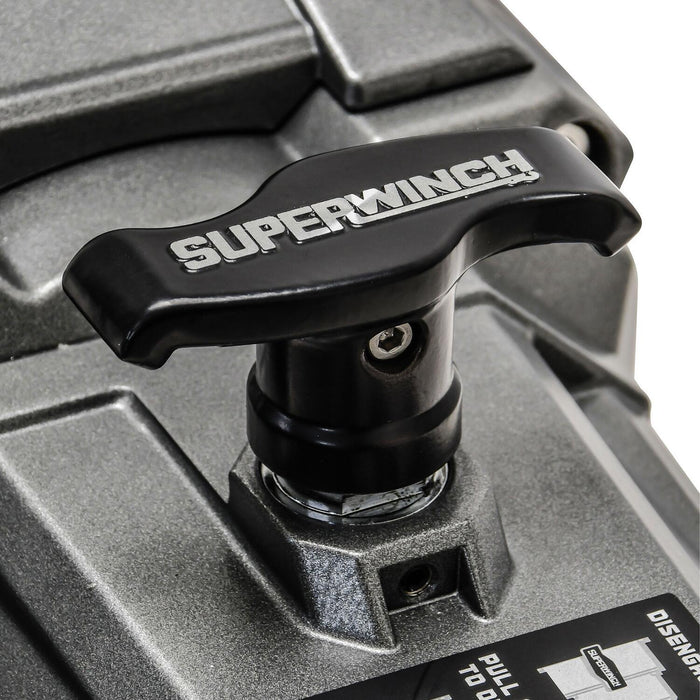

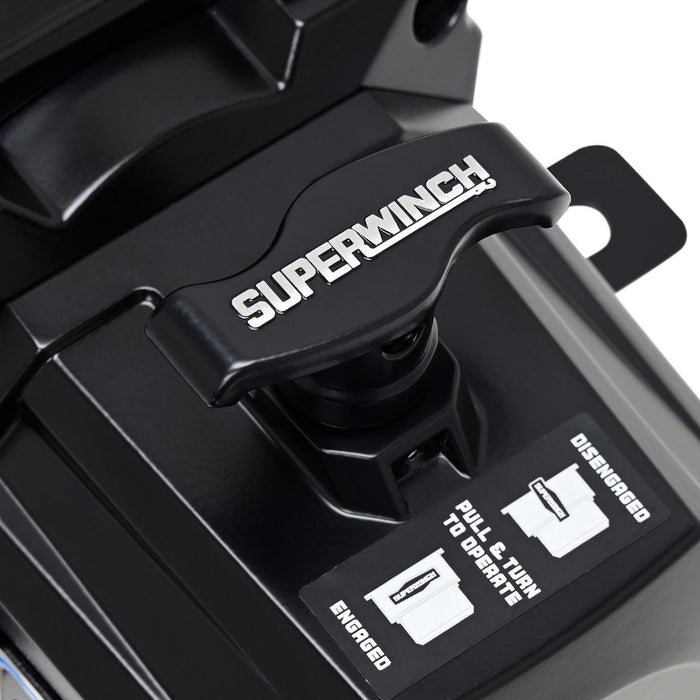

• Ergonomic pull-and-turn clutch handle
• Clockable gear box
• 3-stage planetary gearing with 218:1 ratio

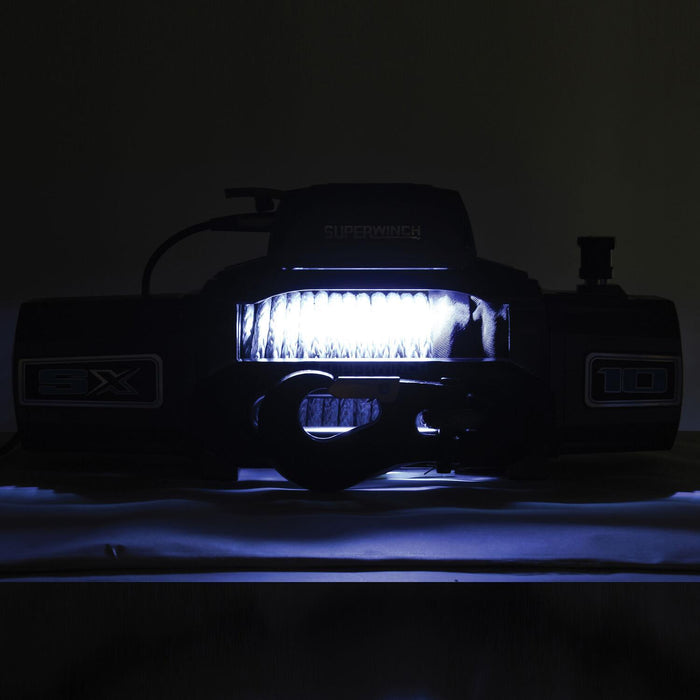

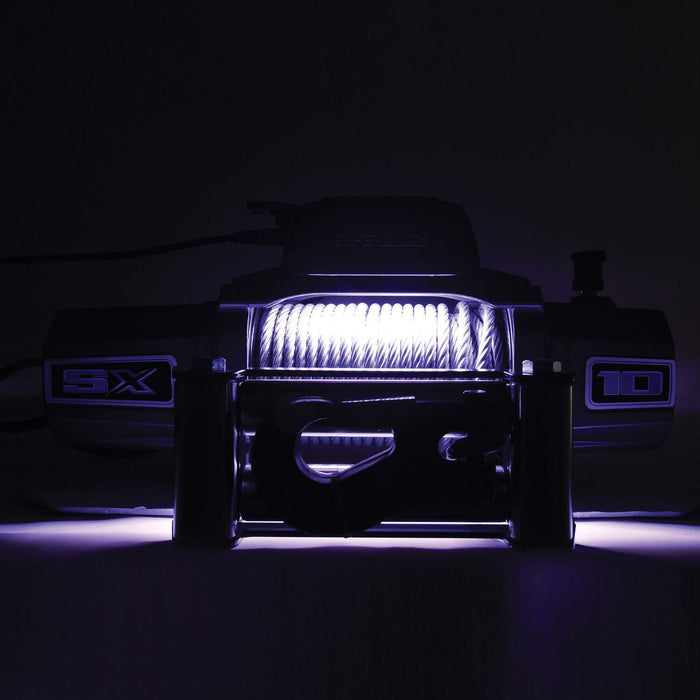

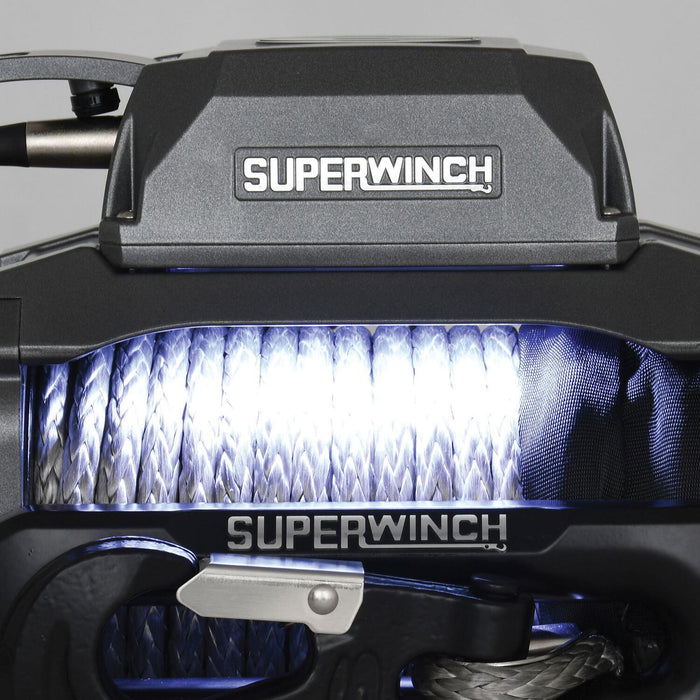

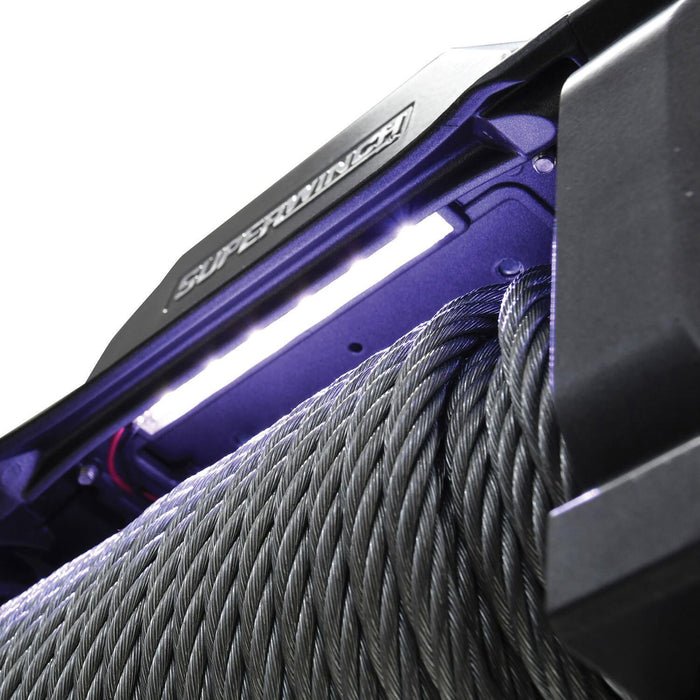

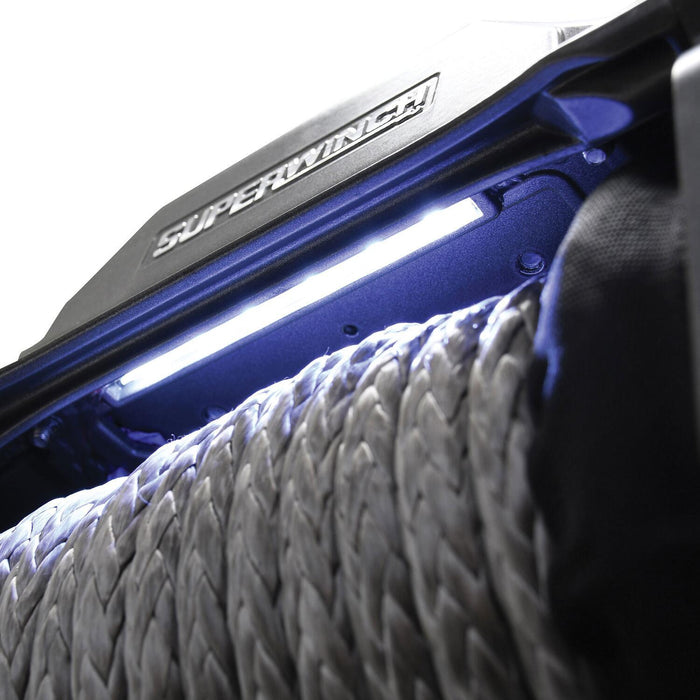

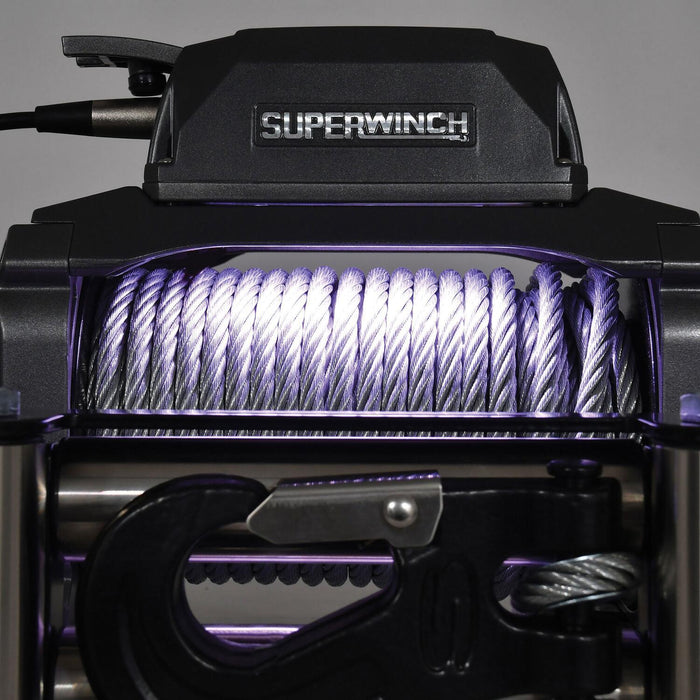

• Patented drum light
• Drum diameter measures 2.5"

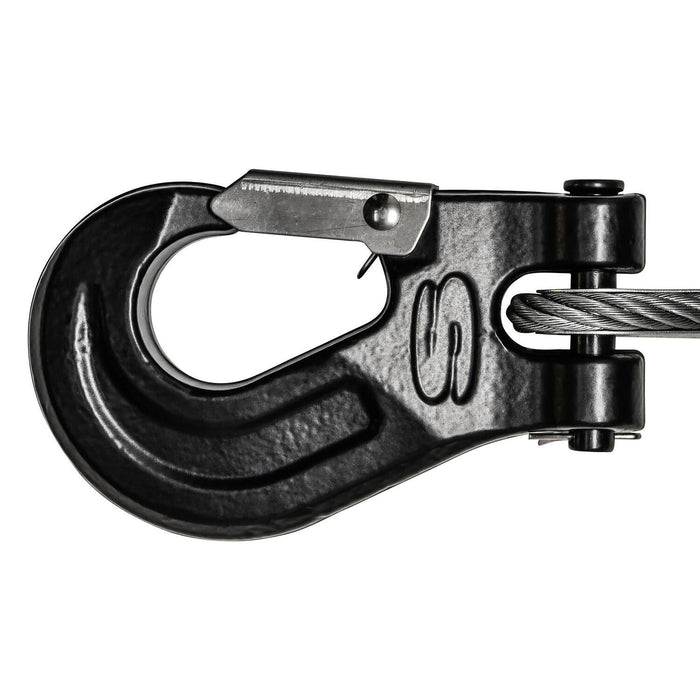

• Heavy duty clevis winch hook

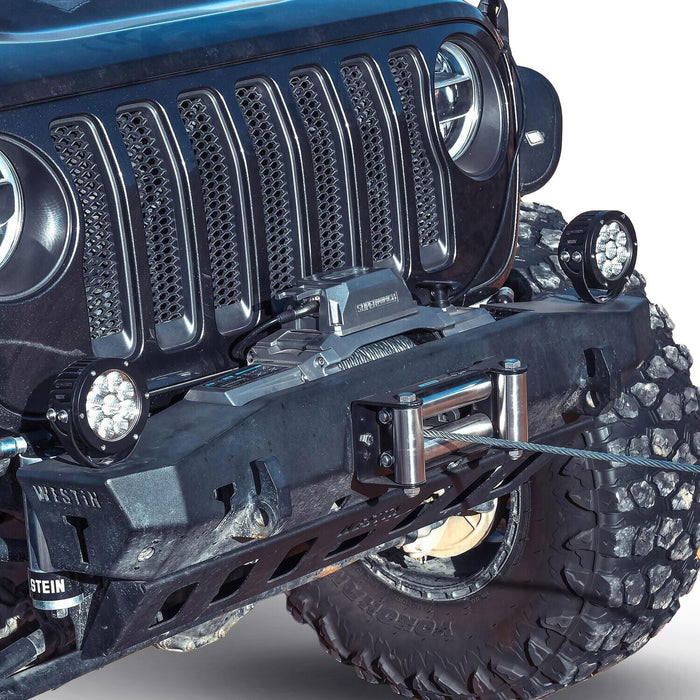

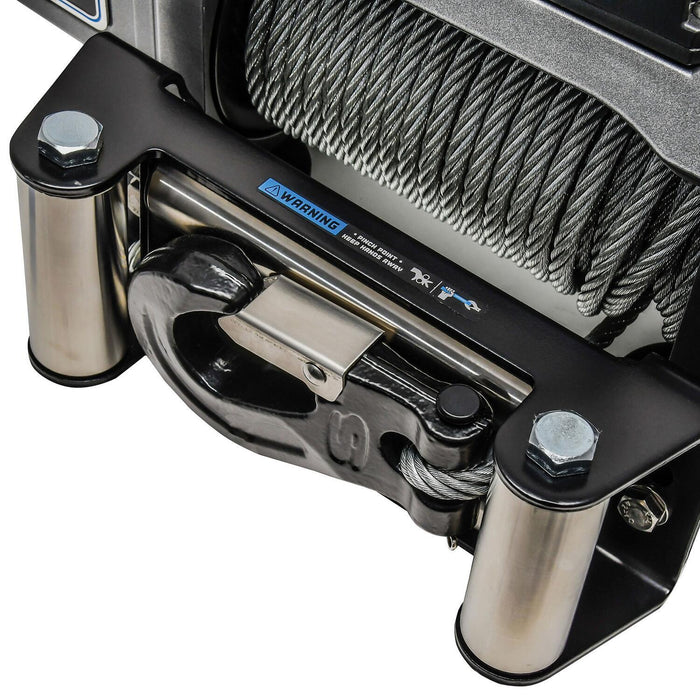

• Stainless steel roller fairlead
• 100% full load holding automatic mechanical brake

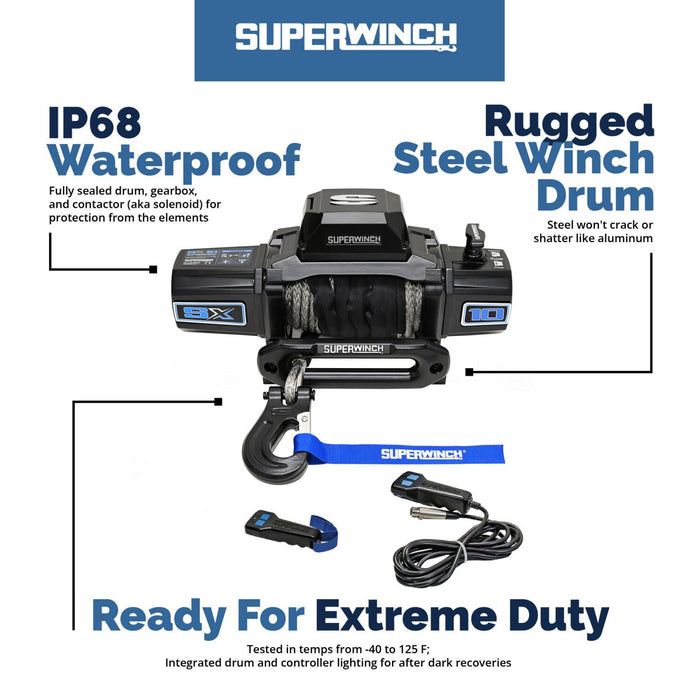

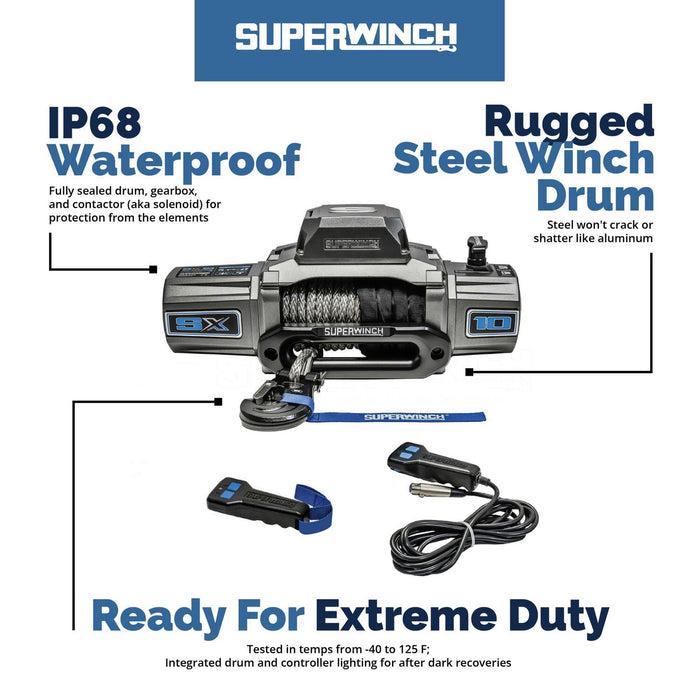

• IP68-rated waterproof and dustproof
• Durable metallic graphite powder coat finish

Specifications

• Winch Type: Electric
• Mounting Type: Bolt-On
• Voltage: 12V DC
• Motor: 5.5 HP, 12V DC
• Gear System: 3-stage planetary
• Gear Ratio: 218:1
• Clutch: Pull and turn clutch handle
• Brake System: 100% Full-load holding automatic mechanical brake

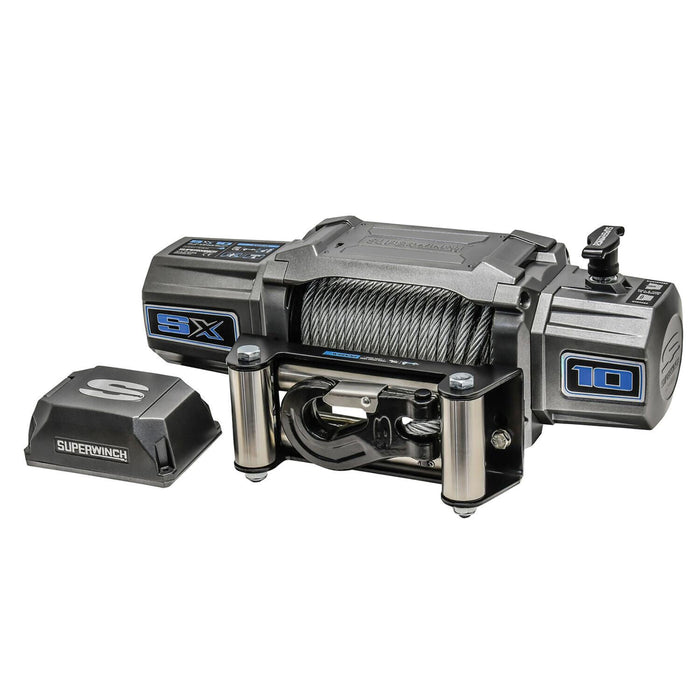

• Rope Material (Steel Wire Rope Graphite): Steel Wire

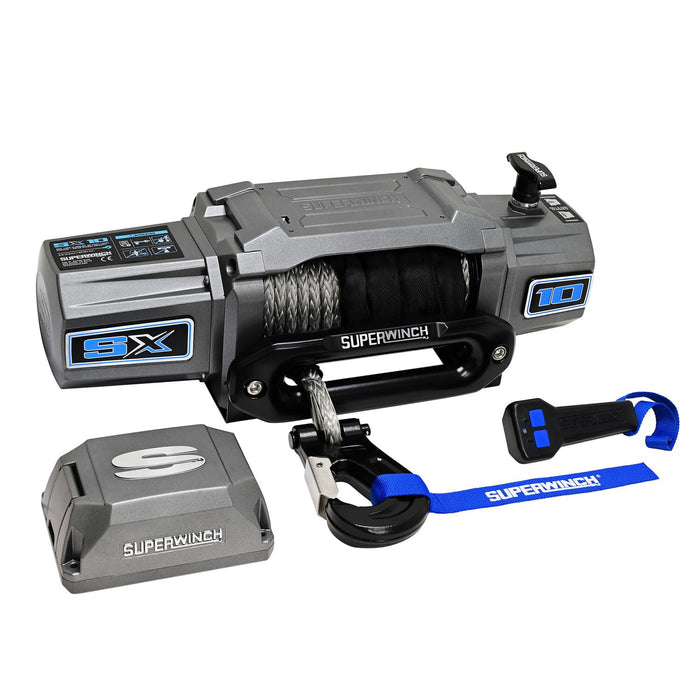

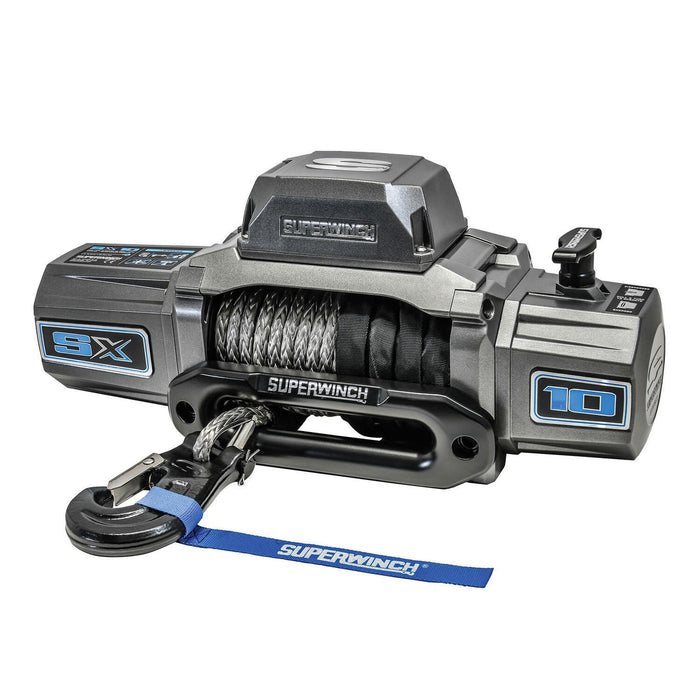

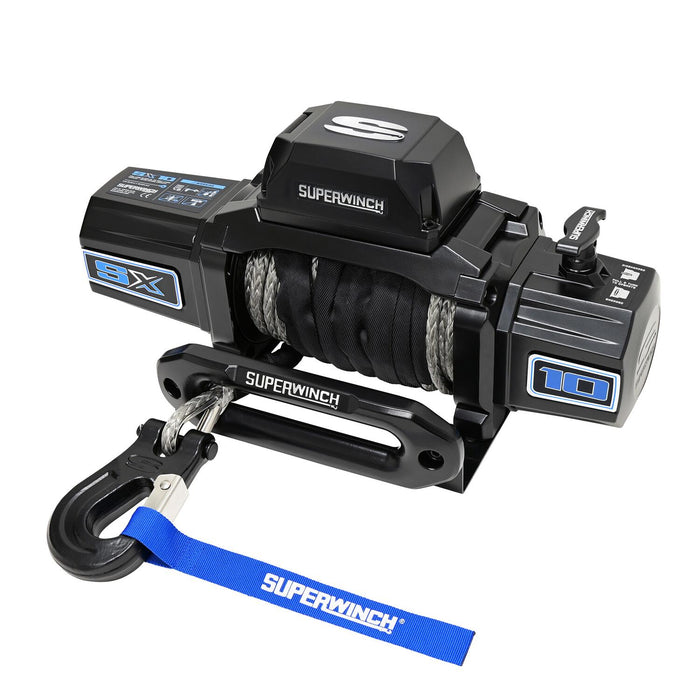

• Rope Material (Synthetic Rope Graphite, Synthetic Rope Black): Synthetic
• Rope Length (Steel Wire Rope Graphite): 3/8 in x 85 ft (9.5mm x 26m)
• Rope Length (Synthetic Rope Graphite, Synthetic Rope Black): 3/8 in x 80 ft (9.5mm x 24.3m)
• Fairlead (Steel Wire Rope Graphite): Stainless Steel 4-Way Roller

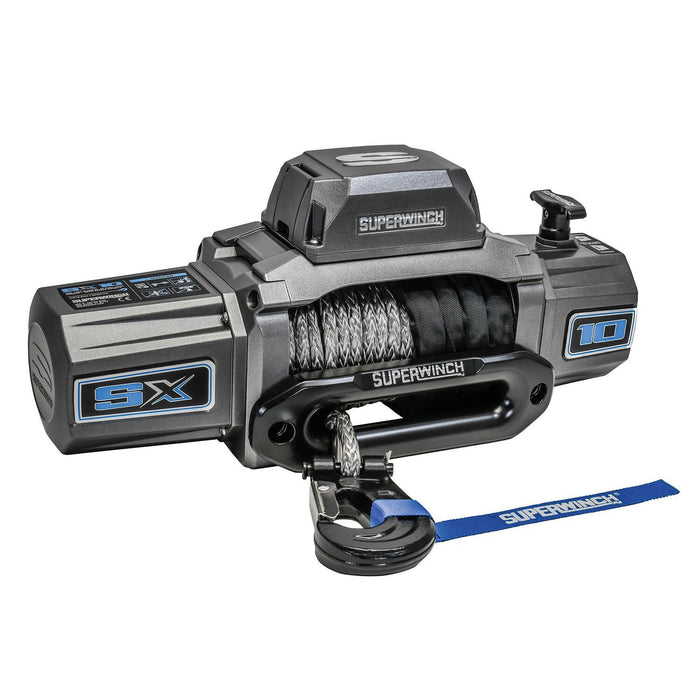

• Fairlead (Synthetic Rope Graphite, Synthetic Rope Black): Aluminum hawse
• Remote Type (Steel Wire Rope Graphite): Wire

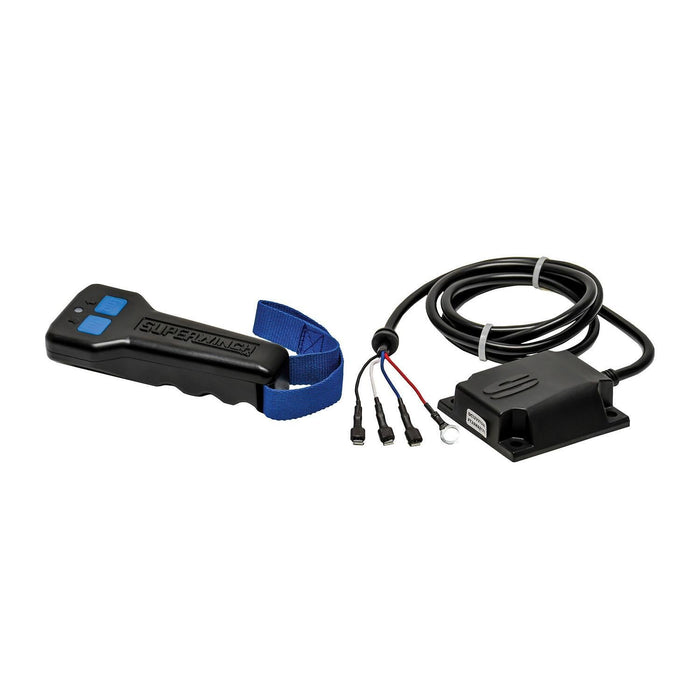

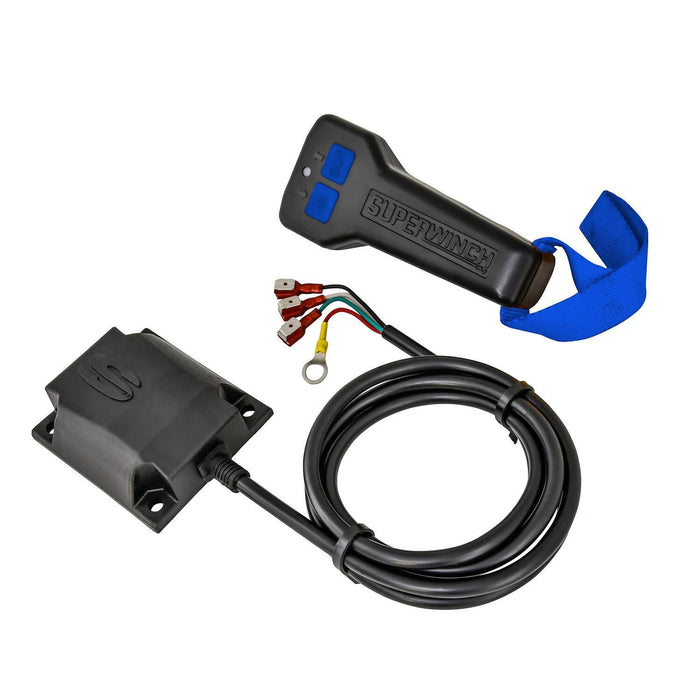

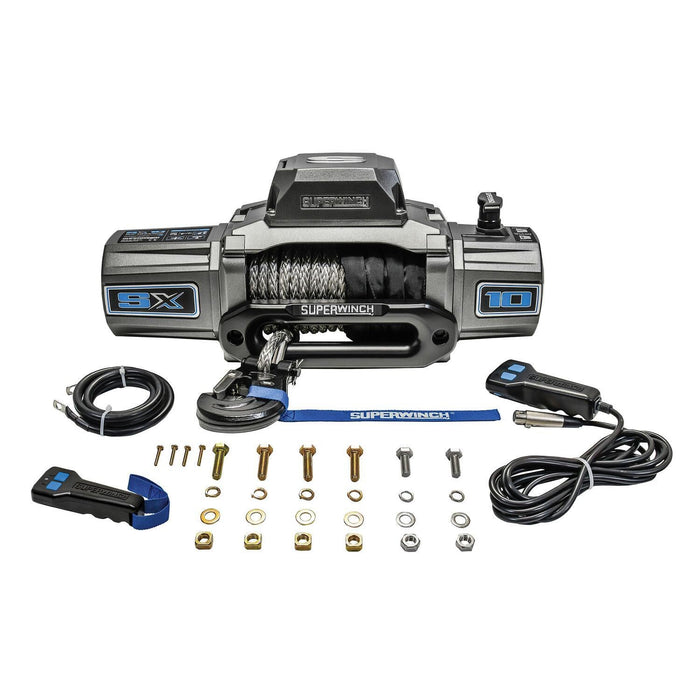

• Remote Type (Synthetic Rope Graphite, Synthetic Rope Black): Wire and Wireless
• IP Rating: IP68 Waterproof and Dustproof
• Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)

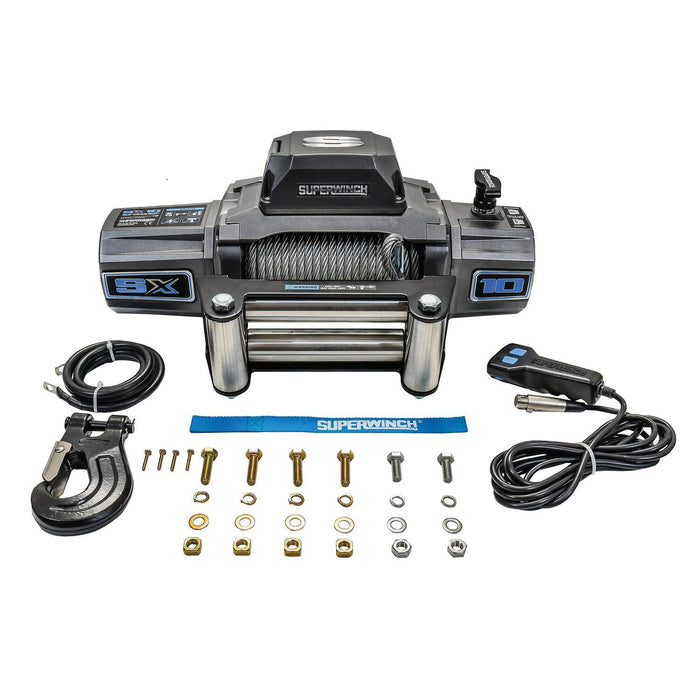

• Mounting Hardware Included: Yes
• Color (Steel Wire Rope Graphite, Synthetic Rope Graphite): Graphite
• Color (Synthetic Rope Black): Black

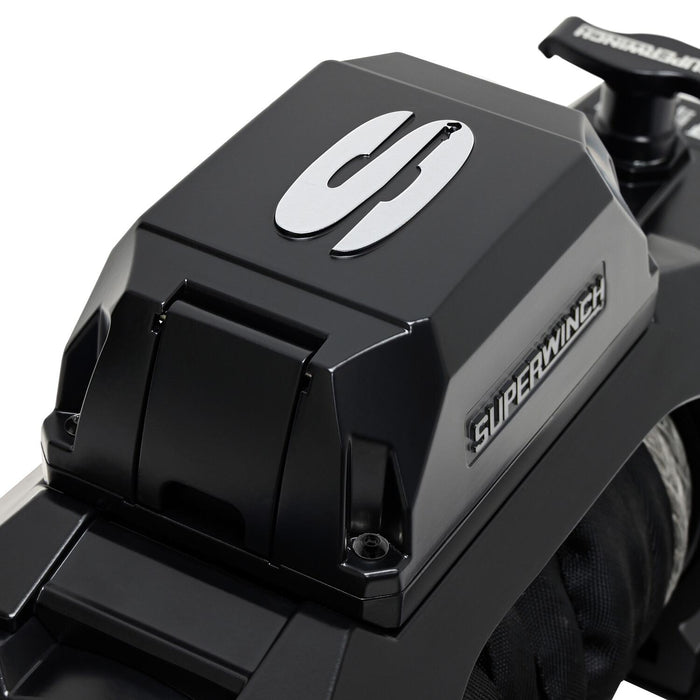

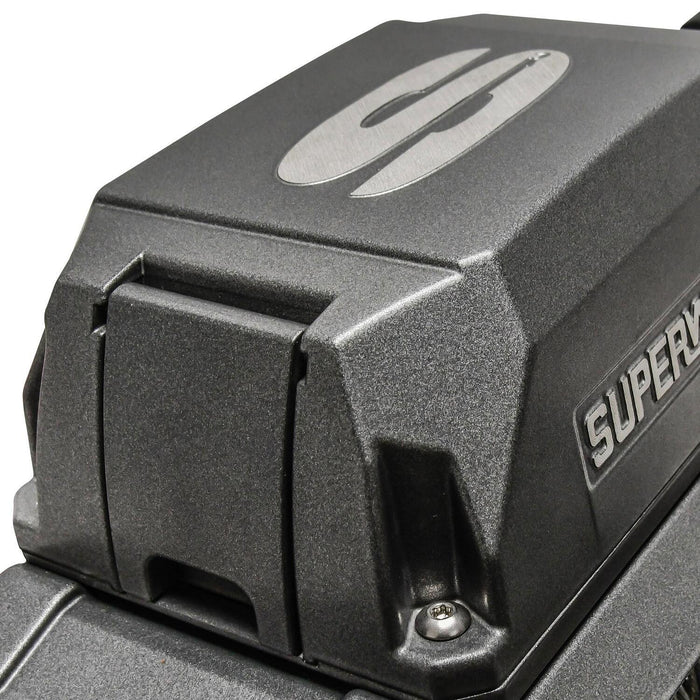

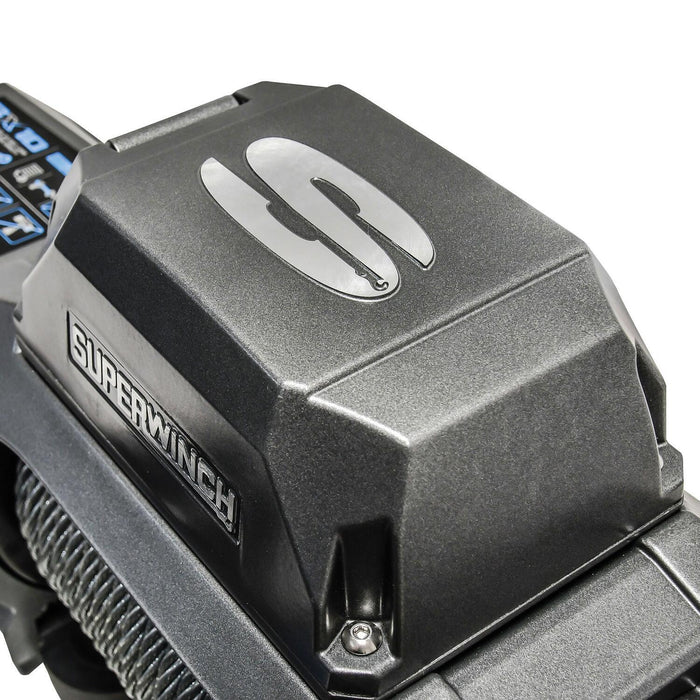

• Control Box: Relocatable Die-Cast Aluminum
• Task Lighting: Patented drum light
• Drum: Durable fully welded steel drum

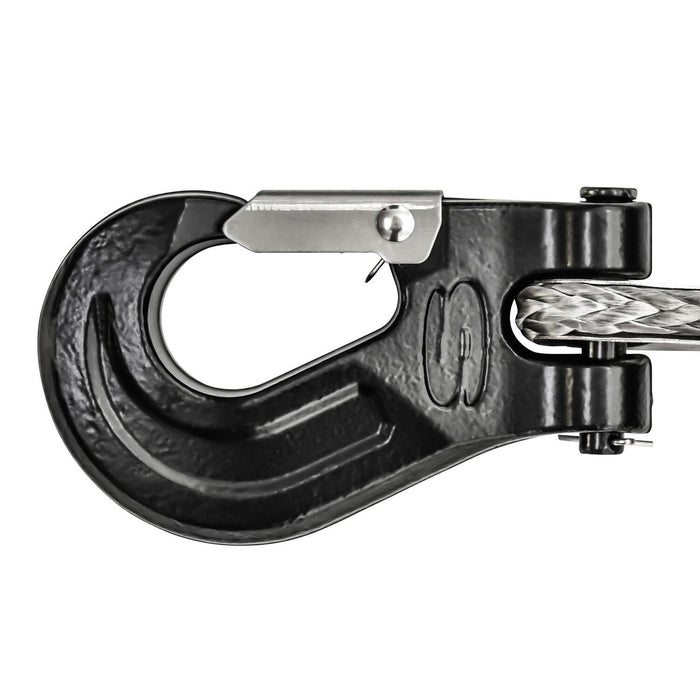

• Winch Hook: Heavy-Duty, Clevis Pinned Latched

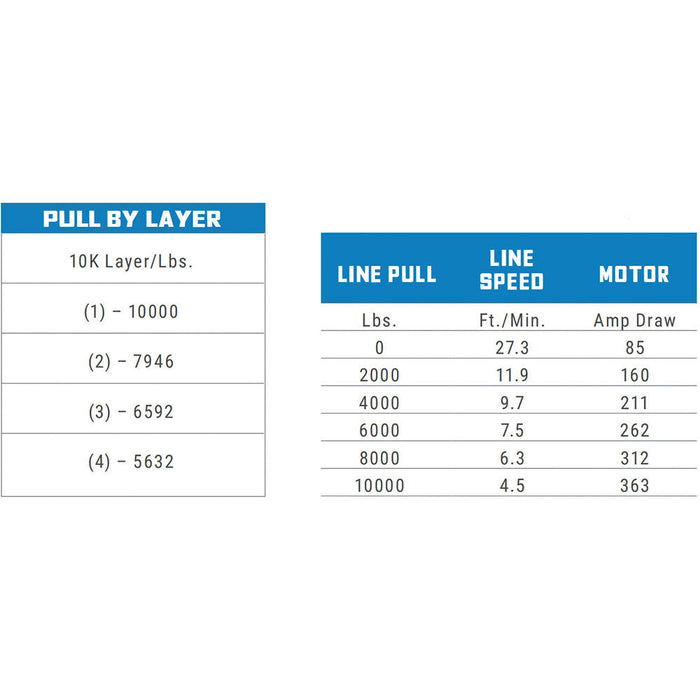

• Line Speed (Steel Wire Rope Graphite, Synthetic Rope Graphite): 363 Amps Motor Draw (Max Load)/4.5 FPM (1.37 MPM)
• Line Speed (Synthetic Rope Black): 0 lb. - 85 Amps Motor Draw/27.3 FPM | 10000 lbs. - 363 Amps Motor Draw/4.5 FPM
• Weight (Steel Wire Rope Graphite): 88 lb
• Weight (Synthetic Rope Graphite, Synthetic Rope Black): 61 lb

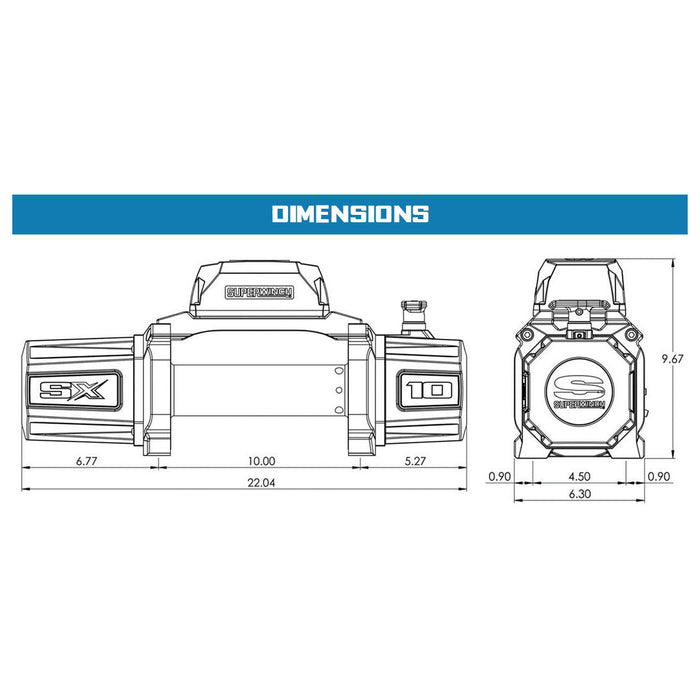

• Width: 13 in
• Height: 12 in

Warranty

Limited Lifetime Mechanical, Limited 7 Year Electrical warranty.

Part Numbers

• MPN 1710200
• MPN 1710201
• MPN 1710204
