Superwinch Scorpion 10SR Winch | 10,000 lb, 12V DC, Synthetic Rope | P/N 1155401

Superwinch Scorpion 10SR Winch | 10,000 lb, 12V DC, Synthetic Rope | P/N 1155401

by Superwinch
SKU 1155401
✓ In stock and ready to ship.
$874.00 - $874.00
$874.00
$874.00 - $874.00
$874.00

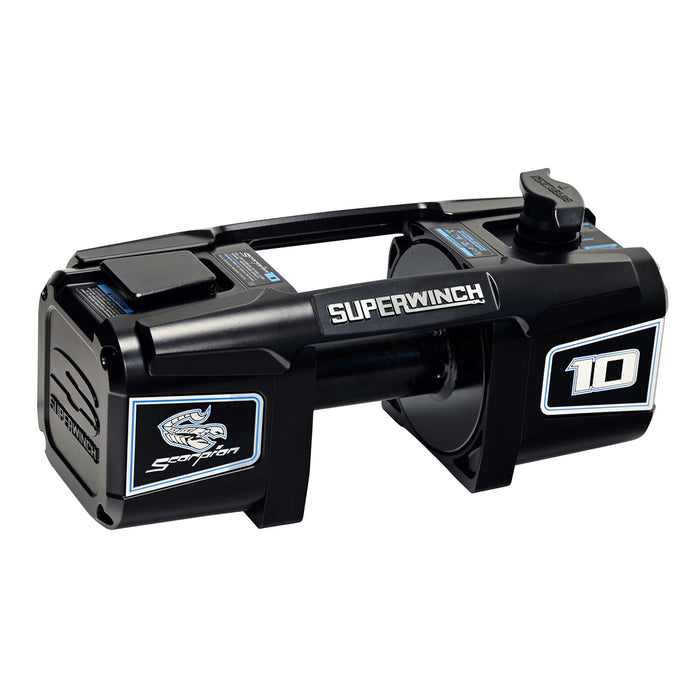

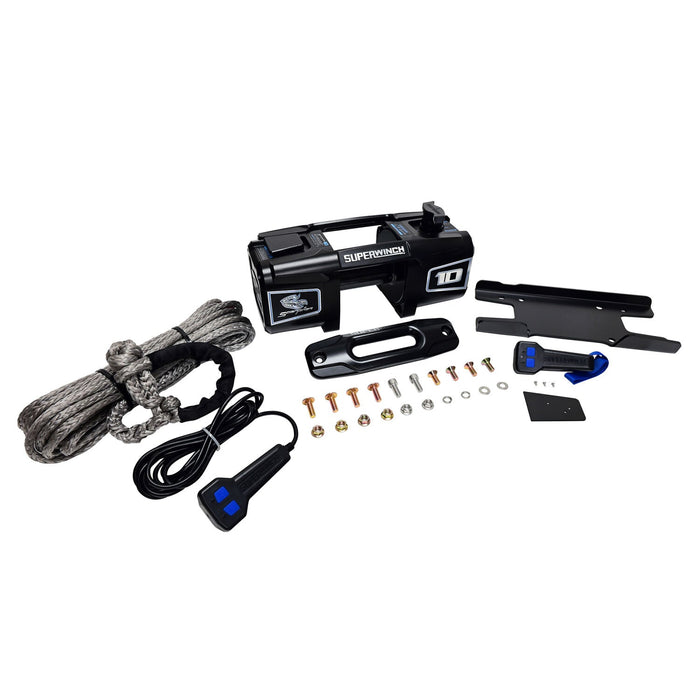

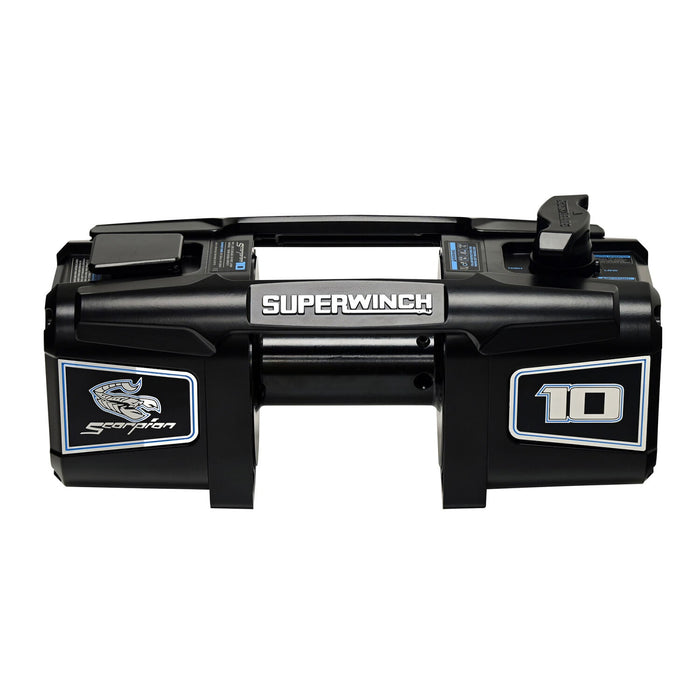

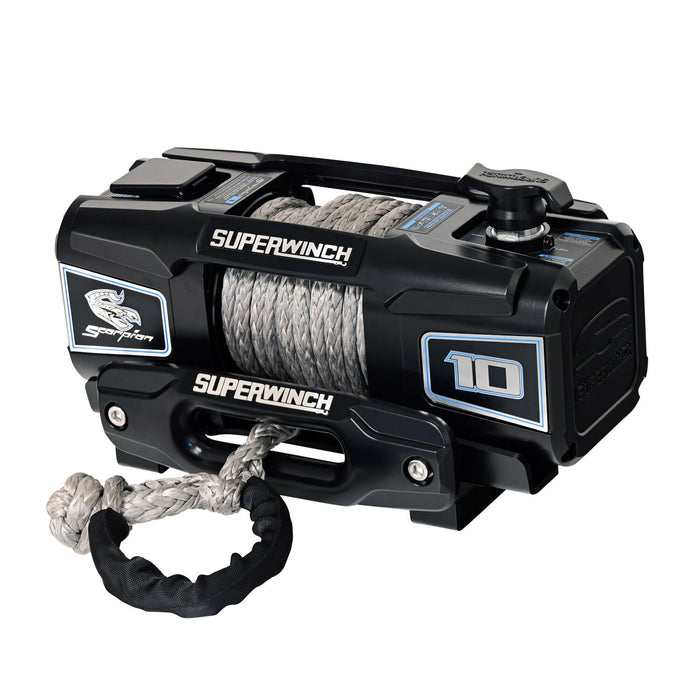

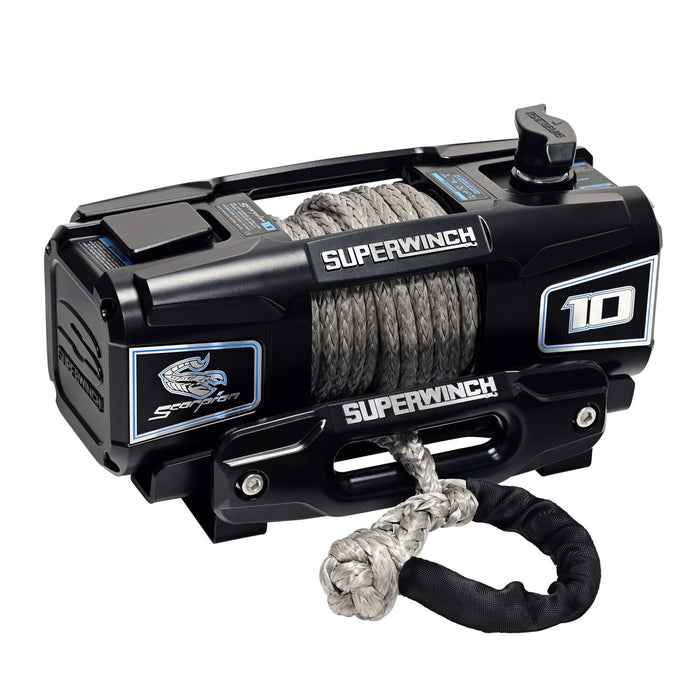

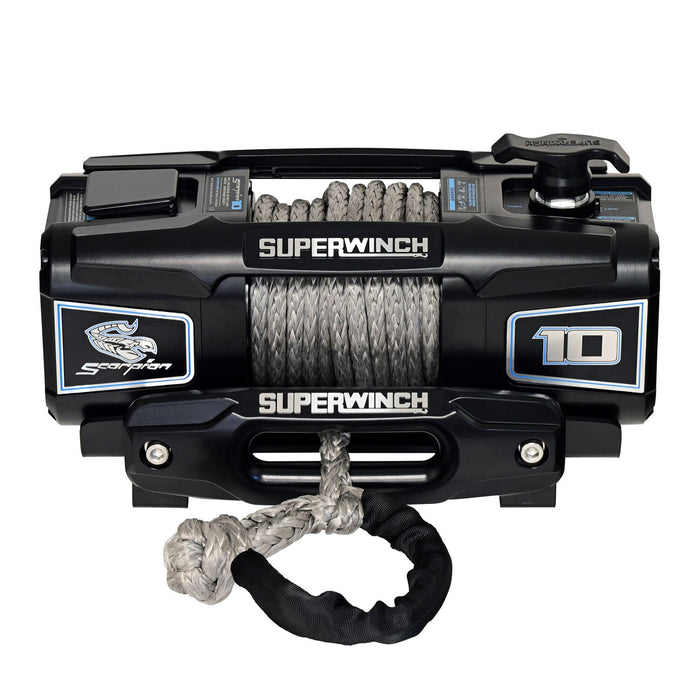

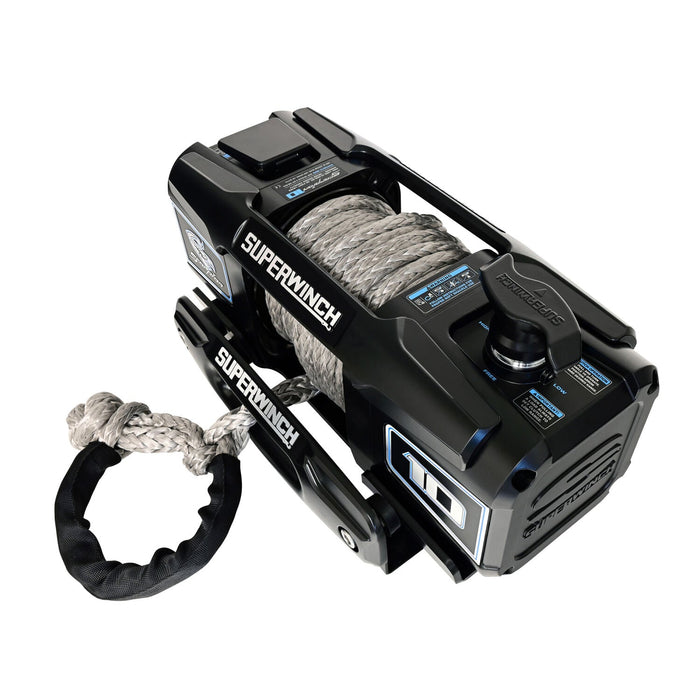

The Scorpion 10SR is a 12V DC electric winch with 10,000 lb capacity. It has a permanent magnet motor, a 4-stage planetary gearbox with dual-range gearing, a full load-holding brake and a 3/8 in x 54 ft synthetic rope with soft shackle. Wired and wireless remotes are included.

Features

  • Compact Design - Fits in tighter spaces than traditional 10,000 lb. winches while reducing stress on the vehicle's suspension.

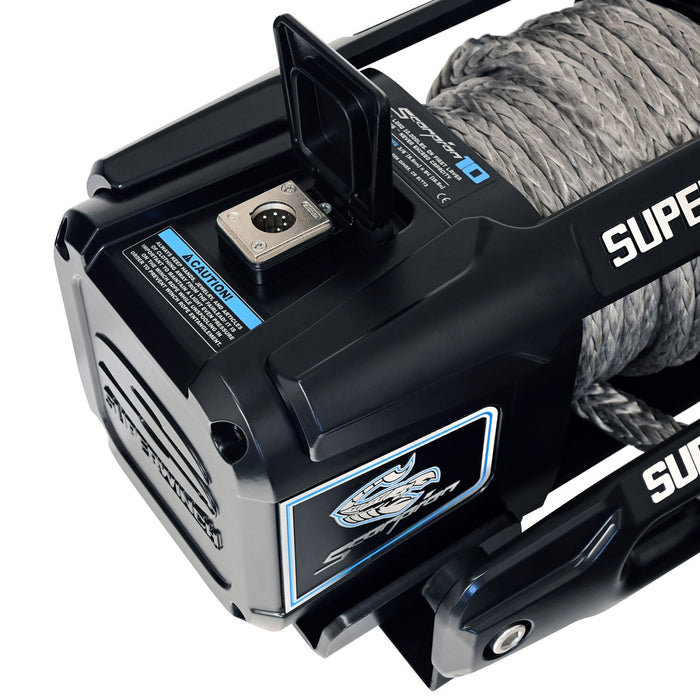

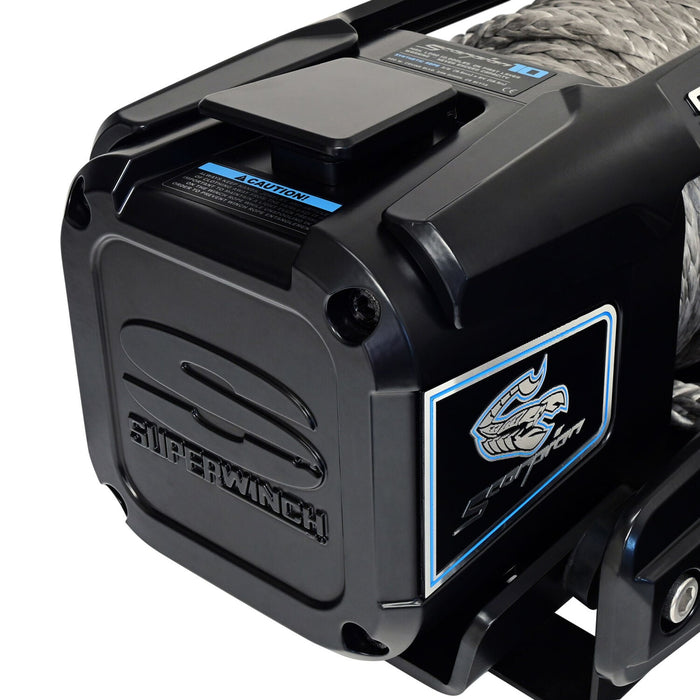

  • Internal Control Box - Nothing to relocate with improved radiator airflow and enhanced visibility for camera-equipped vehicles.
  • Low Amp Draw - Delivers maximum winching performance using a single 12V battery.
  • Permanent Magnet Motor with Dynamic Braking - Provides instant, no-load braking for enhanced safety.
  • Full Load-Holding Automatic Brake - Securely holds loads of up to 10,000 lbs.
  • 4-Stage Planetary Gear System - Dual-range gearing: low gear (437:1) for maximum pulling power up to 10,000 lbs., high gear (156:1) for fast line speeds up to 3,000 lbs.
  • Clock-able Gearbox - Can be positioned in four orientations for flexible installation.
  • Overload Interrupter (OLI) - Automatically shuts off the winch at maximum load to prevent potential vehicle damage.
  • Multi-Function Wired Remote - Features an integrated, rechargeable flashlight for added convenience.
  • Wireless Remote - Ergonomic design with MOLLE loop clip for easy access and storage.

Specifications

  • Winch Type: Electric
  • Voltage: 12V DC
  • Motor: 1.9 HP, 12V DC
  • Gear System: 4-Stage Planetary
  • Gear Ratio: High 156:1/Low 437:1

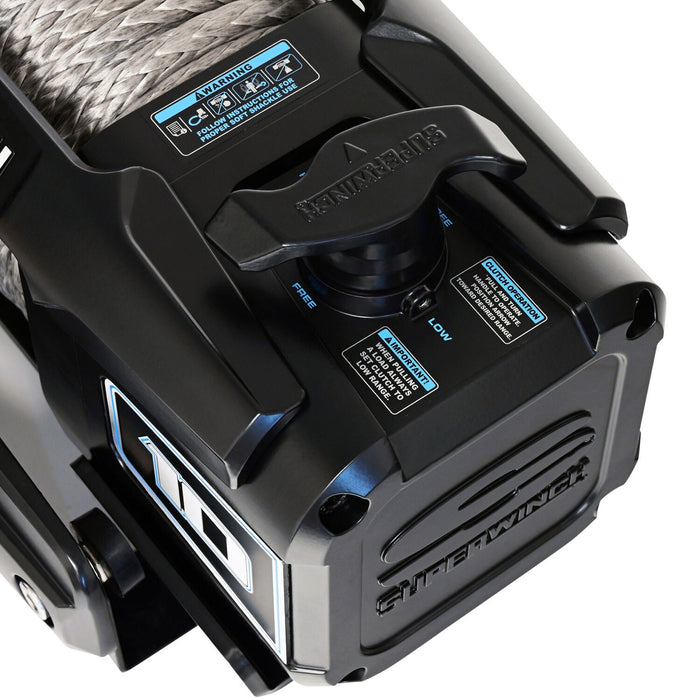

  • Clutch: Pull and turn clutch handle
  • Brake System: 100% Full-load holding automatic mechanical brake

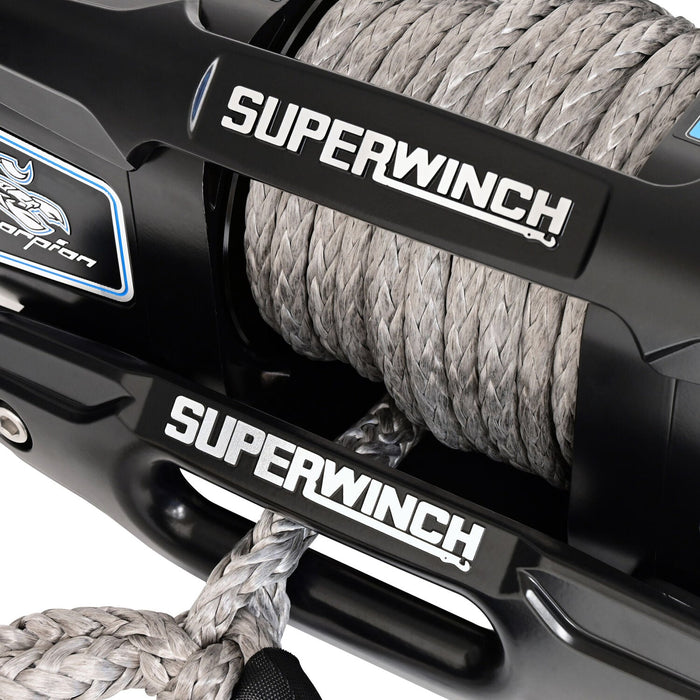

  • Rope Material: Synthetic

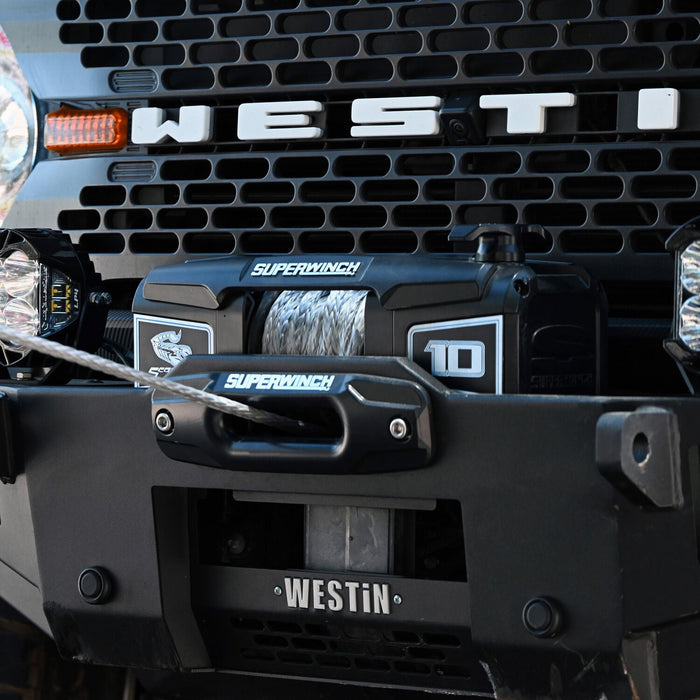

  • Fairlead: Hawse
  • Remote Type: Wire and Wireless
  • IP Rating: IP68 Waterproof and Dustproof

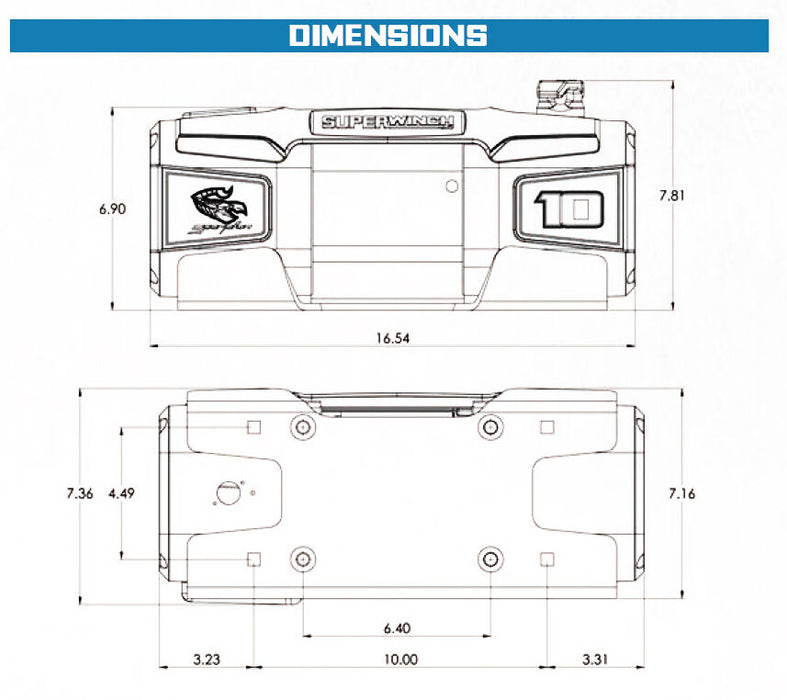

  • Mounting Bolt Pattern: 10.00in x 4.50in and 6.38in x 4.50in
  • Color: Black
  • Control Box: Relocatable Die-Cast Aluminum

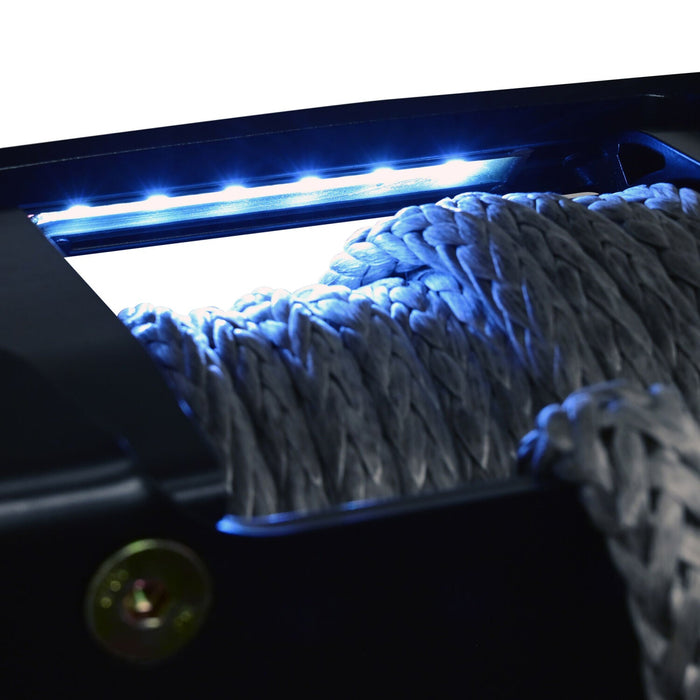

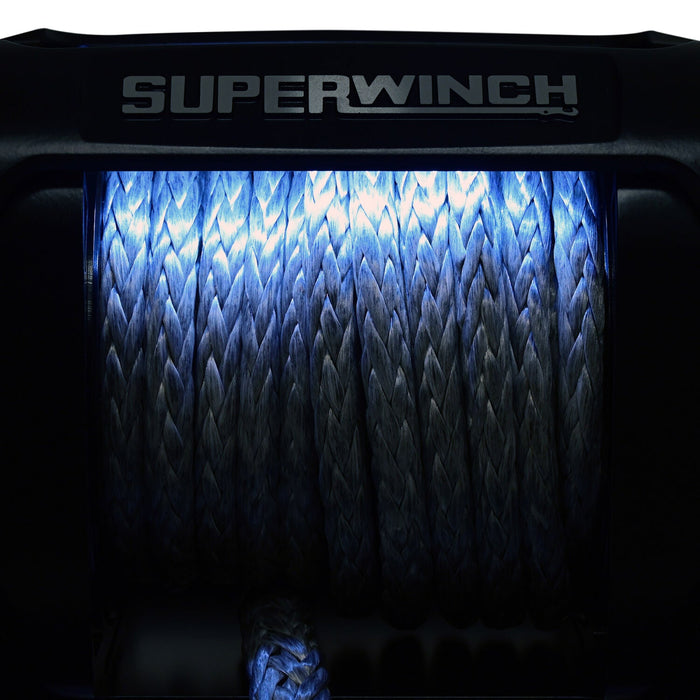

  • Task Lighting: Patented drum light
  • Drum: Durable fully welded steel drum

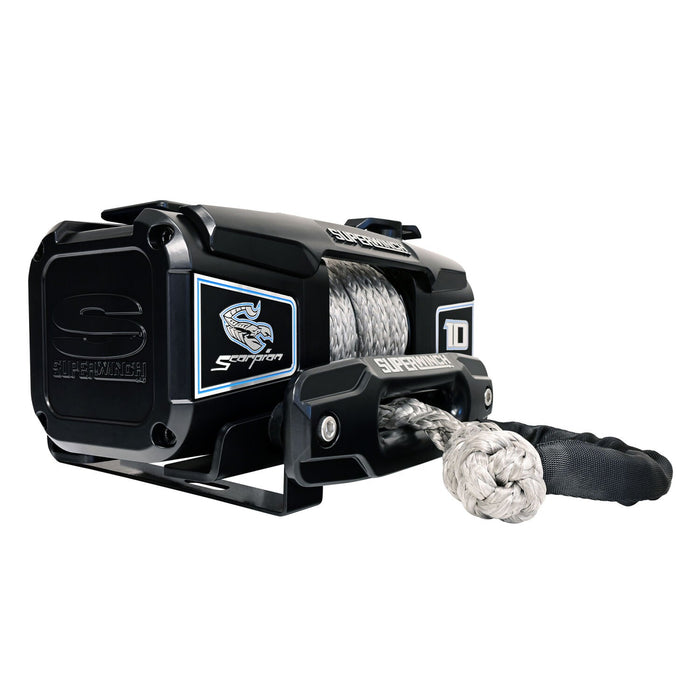

  • Winch Hook: Integrated Soft Shackle
  • Weight: 53 lb
  • Width: 11 in
  • Height: 13 in

Part Numbers

  • MPN 1155401
