Superwinch S7500 Trailer Winch | 7,500 lb, 12V DC | P/N 1475200
by Superwinch
SKU 1475200
✓ In stock and ready to ship.
Original price
$808.00
-
Original price
$943.00
Original price
$808.00
$808.00
-
$943.00
Current price
$808.00

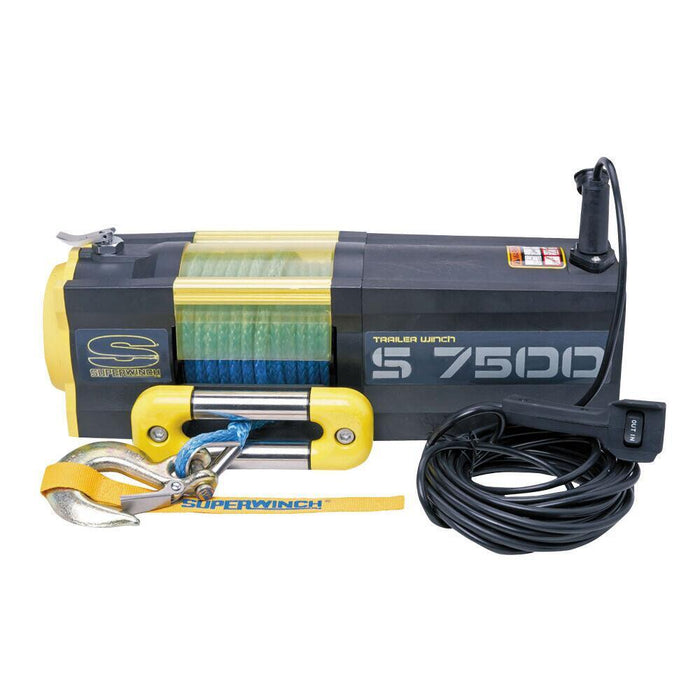

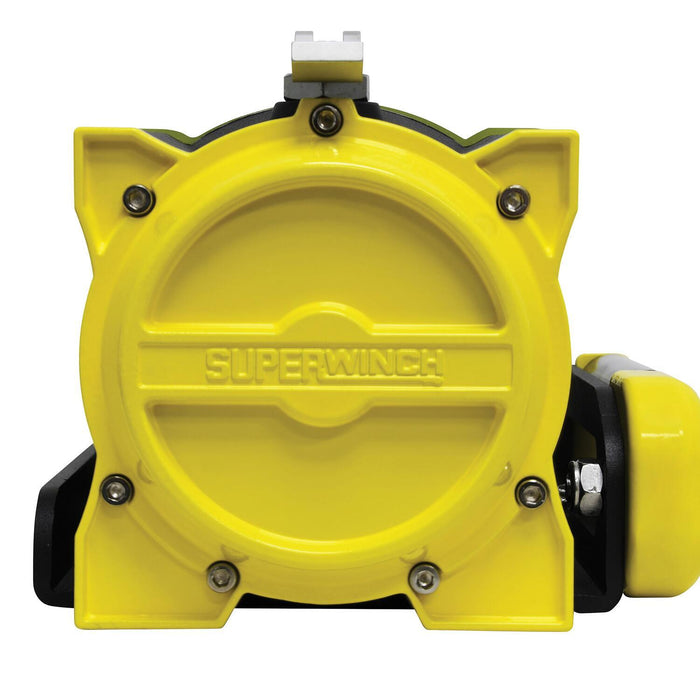

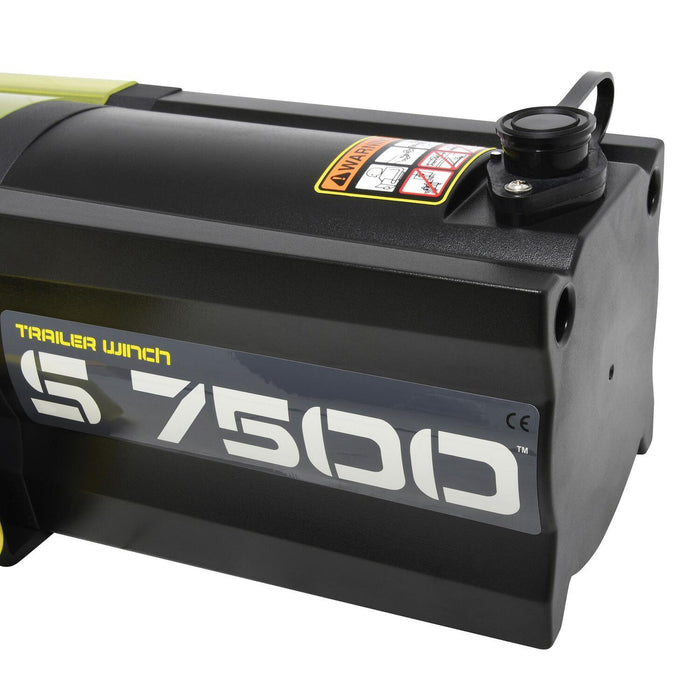

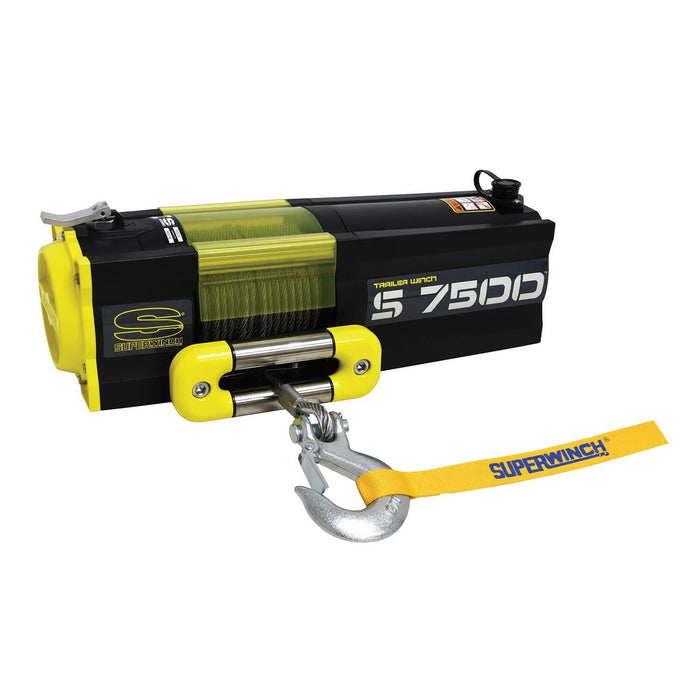

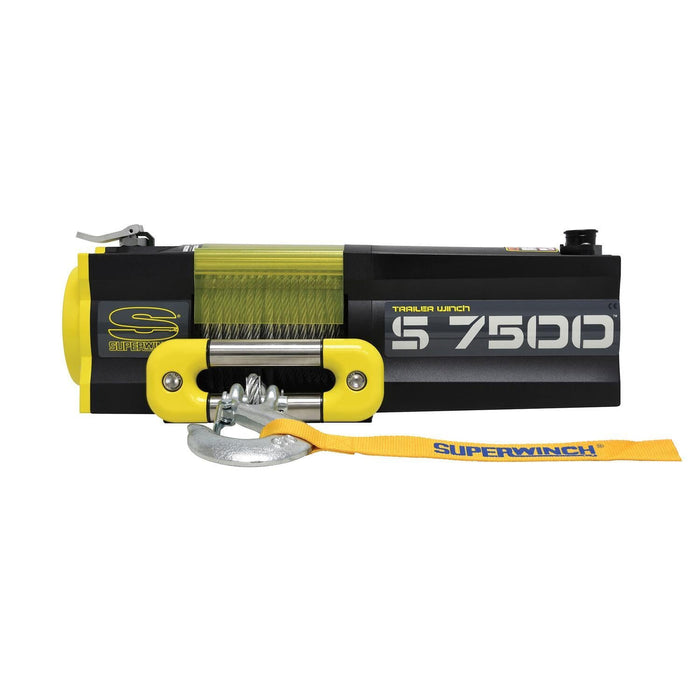

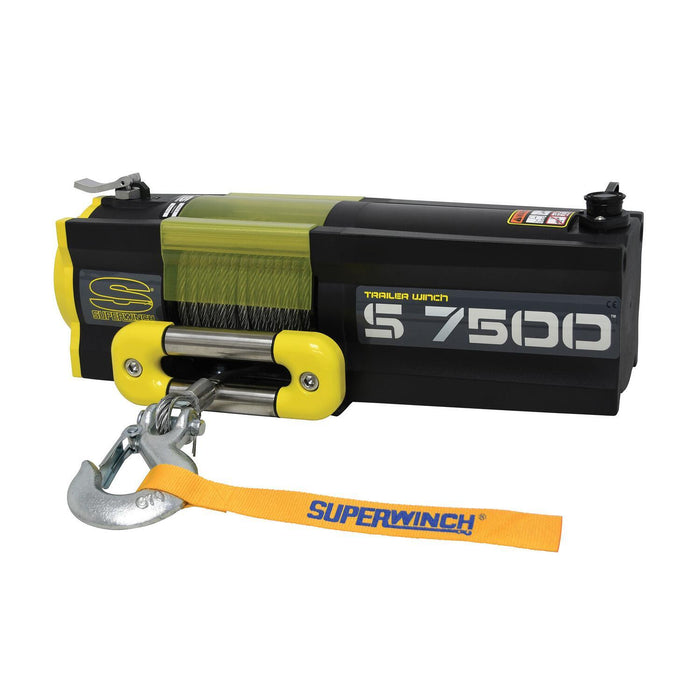

The S7500 is a 12V DC electric trailer winch with 7,500 lb capacity, powered by a 3.6 HP permanent magnet motor and an all steel 3-stage planetary gearbox. A tinted protective cover covers the cable, drum and operator's fingers, and a 2-hole drum keeps steel cable from detaching. It is offered with steel wire rope or synthetic rope.
Features
- 7,500 lbs. capacity
- 3.6 HP permanent magnet motor provides dynamic braking
- 3-Stage planetary gearing with 249:1 ratio
- Sealed solenoid

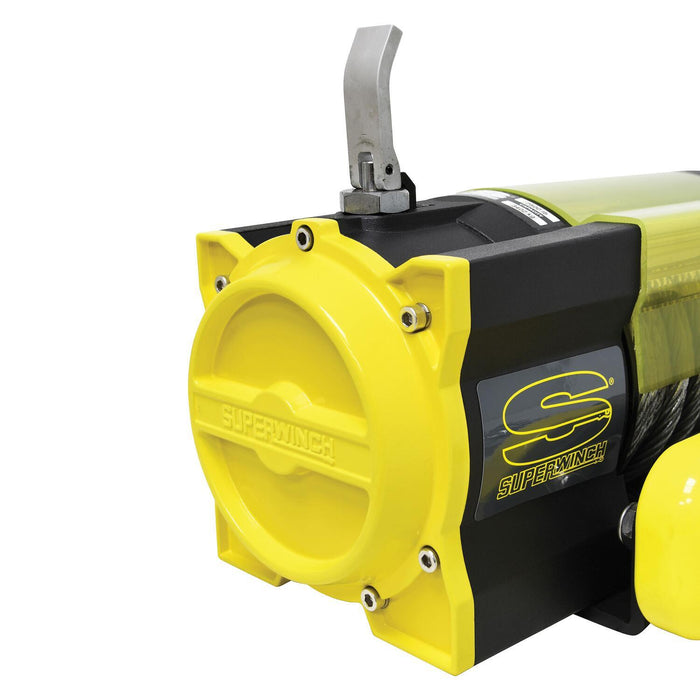

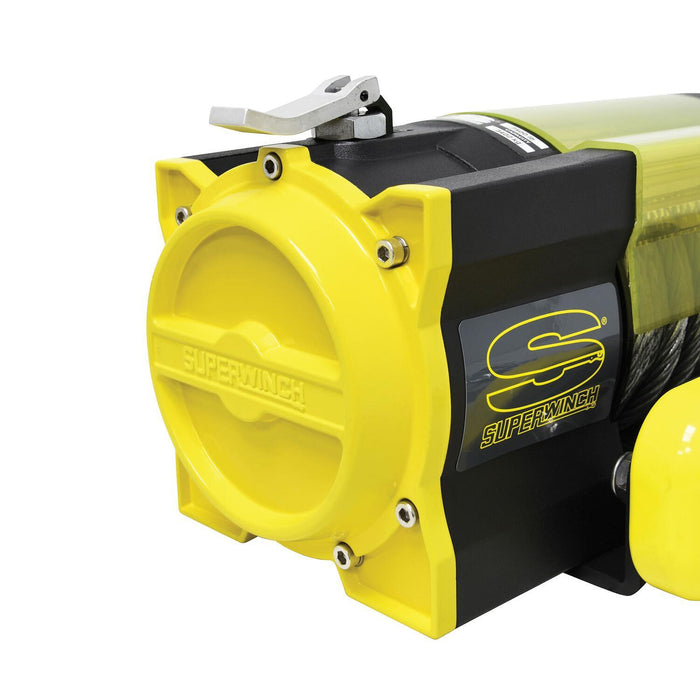

- Lever style freespool allows hand or foot operation
- Steel cut gears for better engagement and longevity
- Automatic load holding brake
- Stainless steel 2-way roller fairlead

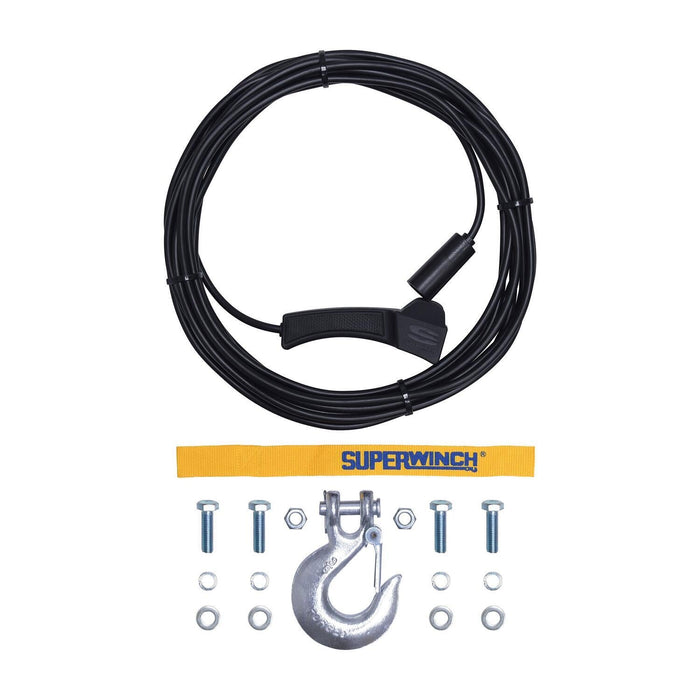

- 30 ft. wire remote
Specifications
- Winch Type: Electric
- Voltage: 12V DC
- Motor: 3.6 HP, permanent magnet motor, 12V DC
- Gear System: 3-stage planetary
- Gear Ratio: 249:1
- Clutch: Kick-n-flip
- Brake System: Mechanical, Automatic Load Holding, Outside Drum

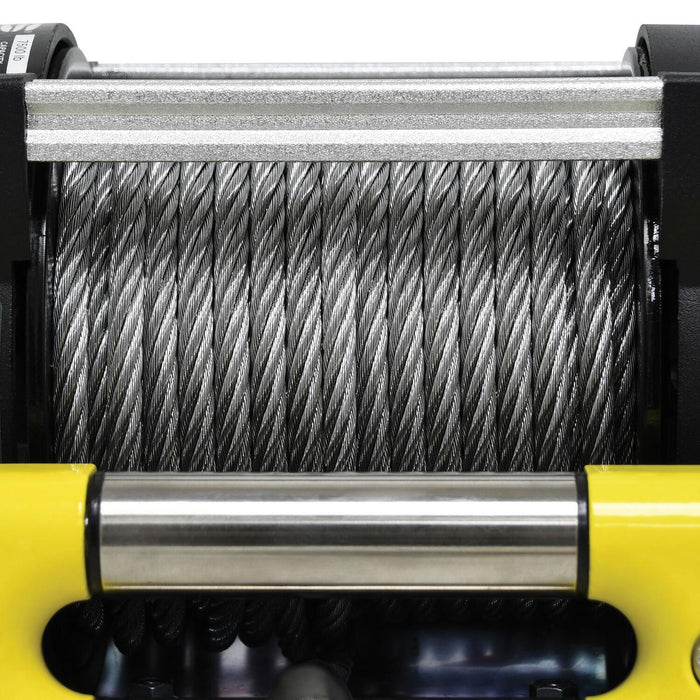

- Rope Material (Steel Wire Rope Yellow): Steel Wire

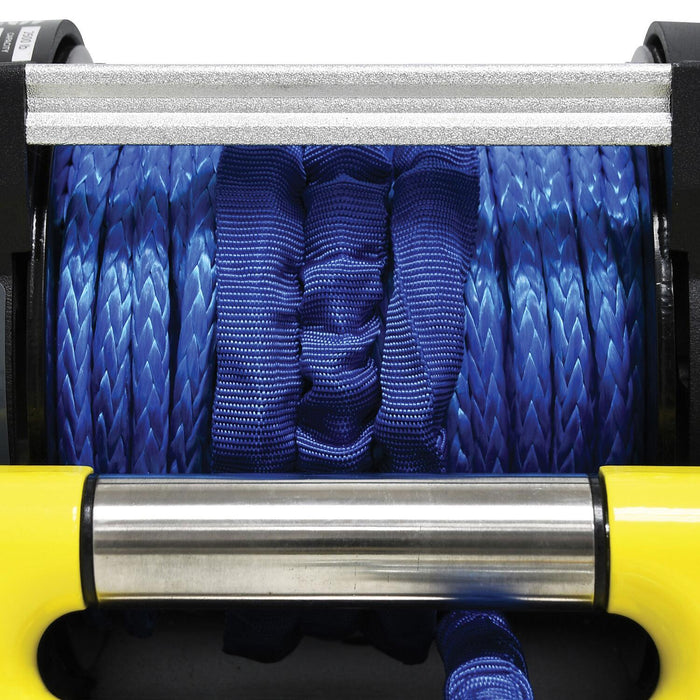

- Rope Material (Synthetic Rope Yellow): Synthetic
- Rope Length: 5/16 in x 55 ft
- Fairlead: Strong roller-coaster fairlead/hawse hybrid
- Remote Type: Wire
- Mounting Bolt Pattern: 4 bolt
- Color: Yellow
- Winch Hook: Heavy-Duty, Clevis Pinned Latched

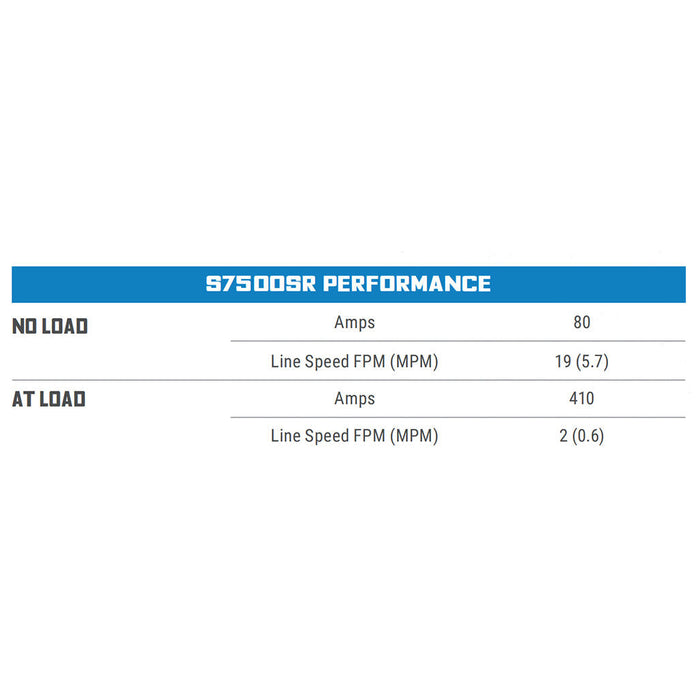

- Line Speed: 80 Amps Motor Draw/19 FPM (5.8 MPM)
- Weight (Steel Wire Rope Yellow): 56 lb
- Weight (Synthetic Rope Yellow): 40 lb

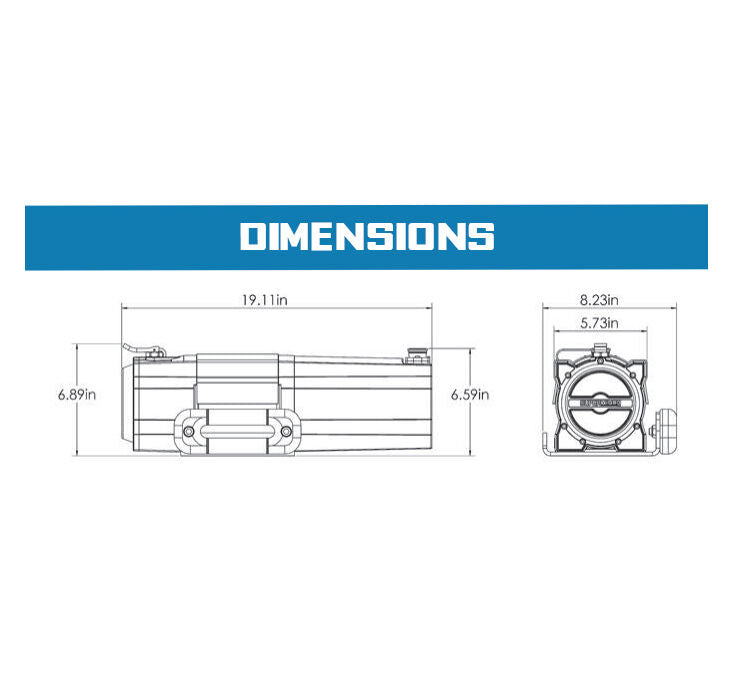

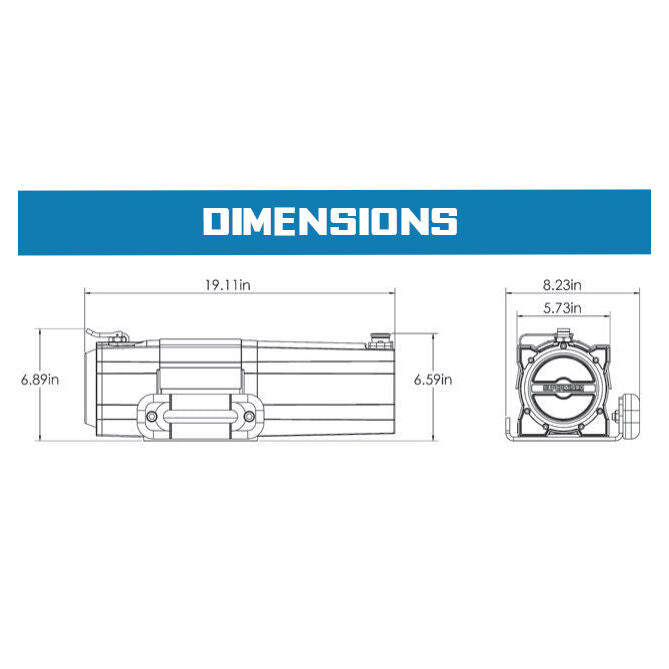

- Width: 13 in
- Height: 9 in
Part Numbers
- MPN 1475200
- MPN 1475201
