Superwinch S5500 Trailer Winch | 5,500 lb, 12V DC | P/N 1455200
by Superwinch
SKU 1455200
✓ In stock and ready to ship.
Original price
$781.00
-
Original price
$889.00
Original price
$781.00
$781.00
-
$889.00
Current price
$781.00

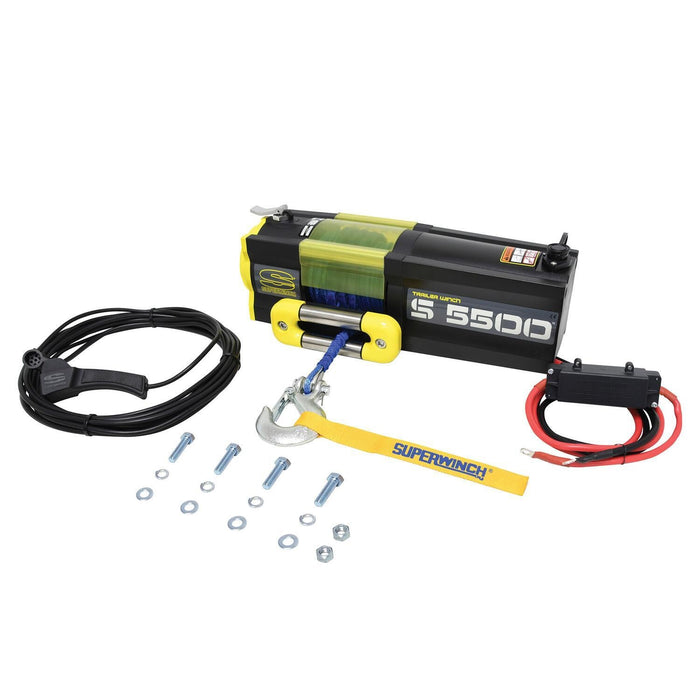

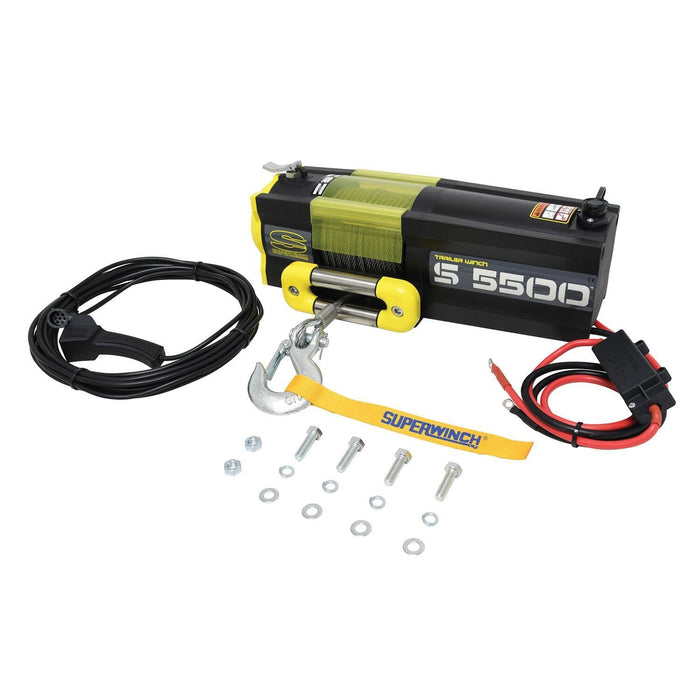

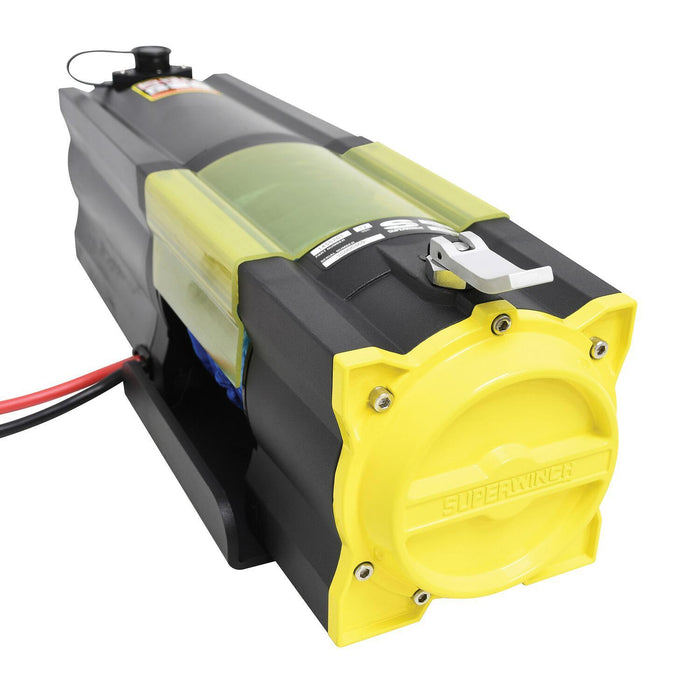

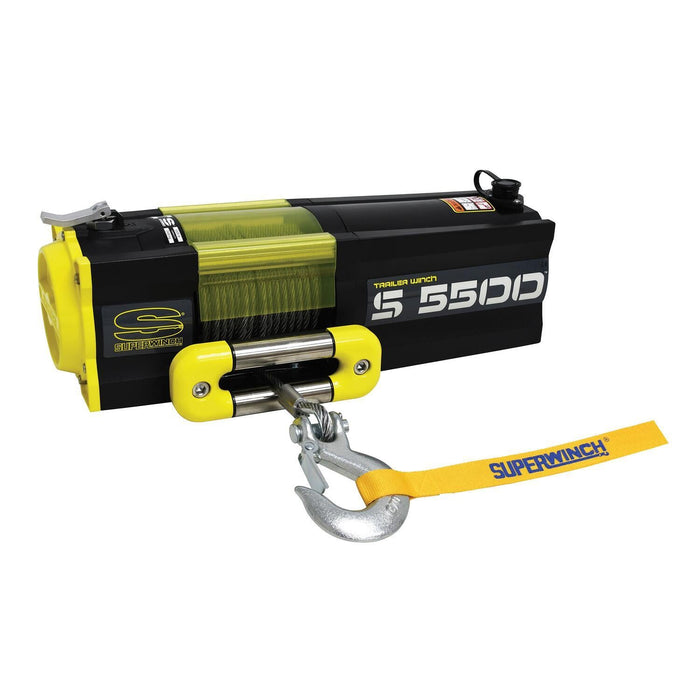

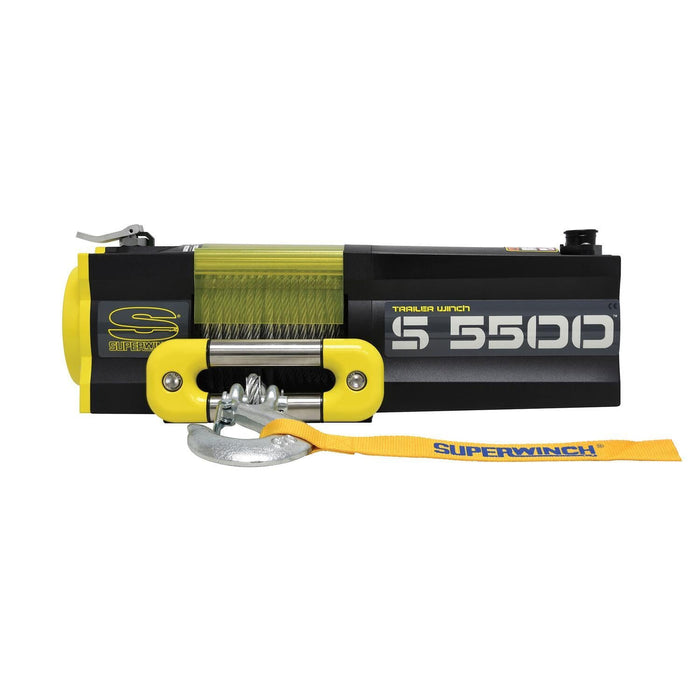

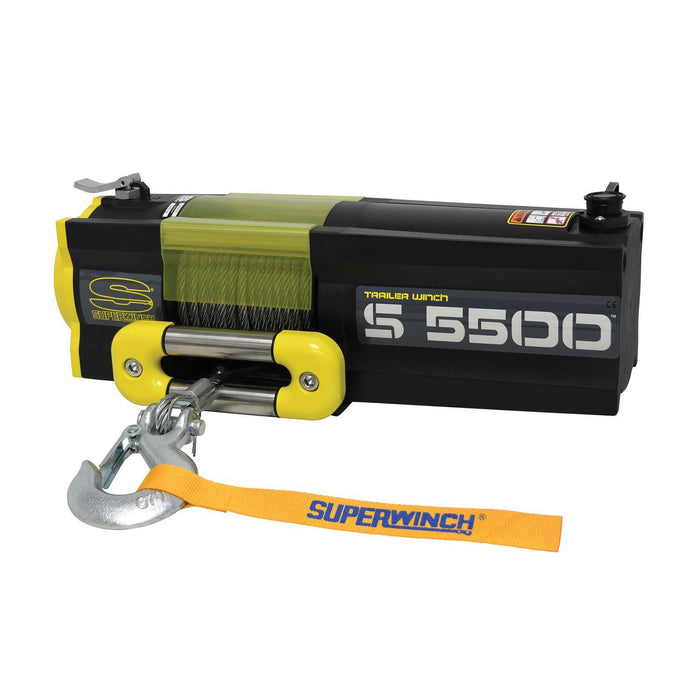

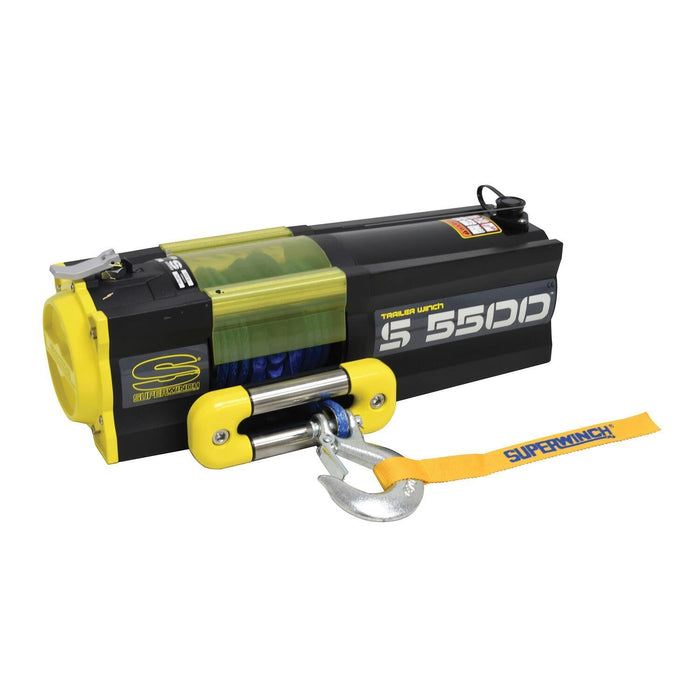

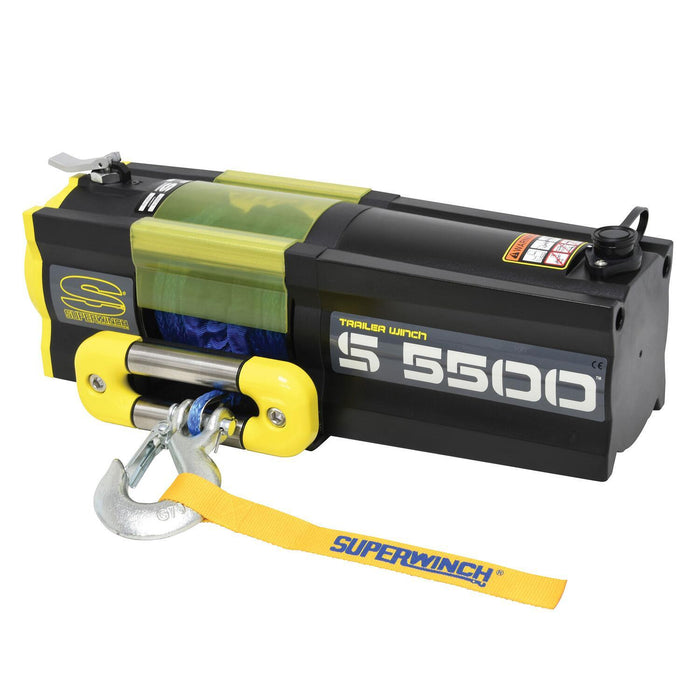

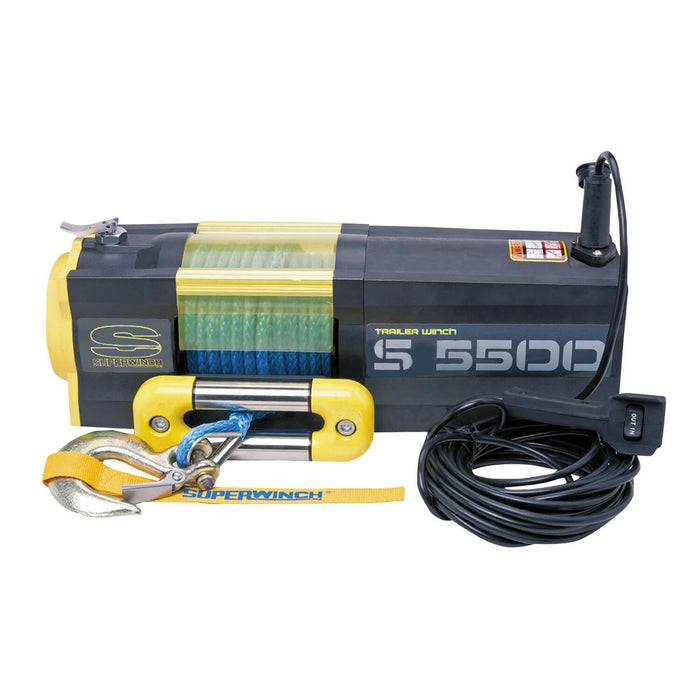

The S5500 is a 12V DC electric trailer winch with 5,500 lb capacity, powered by a 3.6 HP permanent magnet motor and an all steel 3-stage planetary gearbox. A tinted protective cover covers the cable, drum and operator's fingers. It is offered with steel wire rope or synthetic rope.
Features
- 5,500 lbs. capacity
- 3.6 HP permanent magnet motor provides dynamic braking
- 3-Stage planetary gearing with 159:1 ratio

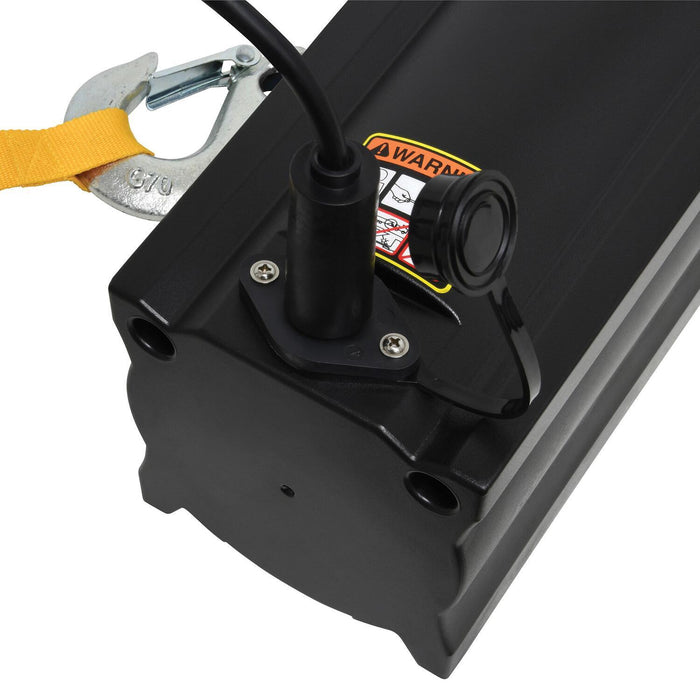

- Sealed solenoid

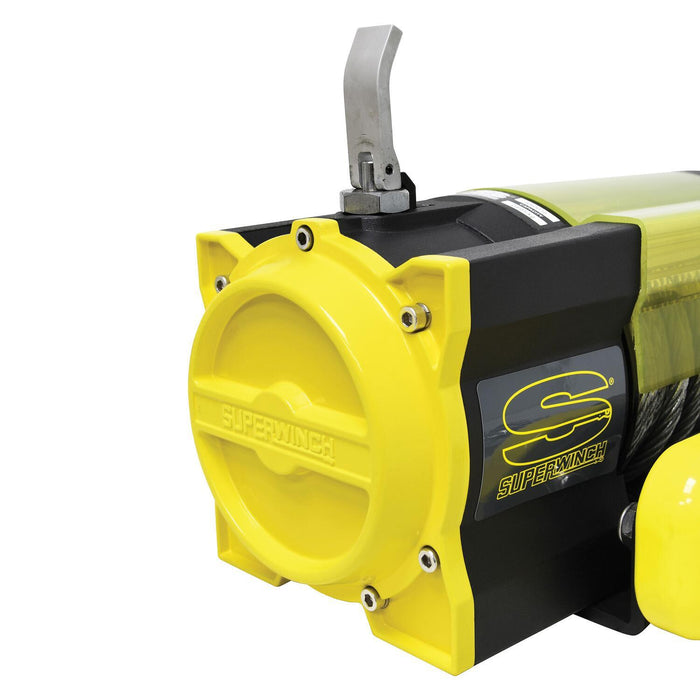

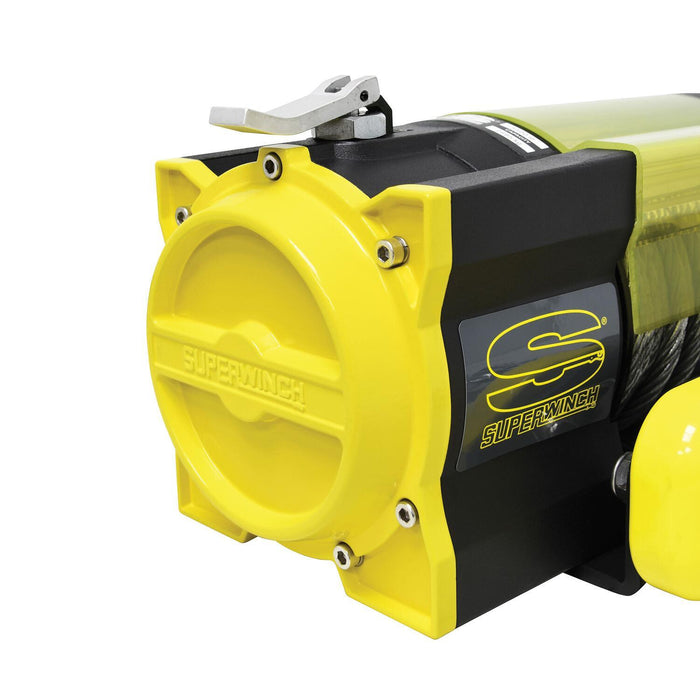

- Lever style freespool allows hand or foot operation
- Steel cut gears for better engagement and longevity
- Automatic load holding brake

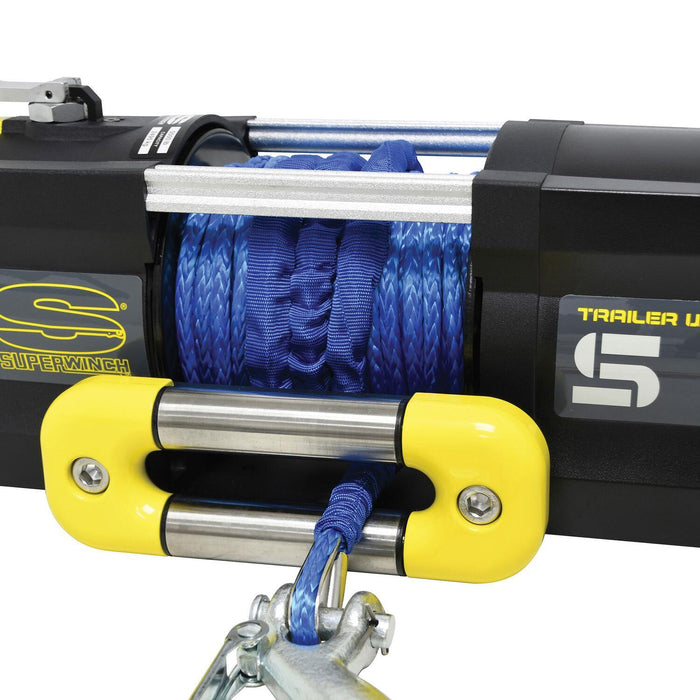

- Stainless steel 2-way roller fairlead

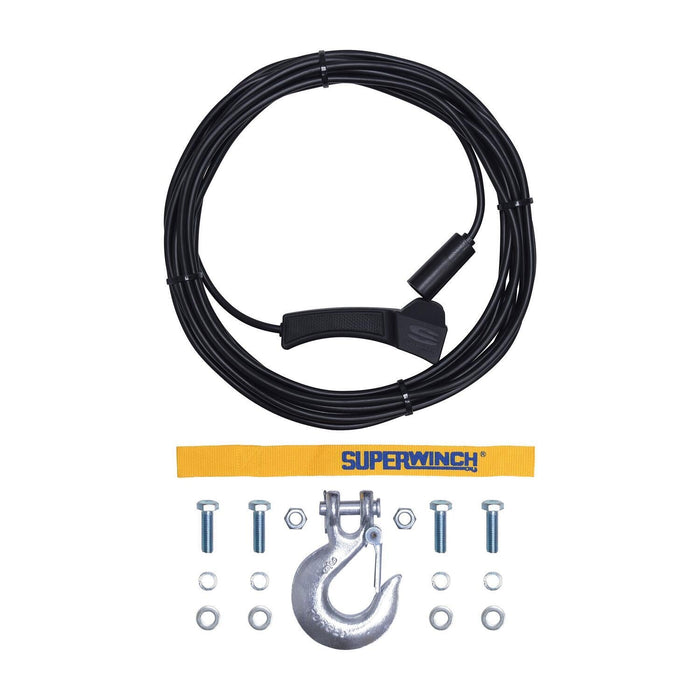

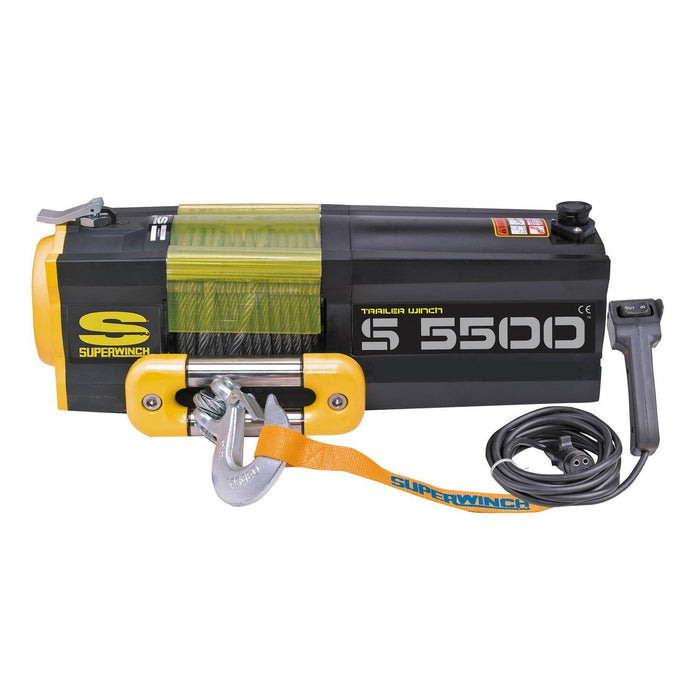

- 30 ft. wire remote
Specifications
- Winch Type: Electric
- Voltage: 12V DC
- Motor: 3.6 HP, permanent magnet motor, 12V DC
- Gear System: 3-stage planetary
- Gear Ratio (Steel Wire Rope Yellow): 153:1
- Gear Ratio (Synthetic Rope Yellow): 159:1

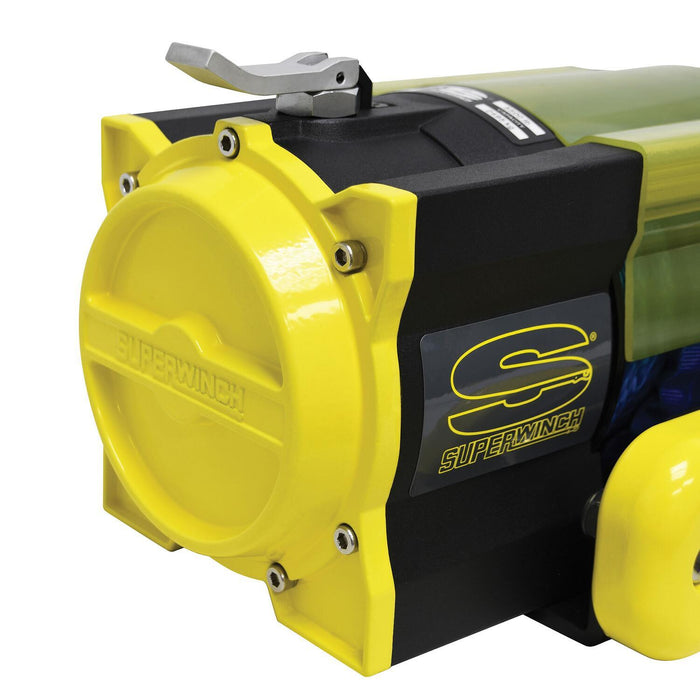

- Clutch: Kick-n-flip
- Brake System: Mechanical, Automatic Load Holding, Outside Drum

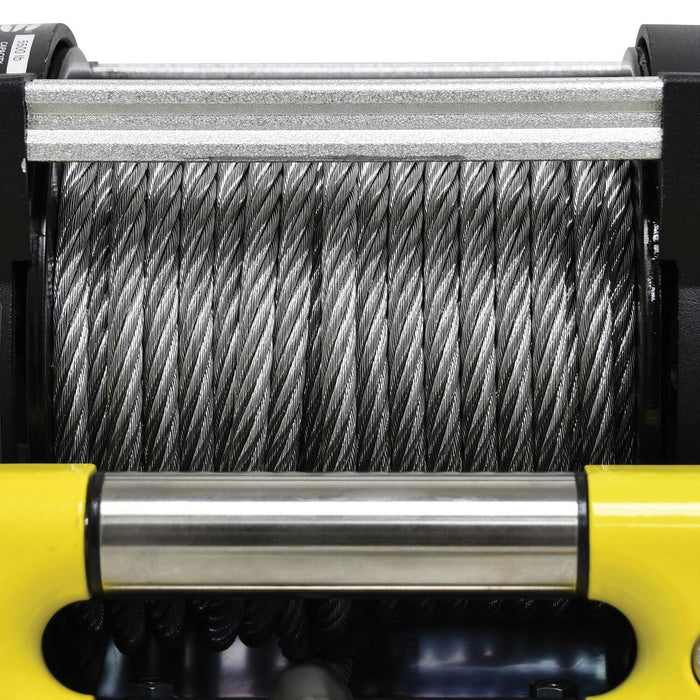

- Rope Material (Steel Wire Rope Yellow): Steel Wire

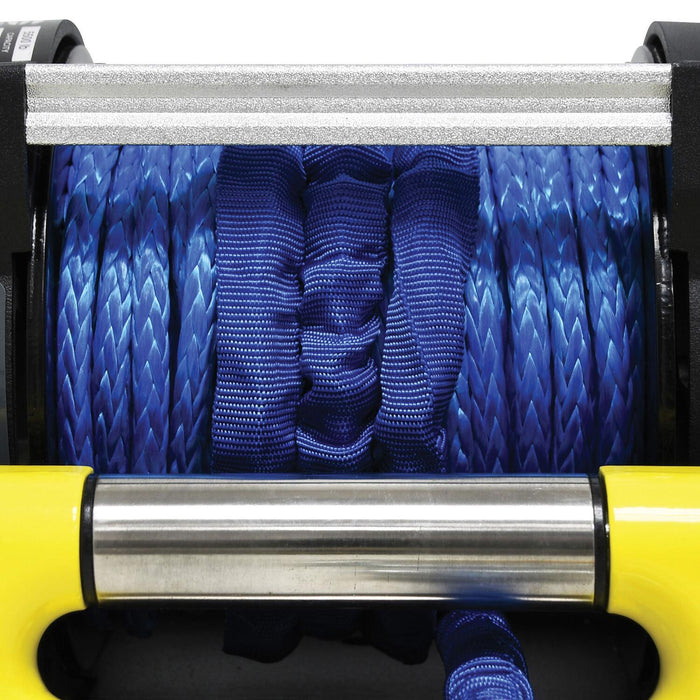

- Rope Material (Synthetic Rope Yellow): Synthetic
- Rope Length (Steel Wire Rope Yellow): 9/32 in x 60 ft (7.14mm x 18.3m)
- Rope Length (Synthetic Rope Yellow): 1/4 in x 60 ft (6.35mm x 18.3m)
- Fairlead: Strong roller-coaster fairlead/hawse hybrid

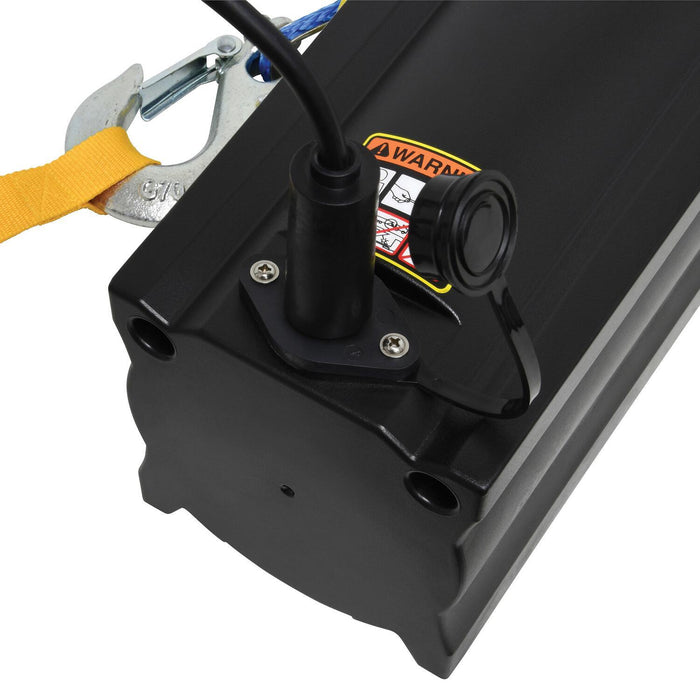

- Remote Type: Wire
- Mounting Bolt Pattern: 4 bolt
- Color: Yellow
- Winch Hook: Heavy-Duty, Clevis Pinned Latched

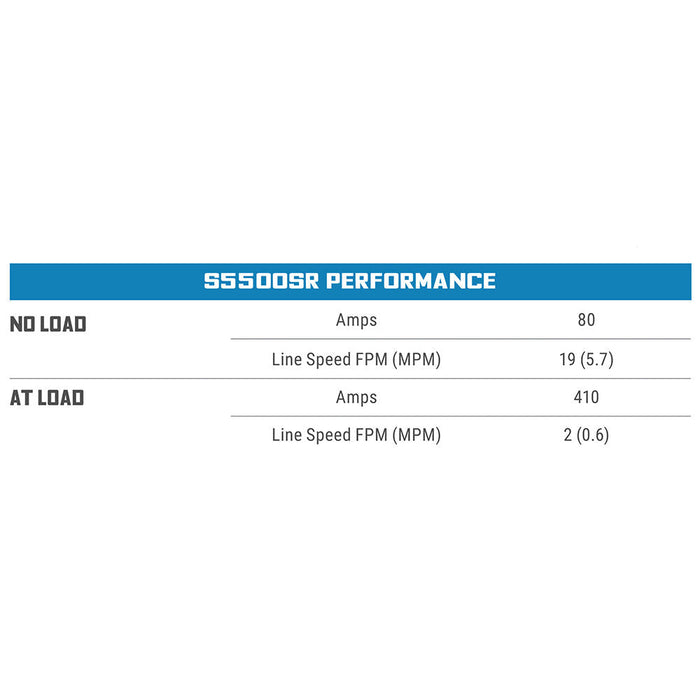

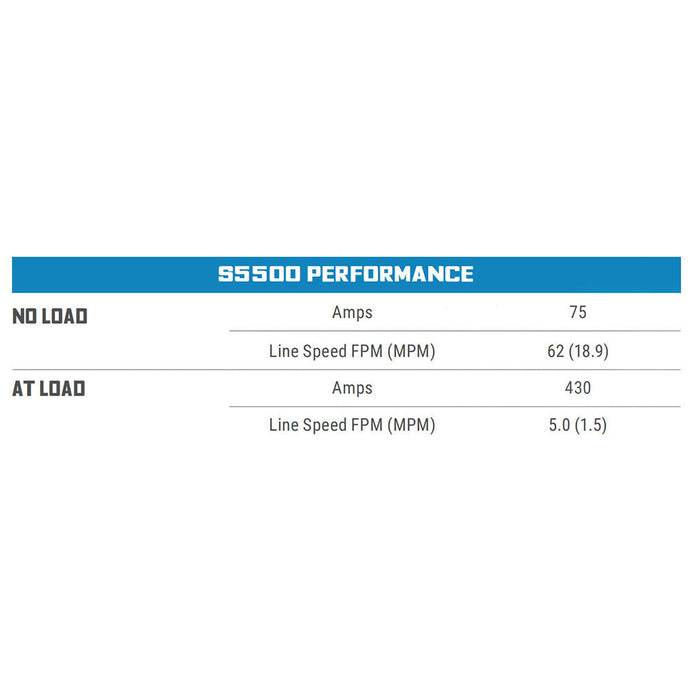

- Line Speed: 80 Amps Motor Draw/19 FPM (5.8 MPM)
- Weight (Steel Wire Rope Yellow): 56 lb
- Weight (Synthetic Rope Yellow): 40 lb

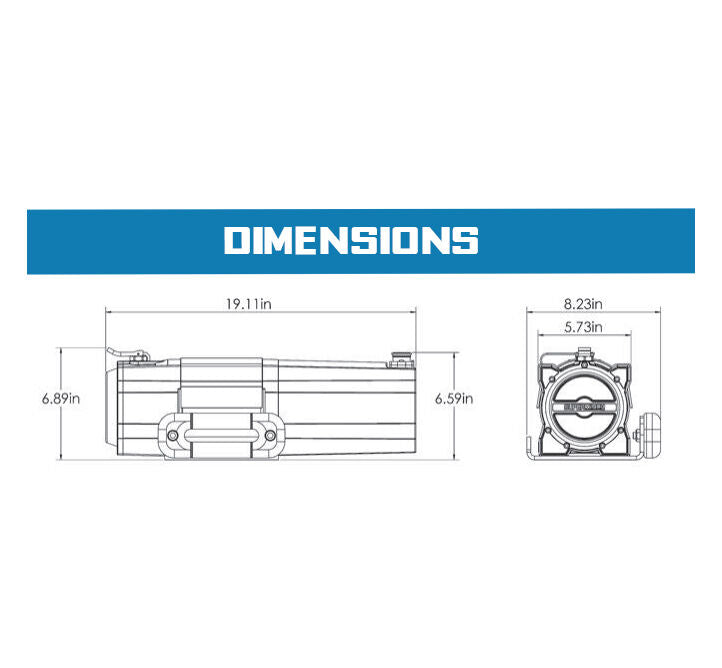

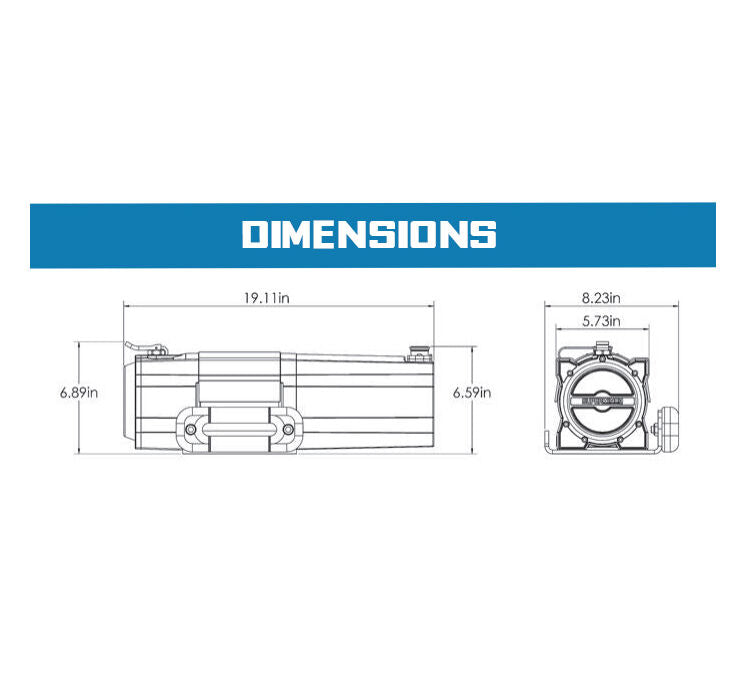

- Width: 13 in
- Height: 9 in
Part Numbers
- MPN 1455200
- MPN 1455201
