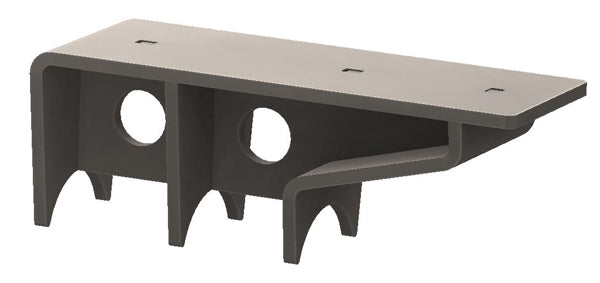

Standalone Super Duty Ram Mount

BARNES 4WD SD 60 Standalone Double Ended Ram Mount | P/N B4WK12540

by Barnes 4WD
SKU B4WK12540
✓ In stock and ready to ship.
$64.13 - $64.13
$64.13
$64.13 - $64.13
$64.13

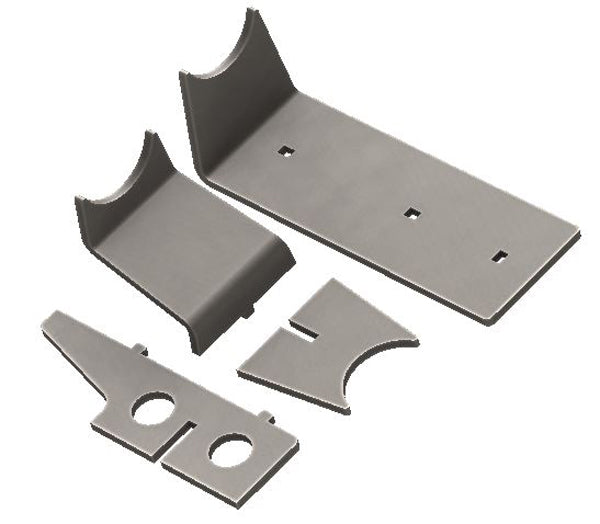

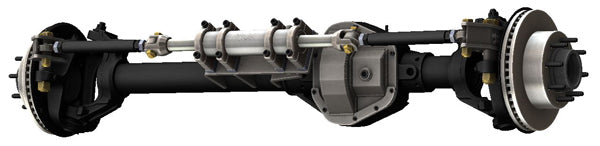

This kit is designed to mount a double ended ram to a Super Duty Dana 60 without using a truss or skid system. The Bracket centers the ram on the axle giving you equal length tie rods. All parts are CNC laser cut and CNC bent in house out of 3/8" American Steel. The bracket is designed to be used with a PSC Motorsports 2.5"x8" double ended cylinder (SCX2212 or SC2212). We have designed this double ended steering cylinder mount to use the proper geometry for full hydraulic steering. All parts come bare steel and require welding.

Part Numbers

  • MPN B4WK12540
Vehicle Fitment
