PRP Quad Layered Limit Strap | Universal | P/N F6

Just as bump stops are used to prevent damage to your suspension when it is traveling upwards, limit straps are used to protect your suspension when traveling downwards. When your vehicle goes off a jump or travels through rough terrain - the suspension drops down all the way (full droop). As the vehicles shock is fully extended, it causes all the weight of the wheels, tires, arms, axles, calipers etc. to pull down on the shock - putting all that force on the internal stop inside the shock housing. Over time this can cause stress and potential damage to your very expensive shocks.

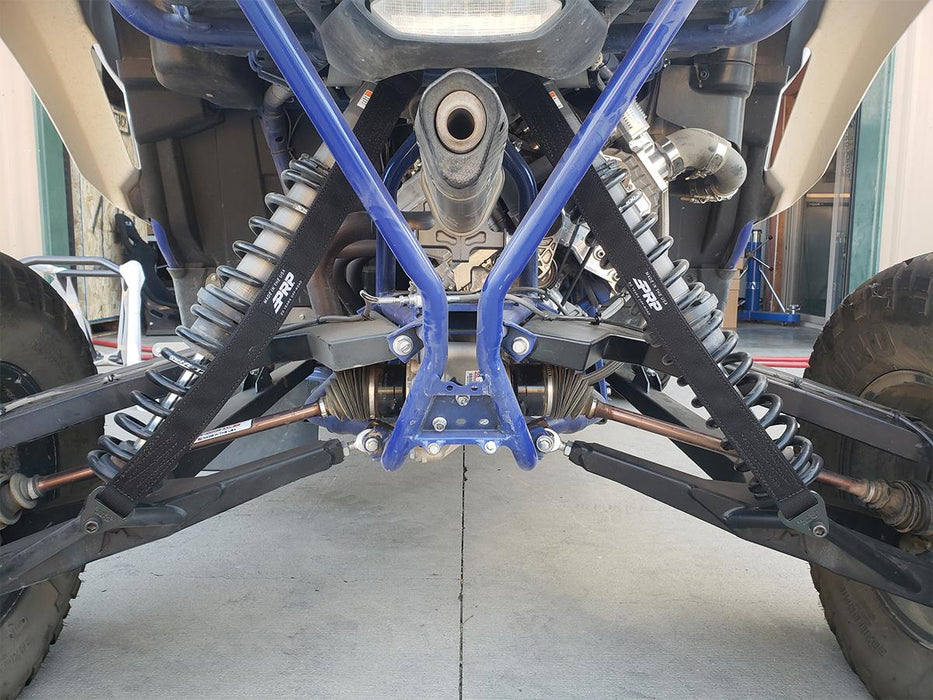

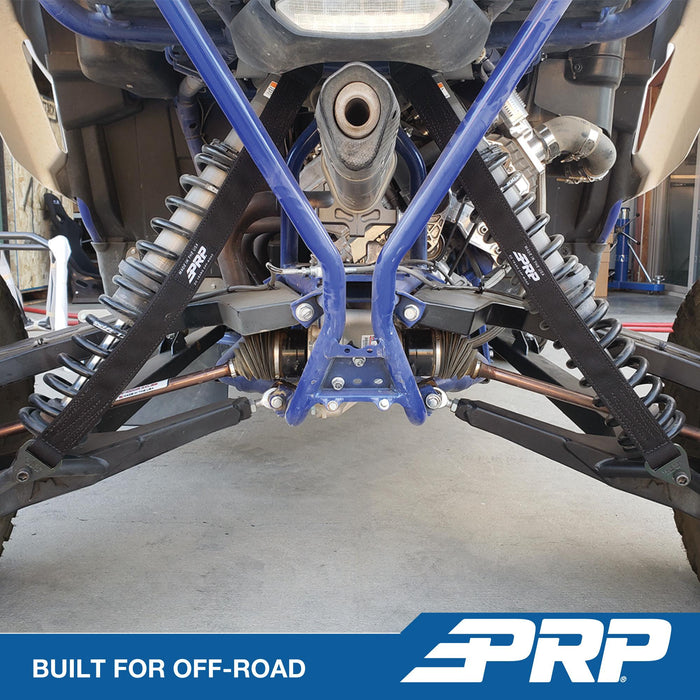

Limit Straps work by slightly limiting the distance the suspension can fully drop down. The strap is designed to be slightly shorter than the maximum distance of your suspensions full droop. So the limit strap takes the brunt of that weight/force, rather than your expensive shocks. Limiting straps can also prevent damage to your CV joints by limiting the amount of maximum angle on your axles.

All CV joints have a maximum amount of degree deflection that they can safely be run at with custom suspension setups. With many suspension setups, the deflection angle during full droop can go farther than the CV joint can handle - resulting in damage, shorter run life, and CV failure. Limit Straps can be used to shorten the distance that your suspension can fully drop down, so that the CVs no longer bind or become damaged. PRP Limit Straps are made from Quad Layers of thick webbing so that they can absorb the weight/force of the suspension during extreme off-roading (10,000lbs rating).

Features

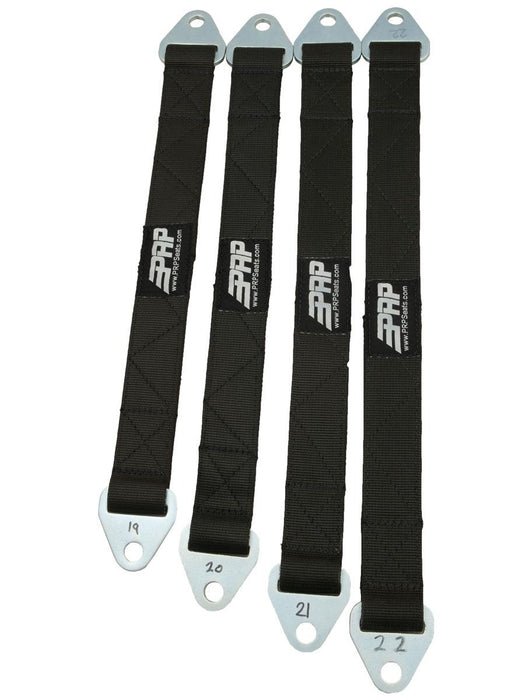

• Available in 6 to 44 Inch Lengths: So you can order the exact length you need for your vehicle.

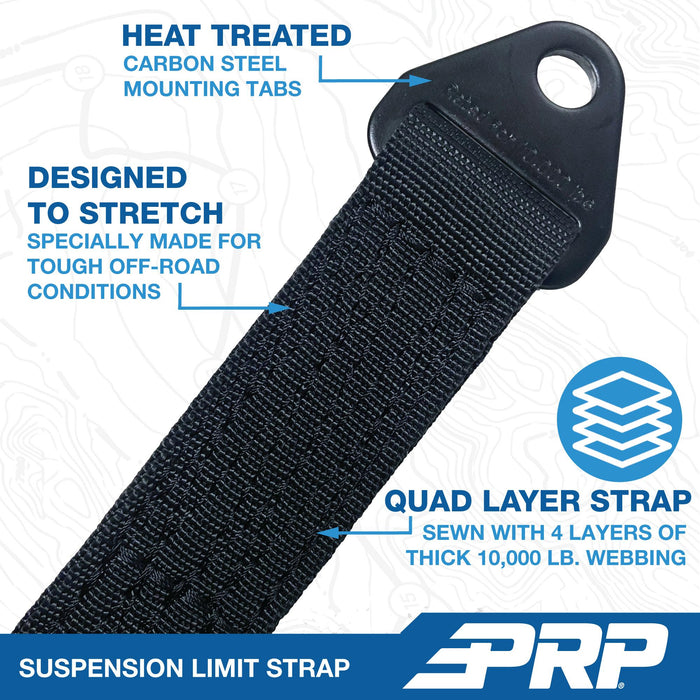

• Heat Treated Steel Tabs: Improved wear resistance, increased strength, and relief of internal stress. Coated Black

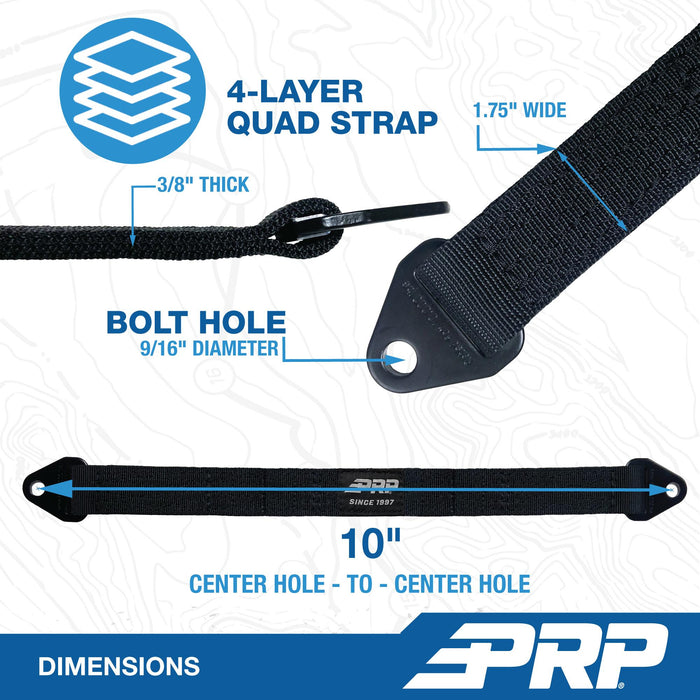

• Precise Measurements: Length is determined from center of each bolt eyelet

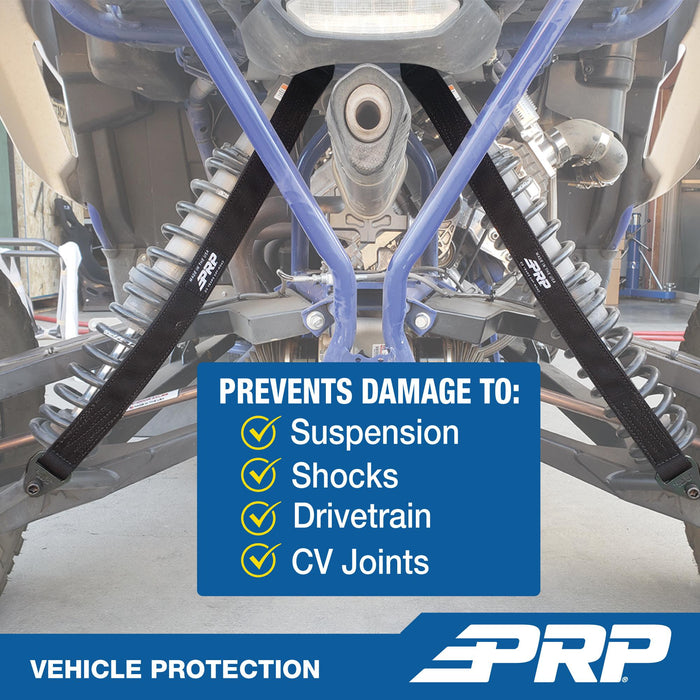

• Protect Your Suspension: Prevent unnecessary load on your shocks by limiting the possibility of over extending.
• Layered For Strength: 4 Layered webbing rated for 10,000lbs

What's Included

One Limit Strap

Choose the length from the menu. Each option is a separate PRP part number, listed below.

Part Numbers

• MPN F6 · UPC 603784102009
• MPN F7 · UPC 603784100944
• MPN F8 · UPC 603784102016
• MPN F9 · UPC 603784102023
• MPN F10 · UPC 603784101651
• MPN F11 · UPC 603784101668
• MPN F12 · UPC 603784101675
• MPN F13 · UPC 603784101682
• MPN F14 · UPC 603784101699
• MPN F15 · UPC 603784101705
• MPN F16 · UPC 603784101712
• MPN F17 · UPC 603784101729
• MPN F18 · UPC 603784101736
• MPN F19 · UPC 603784101743
• MPN F20 · UPC 603784101750
• MPN F21 · UPC 603784101767
• MPN F22 · UPC 603784101774
• MPN F23 · UPC 603784101781
• MPN F24 · UPC 603784101798
• MPN F25 · UPC 603784101804
• MPN F26 · UPC 603784101811
• MPN F27 · UPC 603784101828
• MPN F28 · UPC 603784101835
• MPN F29 · UPC 603784101842
• MPN F30 · UPC 603784101859
• MPN F31 · UPC 603784101866
• MPN F32 · UPC 603784101873
• MPN F33 · UPC 603784101880
• MPN F34 · UPC 603784101897
• MPN F35 · UPC 603784101903
• MPN F36 · UPC 603784101910
• MPN F37 · UPC 603784101927
• MPN F38 · UPC 603784101934
• MPN F39 · UPC 603784101941
• MPN F40 · UPC 603784101958
• MPN F41 · UPC 603784101965
• MPN F42 · UPC 603784101972
• MPN F43 · UPC 603784101989
• MPN F44 · UPC 603784101996
