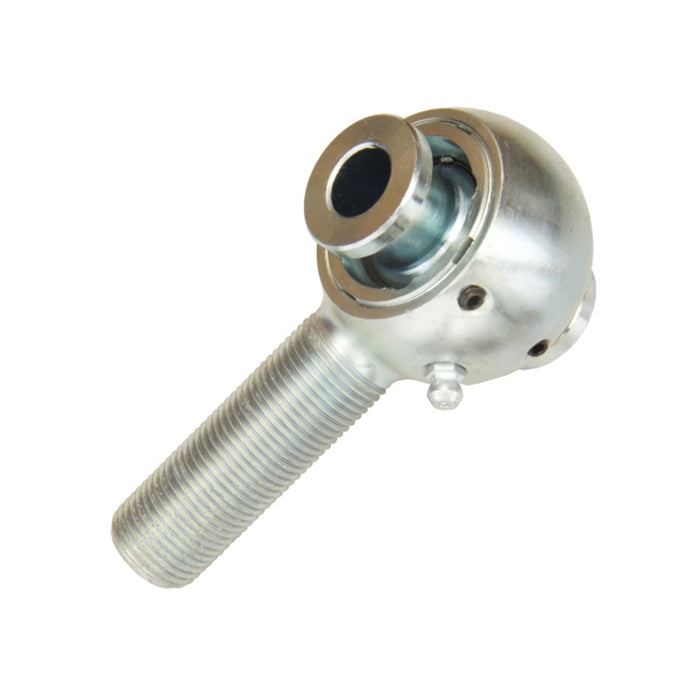

Pro Krawler Joint [7/8 SHANK], Antiwobble Universal Fitment RK05183
by Rock Krawler
SKU RK05183
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$48.68
$48.68
-
$48.68
Current price
$48.68
The Pro Krawler Joint is a revolutionary joint manufactured with the tightest tolerances for ultimate consistency. The chromoly joint housings are heat treated for increased strength and then zinc plated for corrosion resistance. The hard chrome plated inner ball is machined from billet 52100 steel for strength and durability. The inner raceway provides wear resistance, high frequency vibration isolation and durability. The body and clevis mounting width ratio of the Pro Krawler Joint is a key design feature which provides +/-20 degrees of misalignment. That’s a total of 40 degrees of misalignment per side.
- Tight tolerances for ultimate consistency
- Heat treated & zinc plated chromoly joint housing
- Wear resistance, vibration isolating raceway
- +/-20 degrees of misalignment
Part #
|
Description
|
COMMON OEM APPLICATION
|
Dim 1
|
Dim 2
|
Dim 3
|
Dim 4
|
Dim 5
|
Dim 6
|
Dim 7
|
Dim 8
|
Retail Price
|
RK05183
|
JOINT, ANTI-WOBBLE [7/8 SHANK] | JK TRACK BAR, FRAME SIDE | 0.875 -14 RHT | 2 | 14 MM | 1.625 | 1.25 | 2.5 | 3.625 | -- | $51.24 |
RK03499
|
JOINT, KRAWLER PRO [7/8 SHANK] | JK REAR UPPER CONTROL ARM |
0.875 -14 RHT
|
2
|
14 MM
|
2.375
|
1.25
|
2.5
|
3.625 | 20 | $51.24 |
RK03499L
|
JOINT, KRAWLER PRO [7/8 SHANK] | JK REAR UPPER CONTROL ARM | 0.875 -14 LHT | 2 | 14 MM | 2.375 | 1.25 | 2.5 | 3.625 | 20 | $51.24 |
RK03524
|
JOINT, KRAWLER PRO [7/8 SHANK] | JK FRONT UPPER CONTROL ARM | 0.875 -14 RHT | 2 | 12 MM | 2.00 | 1.25 | 2.5 | 3.625 | 20 | $51.24 |
RK03524L
|
JOINT, KRAWLER PRO [7/8 SHANK] | JK FRONT UPPER CONTROL ARM | 0.875 -14 LHT | 2 | 12 MM | 2.00 | 1.25 | 2.5 | 3.625 | 20 | $51.24 |
RK03544
|
JOINT, KRAWLER PRO [7/8 SHANK] |
XJ/MJ/ZJ/TJ/WJ/LJ FRONT UPPER CONTROL ARM ZJ/TJ/LJ REAR UPPER CONTROL ARM |
0.875 -14 RHT | 2 | 10 MM | 1.875 | 1.25 | 2.5 | 3.625 | 20 | $51.24 |
RK03544L
|
JOINT, KRAWLER PRO [7/8 SHANK] |
XJ/MJ/ZJ/TJ/WJ/LJ FRONT UPPER CONTROL ARM ZJ/TJ/LJ REAR UPPER CONTROL ARM |
0.875 -14 LHT | 2 | 10 MM | 1.875 | 1.25 | 2.5 | 3.625 | 20 | $51.24 |
