Offset Axle Panhard Bracket

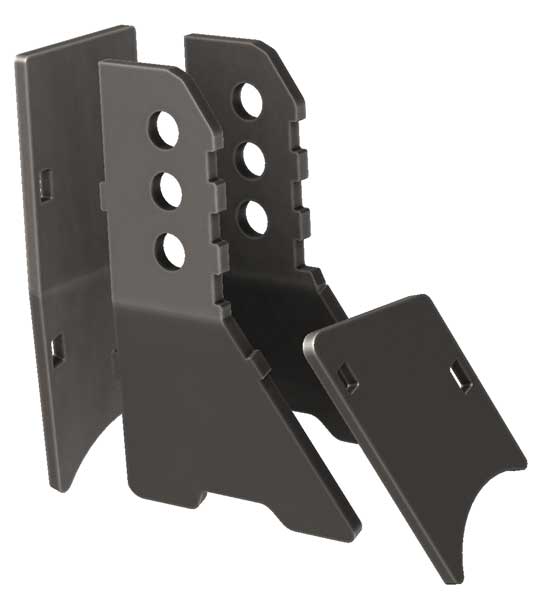

BARNES 4WD Offset Axle Panhard Bracket 1/4" | P/N B4WK1050

by Barnes 4WD
SKU B4WK1050
✓ In stock and ready to ship.
$33.39 - $33.39
$33.39
$33.39 - $33.39
$33.39

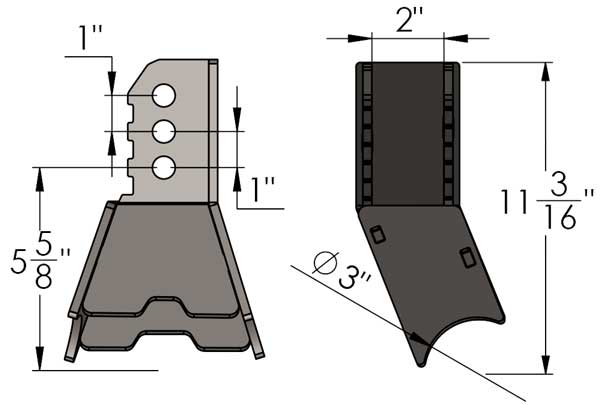

This is our idea of the correct way to make an Offset Panhard / Trackbar bracket, it seems like 3 out of 4 need to be on the leading edge of the axle for clearance issues. The center of the heim will be 5-5/8, 6-5/8 or 7-5/8 inches vertically from the center of the axle tube and 3.5" forward of the center of the axle tube. They are cut to fit a 3" axle tube so they can be modified to fit any tube diameter, fabricated from 1/4" plate, and bent perfectly so you don't have to play with the grinder to make them fit! They have two drain holes built in. These are setup for a 2" ID and have 5/8 inch bolt holes so just about any heim will fit with minimal misalignment.

Part Numbers

  • MPN B4WK1050
Vehicle Fitment
