ICON V.S. 2.5 Series Coilover Kit | 1.25-3 Inch Lift | Rear | Remote Reservoir with CDEV | Pair | Ford Bronco (2021-2026) | P/N 48710E

The ICON V.S. 2.5 Series Coilover Kit (1.25-3 Inch Lift, Rear, Remote Reservoir with CDEV, Pair) fits the Ford Bronco 2021-2026. Increased wheel travel (up to 14”) and ride quality over stock.

At a Glance

• Brand: ICON
• Part Number: 48710E
• Product Type: Coilovers
• Fits: Ford Bronco 2021-2026
• Country of Origin: United States

Features

• Increased wheel travel (up to 14”) and ride quality over stock
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting or welding necessary for installation
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

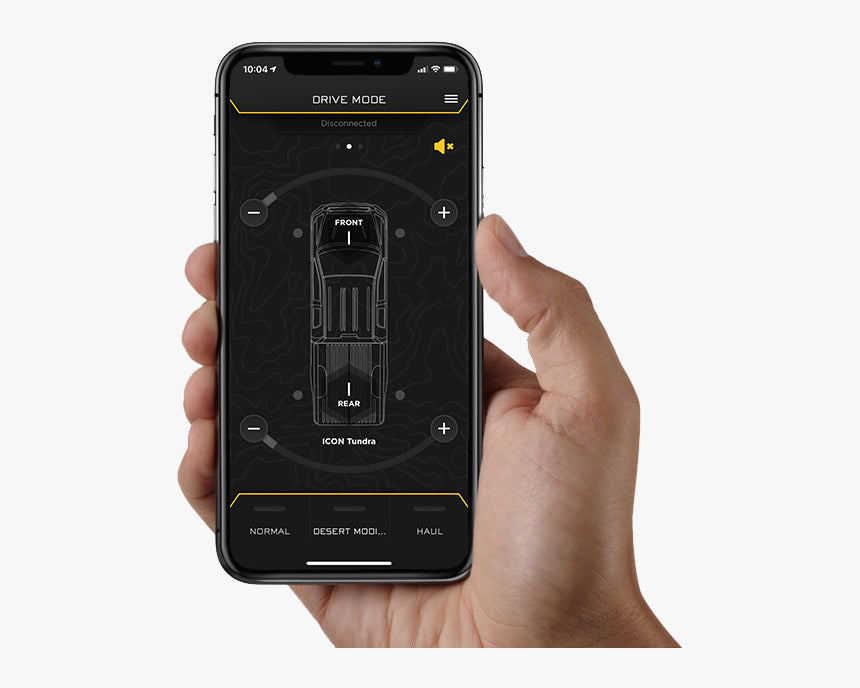

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25” of rear lift on Sasquatch Broncos
• Unique ICON engineered triple rate coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft

Specifications

• Active or Passive Suspension: Active
• Cylinder Finish: Cadmium Plated
• Damping Adjustment Type: Electronic
• Damping Type: Oil
• Grade Type: Performance
• Cylinder Material: Steel
• Adjustable Compression: Yes
• Adjustable Damping: Yes
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 IN
• Coil Over Springs Included: Yes
• Compressed Length: 18.54 IN
• Cylinder Color: Silver
• Extended Length: 29.21 IN
• Gas Charged: Yes
• Includes Bump Stop: Yes
• Internal Construction Type: Single Tube
• Lower Mount Type: Eyelet
• Material: Aluminum
• Material: Steel
• Maximum Lift: 3 IN
• Maximum Ride Height Raising Distance: 3 IN
• Minimum Lift: 1.25 IN
• OEM Wheels & Tires Fitment: Yes
• Travel Length: 10.67 IN
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
• Rear Spring Rate: 167 PPI
• Rear Spring Rate: 195 PPI
• Rear Spring Rate: 250 PPI
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Remote Reservoir: Yes
• Reservoir Style: Remote
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Shaft Diameter: 0.875 IN
• Shock Absorber Body End Measuring Point: Center of Eylet
• Shock Absorber Rod End Measuring Point: Top of Mounting Plate
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Progressive Triple Rate

Fitment

• Ford Bronco (2021-2026)

Part Numbers

• MPN 48710E · UPC 00840103414133
