ICON Stage 1 Suspension System | 2 Inch Lift | Jeep Gladiator (2020-2023) | P/N K22101

The ICON Stage 1 Suspension System (2 Inch Lift) is a lift kit for the Jeep Gladiator 2020-2023. 2" front lift height over stock.

At a Glance

• Brand: ICON
• Part Number: K22101
• Product Type: Lift Kits
• Fits: Jeep Gladiator 2020-2023
• Country of Origin: United States

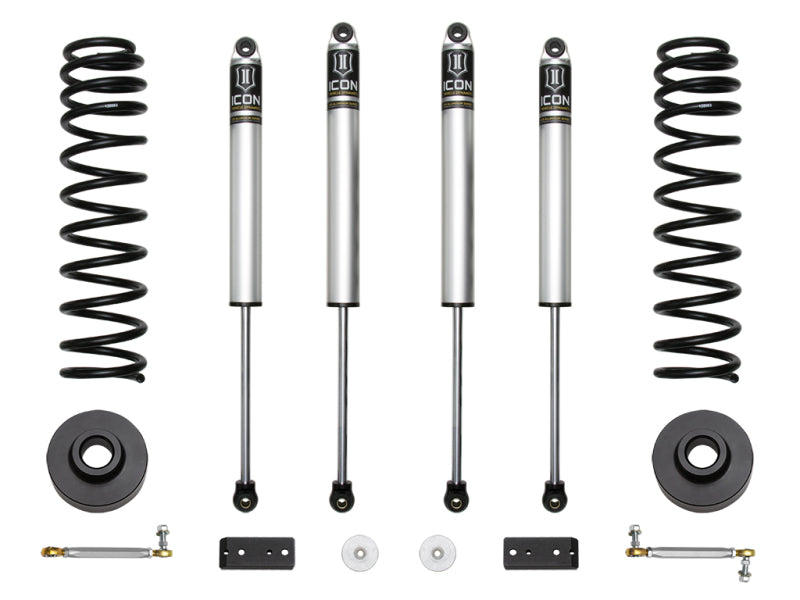

Features

• 2" front lift height over stock
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Fits 35" tires (37" with extended bump stop spacer kit)
• 33% front, 23% rear increase in wheel travel
• Improves on and off-road ride quality over stock
• Billet aluminum rear 1.375" coil spacers eliminate the factory rake
• 2.0 Aluminum Series shocks with vehicle specific valving
• Adjustable, billet aluminum front sway bar links
• 100% bolt-on system makes for an easy install

Specifications

• Active or Passive Suspension: Passive
• Coil Spring Color: Black
• Coil Spring End 1 Type: Open
• Coil Spring End 2 Type: Open
• Coil Spring Material: Steel
• Coil Spring Maximum Inside Diameter: 4 IN
• Coils Quantity Front: 2
• Front Reservoir Style: Internal
• Front Shock Body Diameter: 2 IN
• Front Spring Rate: 140 PPI
• Front Spring Rate: 200 PPI
• Front Spring Rate Type: Progressive Dual Rate
• Grade Type: Performance
• Maximum Lift: 2 IN
• Maximum Lift Front: 2 IN
• Maximum Lift Height Front: 2 IN
• Maximum Lift Rear: 1.38 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Internal
• Bushing(s) Included: Yes
• Rear Shock Body Diameter: 2 IN
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit part # 22071)
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.5" Backspace / -6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 w/ 4.5" Backspace / -12mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

Fitment

• Jeep Gladiator (2020-2023)

Part Numbers

• MPN K22101
