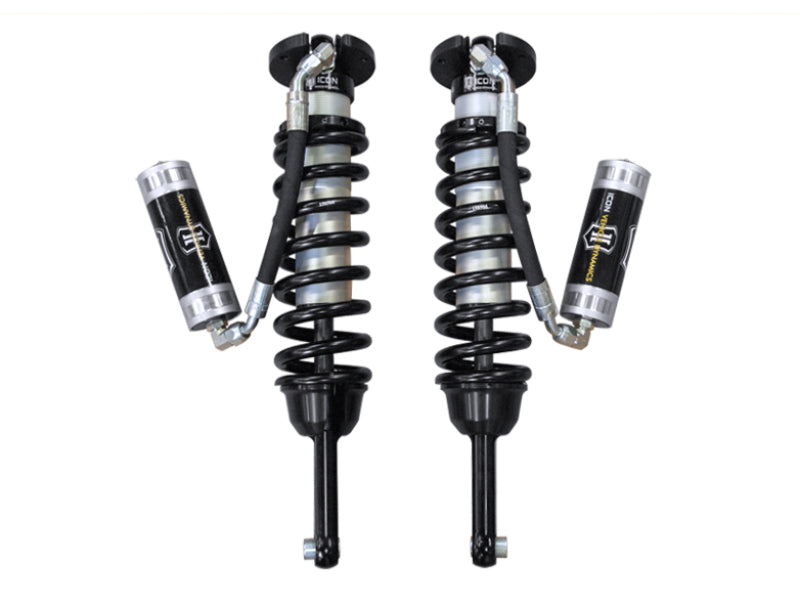

ICON V.S. 2.5 Series Extended Travel Coilover Kit | Remote Reservoir | P/N 58747

This listing is for the ICON V.S. 2.5 Series Extended Travel Coilover Kit (Remote Reservoir). Adjustable coilovers yield 0-3.5" of front lift height.

At a Glance

• Brand: ICON
• Part Number: 58747
• Product Type: Coilovers
• Country of Origin: United States

Features

• Adjustable coilovers yield 0-3.5" of front lift height
• Bolt-in design makes for an easy install into OEM shock location
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• Extended Travel length requires installation of aftermarket front upper control arms
• External reservoir to attain cooler operating temperatures during extended off-road use
• Corrosion resistant CAD plated shock body with 7/8" shaft
• FK Rod End bearings provide extended longevity and minimal deflection
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life

Specifications

• Active or Passive Suspension: Passive
• Adjustable Damping: NO
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 IN
• Coil Over Springs Included: Yes
• Compressed Length: 17.42 IN
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Type: Oil
• Extended Length: 22.57 IN
• Front Spring Rate: 650 PPI
• Gas Charged: yes
• Grade Type: Performance
• Internal Construction Type: Single Tube
• Lower Mount Type: Eyelet
• Material: Aluminum
• Maximum Lift: 3.5 IN
• Maximum Ride Height Raising Distance: 3.5 IN
• Minimum Lift: 0 IN
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Remote Reservoir: Yes
• Reservoir Style: Remote
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
• Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
• Shaft Diameter: 0.875 IN
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Travel Length: 5.16 IN
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive

Fitment

• Lexus GX460 (2010-2023)
• Toyota 4Runner (2010-2024)
• Toyota FJ Cruiser (2010-2014)

Part Numbers

• MPN 58747 · UPC 00840103404431
