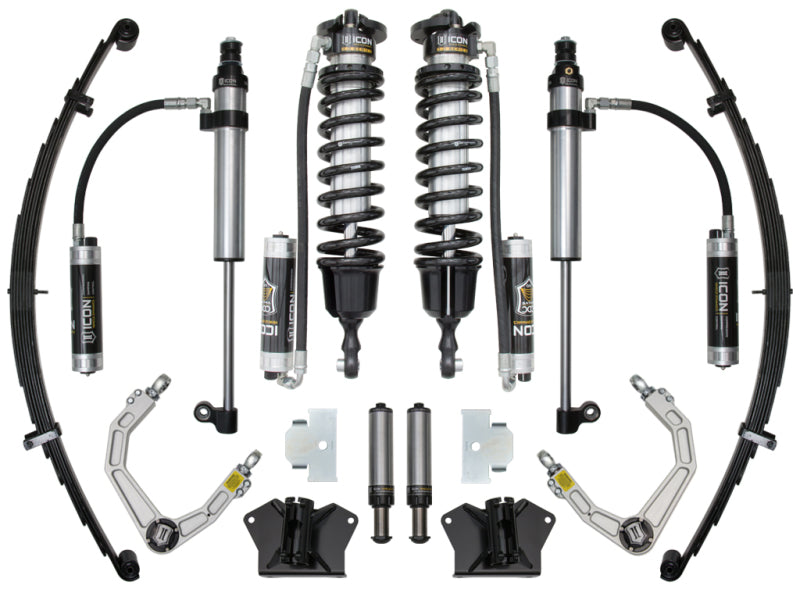

ICON 3.0 Stage 2 Suspension System | 1.63-3 Inch Lift | Billet | Toyota Tundra (2007-2021) | P/N K53166

The ICON 3.0 Stage 2 Suspension System (1.63-3 Inch Lift, Billet) is a lift kit for the Toyota Tundra 2007-2021. Increased wheel travel and ride quality over stock.

At a Glance

• Brand: ICON
• Part Number: K53166
• Product Type: Lift Kits
• Fits: Toyota Tundra 2007-2021
• Country of Origin: United States

Features

• Increased wheel travel and ride quality over stock
• Shocks are fully rebuildable and revalveable
• Bolt-on system means no cutting or welding necessary for install

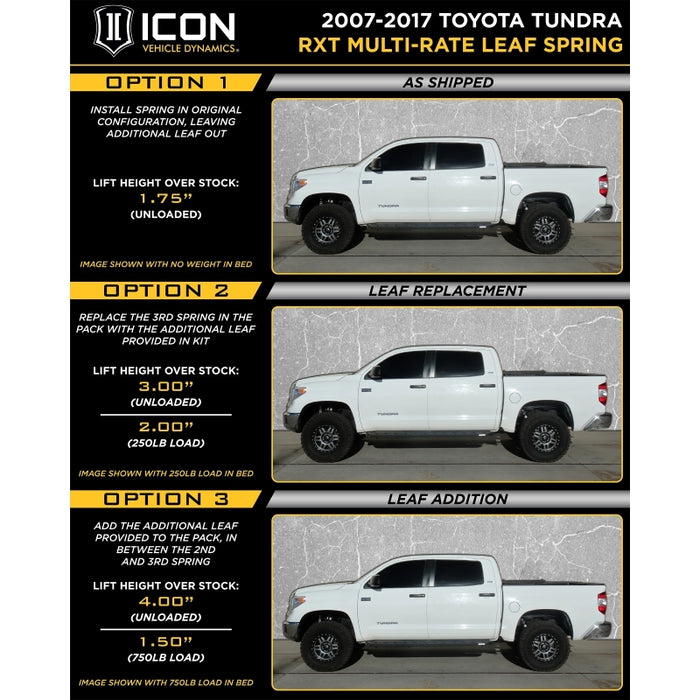

• 3 user-adjustable rear leaf spring rates for unique vehicle configurations
• Military wrap front leaf spring eyelets for increased durability
• Galvanized leaf separators reduce friction and aid in corrosion resistance
• Leaf spring tip inserts reduce noise and increase ride comfort
• Increased wheel travel when used with RXT shock without sacrificing up-travel
• Unique side-mounted lower eyelet allows for increased rear shock travel while utilizing factory mounting location
• 2.0 Series rear hydraulic bump stops reduces rear end ‘kick’ and improves overall performance
• 3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
• CDC Valve technology allows for 10 settings of quick and easy compression damping adjustment
• Adjustable coilovers provide 1.63-3" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• 2.5 Aluminum Series remote reservoir RXT rear shocks with impact extruded aluminum cylinders and 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection

Specifications

• Front Spring Rate: 600 PPI
• Front Spring Rate Type: Linear
• Grade Type: Performance
• Leaf Spring Color: Black
• Leaf Spring Leaf Quantity: 2
• Leaf Spring Material: Steel
• Maximum Lift: 3.5 IN
• Maximum Lift Height Front: 3 IN
• Maximum Lift Height Rear: 4 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Active or Passive Suspension: Passive
• Adjustable Compression: Yes
• Adjustable Control Arm: Yes
• Adjustable Damping: Yes
• Bushing(s) Included: Yes
• Coil Spring Color: Black
• Coil Spring End 1 Type: Closed
• Coil Spring End 2 Type: Closed
• Coil Spring Material: Steel
• Coil Spring Maximum Inside Diameter: 3.625 IN
• Coils Quantity Front: 2
• Damping Adjustment Type: Manual
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 3 IN
• Rear Reservoir Style: Remote
• Rear Shock Body Diameter: 2.5 IN
• Rear Spring Rate Type: Variable
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

Fitment

• Toyota Tundra (2007-2021)

Part Numbers

• MPN K53166
