1 Ton Superduty Aluminum Steering

BARNES 4WD High Steer Aluminum Tie Rod Kit 2005-2022 Superduty Dana 60 Axle | P/N B4WK12502

by Barnes 4WD
SKU B4WK12502
✓ In stock and ready to ship.
$262.18 - $262.18
$262.18
$262.18 - $262.18
$262.18

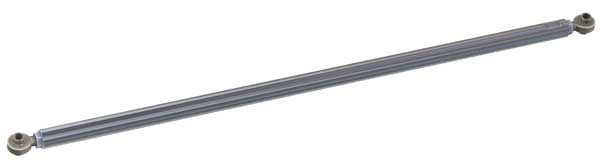

Barnes 4wd is proud to introduce our Superduty Dana 60 axle 7075-T6 aluminum high steer tie rod kit!  This kit is designed to be used with our high steer arms for the ultimate in steering for your Dana 60 axle.  Manufactured from 1-3/4 inch diameter aircraft grade 7075 aluminum with a T-6 temper, giving the tie rod exceptional strength and the resilience to spring back after a hard hit and keep on going.  Two of our 7/8 inch magnum series heims are included with extended threaded shanks for maximum thread engagement.  The overall length of the aluminum tie rod is 52-7/8 inches without the heims installed.

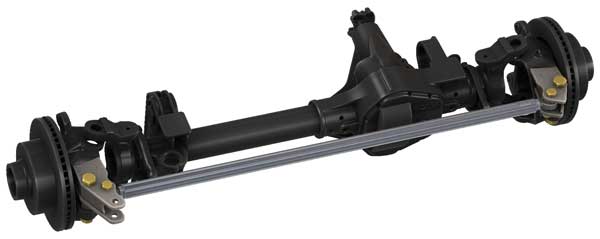

This kit is only compatible with our Superduty Dana 60 high steer arm kits on axles 2005-up from F-250, and F-350 pickups, it cannot be used in the stock steering location the tie rod will hit the differential cover!

Kit Contents:
1  7075 T-6 Aluminum tie rod 52-7/8 inches long

Part Numbers

  • MPN B4WK12502
Vehicle Fitment
