BARNES 4WD Hex Capture Washers | P/N B4W188894

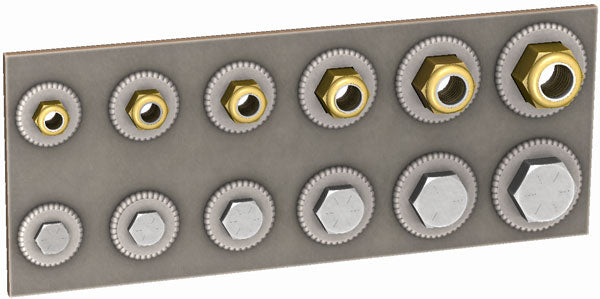

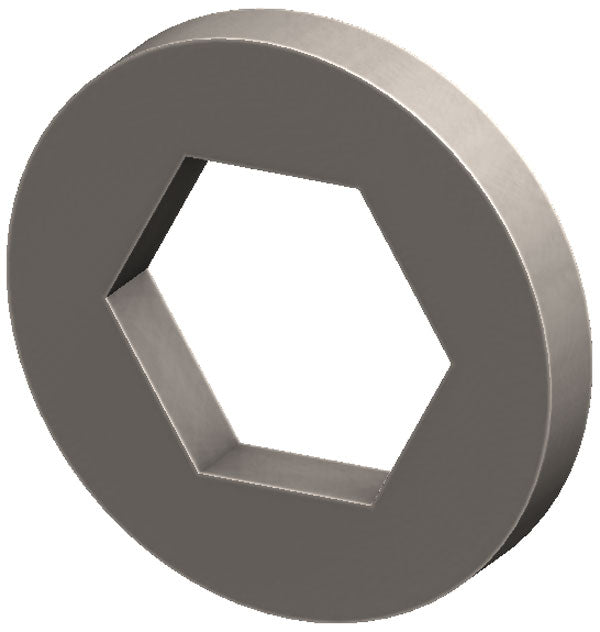

These hex capture washers are a great way to keep a bolt or nut from spinning on your rig. Simply weld the washer in place around the outer edge for a strong permanent capture. Select the size of the hex cutout in the drop down that best fits the bolt head or nut for your application. These washers are cut in-house from 3/16" steel and will ship bare, ready to be welded.

Most standard bolt heads and nuts will have the following hex size:

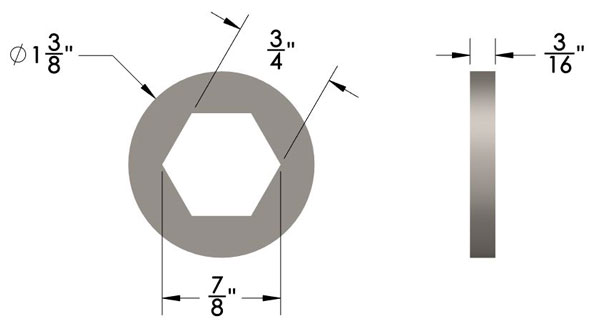

1/2" Bolt and Nut- 3/4" Hex

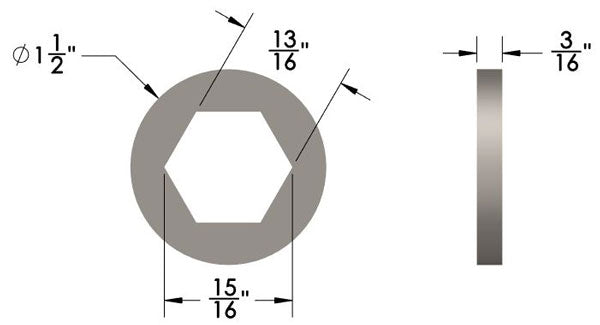

9/16" Bolt- 13/16" Hex

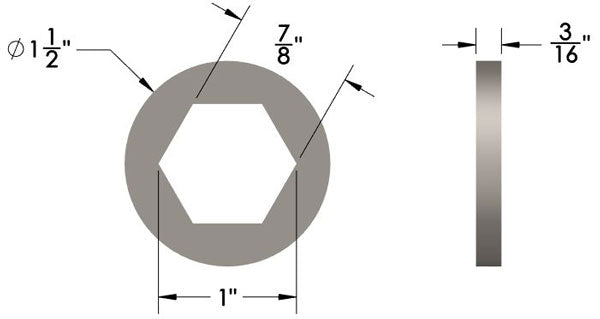

9/16" Nut- 7/8" Hex

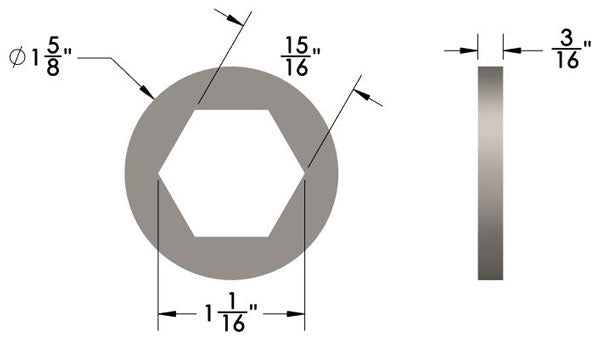

5/8" Bolt and Nut- 15/16" Hex

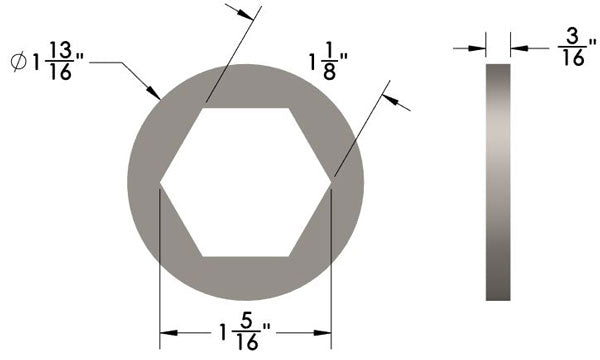

3/4" Bolt and Nut- 1-1/8" Hex

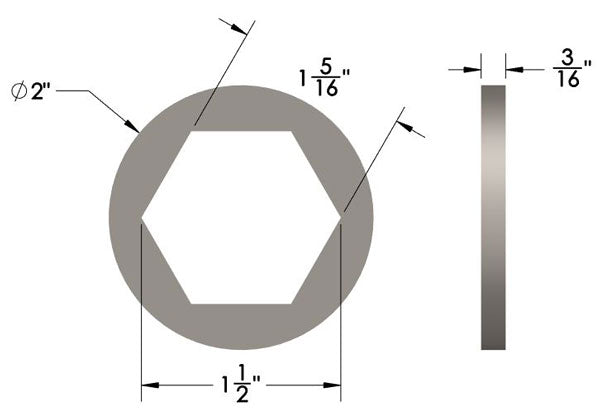

7/8" Bolt and Nut- 1-5/16" Hex

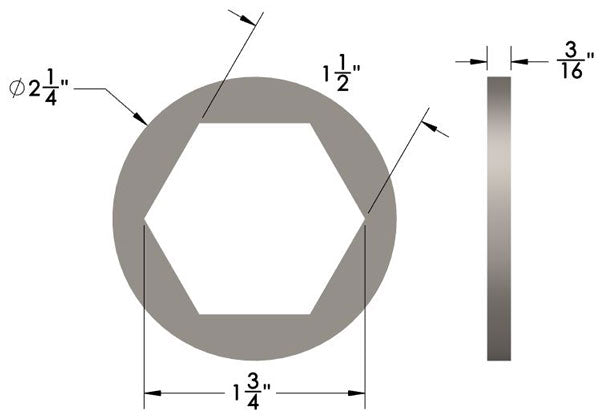

1" Bolt and Nut- 1-1/2" Hex
