BARNES 4WD Heavy Duty Steering Kit with 7/8 Heims | P/N B4WK0100

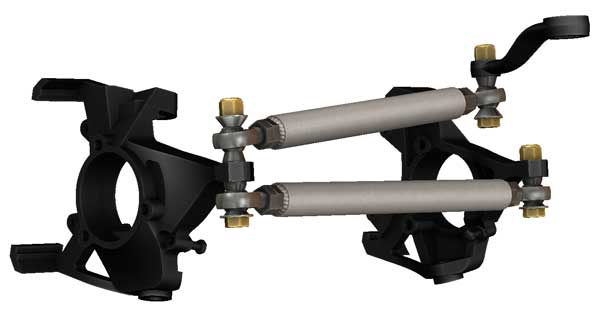

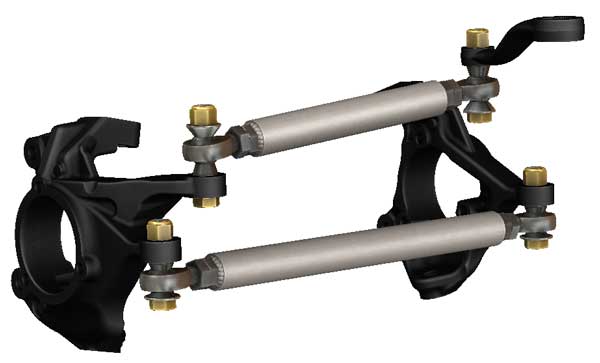

This is our universal heavy duty crossover steering kit with our super strong 7/8" heat treated chromoly heims.  This kit requires cutting the DOM tubing to length and welding in the threaded tube inserts to match your particular application.  The heim joints feature a 7/8" threaded shank, and with the use of the misalignment spacers, 3/4" hardware will be used to attach the joints to the knuckles and pitman arm.

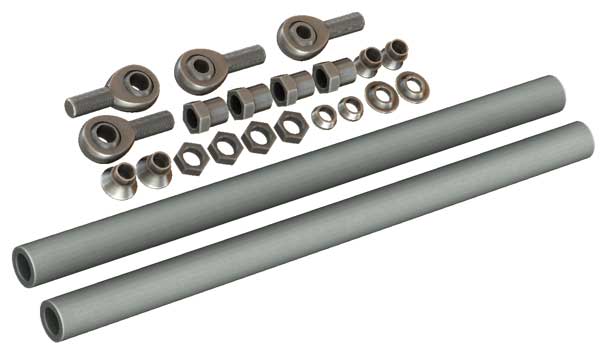

• Two 54" pieces of 1 1/2"OD 1/4" Wall DOM
• One Right Hand One Left Hand 7/8-14 x 7/8 Heim
• One Right Hand One Left Hand 7/8-14 x 3/4 Heim
• Four Hex Weld-in threaded tube inserts for 1" ID tubing

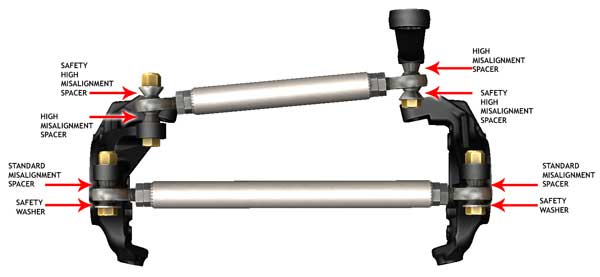

• Two 3/4" Misalignment Spacers
• Two 7/8-3/4" High Misalignment spacers
• Two 7/8"-3/4" Safety High Misalignment spacers
• Two 3/4" Safety Washers
