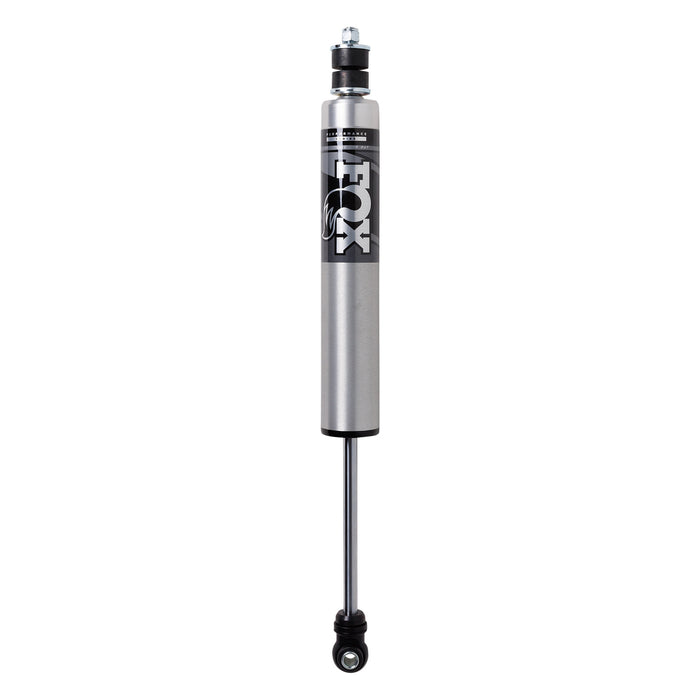

FOX Performance Series 2.5 Smooth Body IFP Hto Shock | Front, 2-3" Lift | Ram 2500/3500 (2014-2026) | P/N 987-24-045

FOX Performance Series 2.5 Smooth Body IFP Hto Shock (Front, 2-3" Lift) for Ram 2500/3500 (2014-2026).

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.

• 2.5” Impact extruded 6061-T6 aluminum shock body
• Type II clear-anodized body plating
• High-flow velocity-sensitive damping
• 5/8” hard chrome shaft
• Internal floating piston (IFP)
• Hydraulic Top Out (HTO) piston
• Corrosion resistant
• Application specific tune
• Fully rebuildable and re-tunable

Package dimensions 26.0000 x 3.0000 x 3.0000 in. Weight 7.0000 lb. 12 Months warranty. Made in USA.

Fitment

• 2014-2026 Ram 2500, Front (Lift: 2-3)
• 2014-2026 Ram 3500, Front (Lift: 2-3)

Installation instructions (PDF)

Part Numbers

• 987-24-045 · 692878900683
