Superduty Dana 60 Radius Arm Brackets

BARNES 4WD Ford Superduty Dana 60 Radius Arm Brackets | P/N B4WK12447

by Barnes 4WD
SKU B4WK12447
✓ In stock and ready to ship.
$94.72 - $95.77
$94.72
$94.72 - $95.77
$94.72

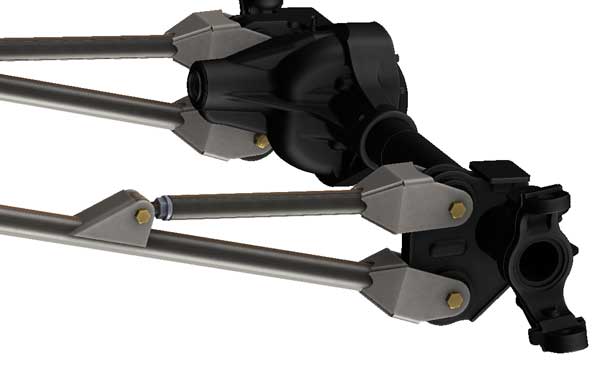

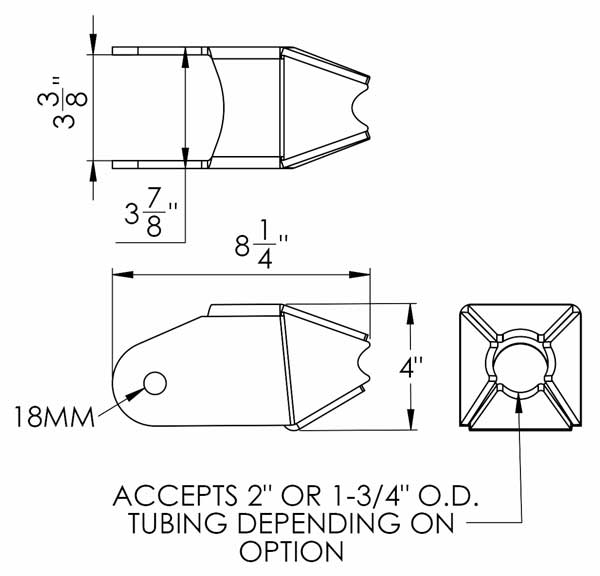

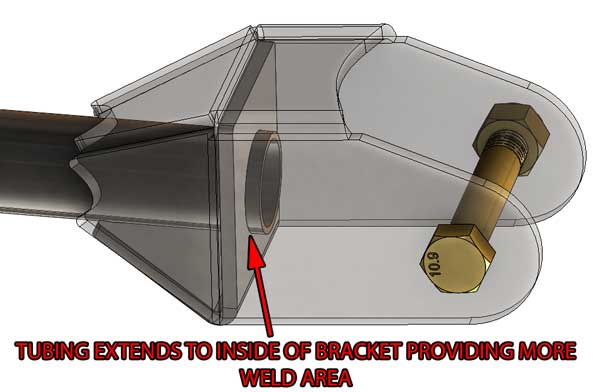

If you are looking to build a custom suspension for your coil sprung Ford Superduty Dana 60 axle, this is the kit that you need to be able to attach your suspension links to the factory radius arm brackets.  This kit includes a pair of radius arm brackets manufactured to accept either a 2 inch or 1-3/4 inch round outer diameter tube.  All components are manufactured from 1/4 inch thick steel for durability, and hardware is included.  Unlike other brackets on the market we designed ours so the tubing extends inside the bracket allowing a full weld for increased strength.  You will receive 2 brackets and the correct hardware to fit the Super duty Dana 60 axle, the brackets will ship bare and require paint or powder coat after installation, and welding is required for installation.

Two are needed to make a set of Radius arms.

Parts included in kit:
  • 2 Radius arm brackets
  • 2 18mm bolts
  • 2 18mm locknuts

Part Numbers

  • MPN B4WK12447
  • MPN B4WK12448
Vehicle Fitment
