BILSTEIN B8 8112 (ZoneControl CR DSA+) 60mm Front Right Corner Module | Front Right, 2.25-3.25" Lift | Toyota Tundra (2007-2021) | P/N 41-326091

BILSTEIN B8 8112 (ZoneControl CR DSA+) 60mm Front Right Corner Module (Front Right, 2.25-3.25" Lift) for Toyota Tundra (2007-2021).

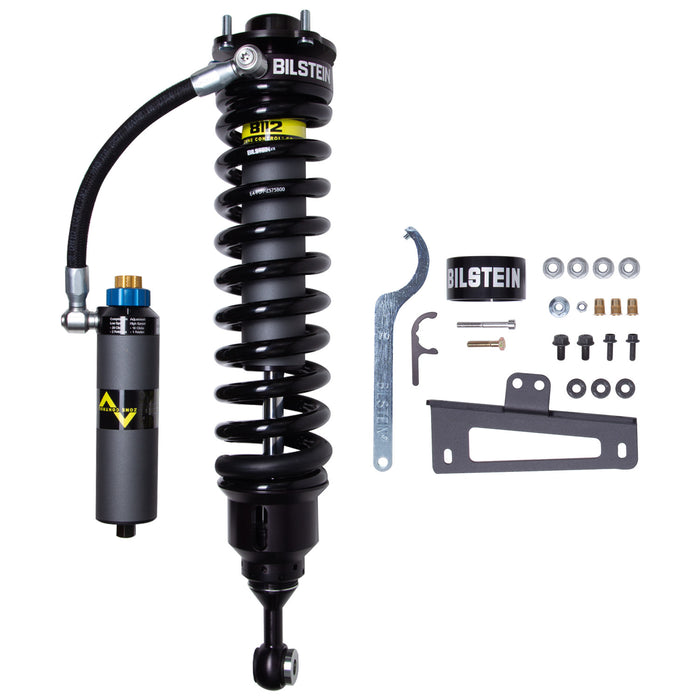

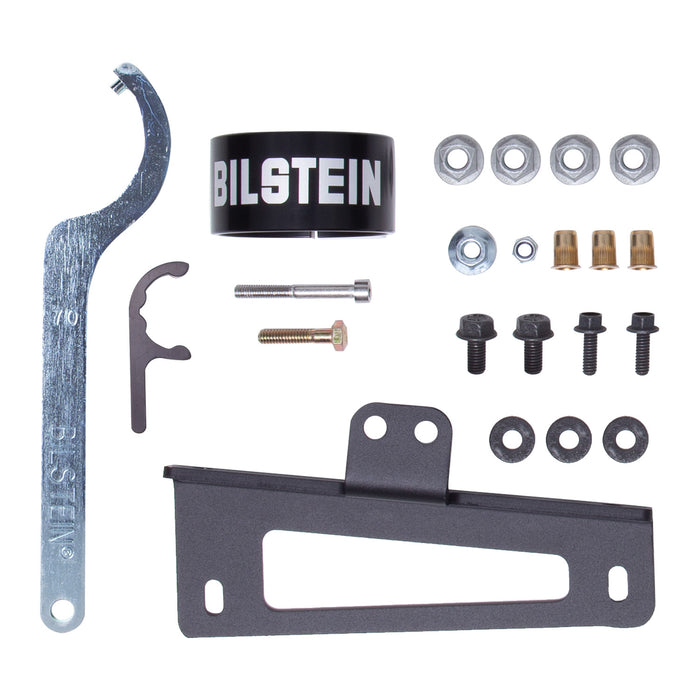

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit 3-way adjustable 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied bolt-on anodized reservoir chassis mount.

• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons
• Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
• 60mm remote reservoir for increased oil capacity and cooling

Package dimensions 33.5000 x 11.8800 x 8.8800 in. Weight 44.8000 lb. 24 Months warranty. Made in USA.

Fitment

• 2007-2011, 2014-2021 Toyota Tundra SR5, Front Right (Provides 2.75-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2007-2011, 2014-2021 Toyota Tundra SR5, Front Right (Provides 2.25-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2007-2021 Toyota Tundra Limited, Front Right (Provides 2.75-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2007-2021 Toyota Tundra Limited, Front Right (Provides 2.25-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2007-2013 Toyota Tundra Base, Front Right (Provides 2.75-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2007-2013 Toyota Tundra Base, Front Right (Provides 2.25-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2010-2021 Toyota Tundra Platinum, Front Right (Provides 2.75-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2010-2021 Toyota Tundra Platinum, Front Right (Provides 2.25-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2014-2021 Toyota Tundra SR, Front Right (Provides 2.75-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2014-2021 Toyota Tundra SR, Front Right (Provides 2.25-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2014-2021 Toyota Tundra 1794 Edition, Front Right (Provides 2.75-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2014-2021 Toyota Tundra 1794 Edition, Front Right (Provides 2.25-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2015-2017, 2019-2021 Toyota Tundra TRD Pro, Front Right (Provides 2.25-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2021 Toyota Tundra Trail, Front Right (Provides 2.75-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2021 Toyota Tundra Trail, Front Right (Provides 2.25-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2021 Toyota Tundra Nightshade, Front Right (Provides 2.75-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)
• 2021 Toyota Tundra Nightshade, Front Right (Provides 2.25-3.25" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended)

Installation instructions (PDF)

Part Numbers

• 41-326091 · 651860942155
