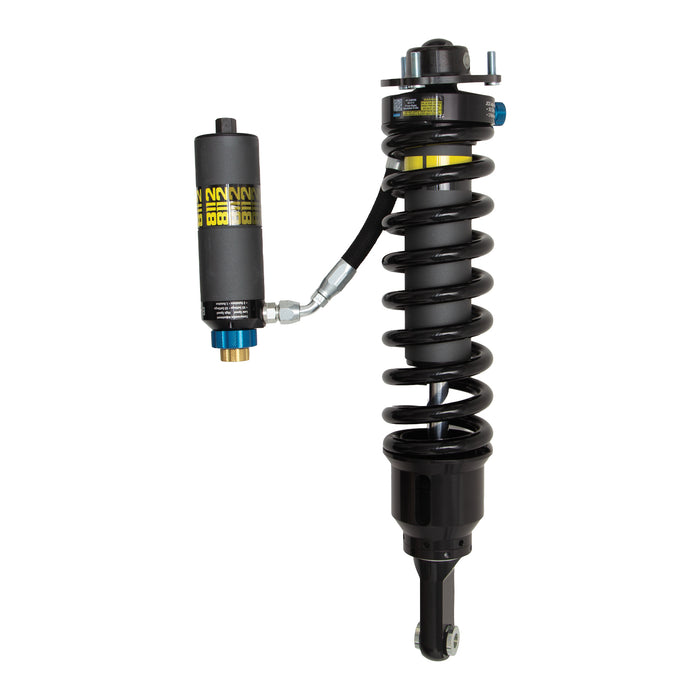

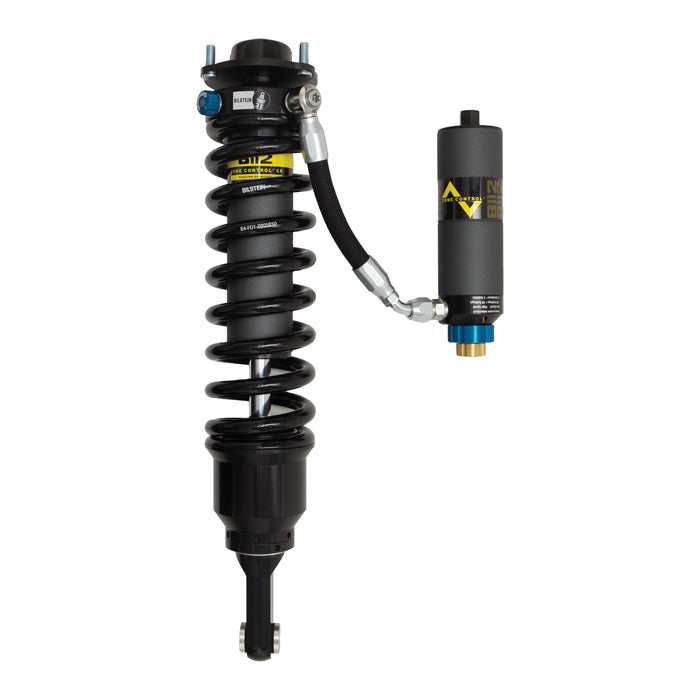

BILSTEIN B8 8112 (ZoneControl CR DSA+) 60mm Front Right Corner Module | Toyota 4Runner (2003-2009), Lexus GX470 (2003-2009) & More | P/N 41-326350

BILSTEIN B8 8112 (ZoneControl CR DSA+) 60mm Front Right Corner Module (Front Right, 2.2-3.3" Lift) for Toyota 4Runner (2003-2009), Lexus GX470 (2003-2009) & More.

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit 3-way adjustable 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied bolt-on anodized reservoir chassis mount.

• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons
• Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
• 60mm remote reservoir for increased oil capacity and cooling

Package dimensions 33.5000 x 11.8800 x 8.8800 in. Weight 39.3000 lb. 24 Months warranty. Made in USA.

Fitment

• 2003-2009 Lexus GX470 Base, Front Right (Provides 1.3-3" Front Lift; Requires wheels with maximum 4.5" backspacing)
• 2003-2009 Toyota 4Runner SR5, Front Right (Provides 1.3-3.4" Front Lift; Requires wheels with maximum 4.5" backspacing)
• 2003-2009 Toyota 4Runner Limited, Front Right (Provides 1.3-3.4" Front Lift; Without X-REAS Suspension; Requires wheels with maximum 4.5" backspacing)
• 2003-2009 Toyota 4Runner SR5, Front Right (Provides 2.8-4" Front Lift; Requires wheels with maximum 4.5" backspacing)
• 2003-2009 Toyota 4Runner SR5, Front Right (Provides 2.2-3.3" Front Lift; Requires wheels with maximum 4.5" backspacing)
• 2003-2009 Toyota 4Runner Limited, Front Right (Provides 2.8-4" Front Lift; Without X-REAS Suspension; Requires wheels with maximum 4.5" backspacing)
• 2003-2009 Toyota 4Runner Limited, Front Right (Provides 2.2-3.3" Front Lift; Without X-REAS Suspension; Requires wheels with maximum 4.5" backspacing)
• 2007 Toyota FJ Cruiser TRD Special Edition, Front Right (Provides 2.2-3.3" Front Lift; Requires wheels with maximum 4.5" backspacing)
• 2007-2009 Toyota FJ Cruiser Base, Front Right (Provides 2.2-3.3" Front Lift; Requires wheels with maximum 4.5" backspacing)
• 2008 Toyota FJ Cruiser Trail Teams Special Edition, Front Right (Provides 2.2-3.3" Front Lift; Requires wheels with maximum 4.5" backspacing)

Installation instructions (PDF)

Part Numbers

• 41-326350 · 651860961033
