BILSTEIN B8 8112 (ZoneControl CR DSA+) 60mm Front Left Corner Module | Front Left, 0.4-2" Lift | Toyota Tacoma (2005-2023) | P/N 41-319574

by BILSTEIN

SKU 41-319574

✓ In stock and ready to ship.

Save 8%

$1,592.00

$1,592.00 - $1,592.00

$1,592.00

$1,460.00

$1,460.00 - $1,460.00

$1,460.00

BILSTEIN B8 8112 (ZoneControl CR DSA+) 60mm Front Left Corner Module (Front Left, 0.4-2" Lift) for Toyota Tacoma (2005-2023).

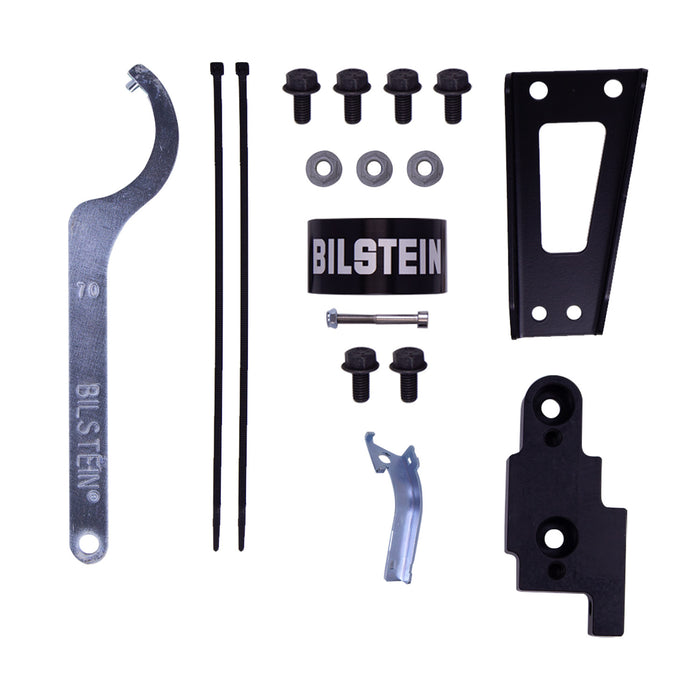

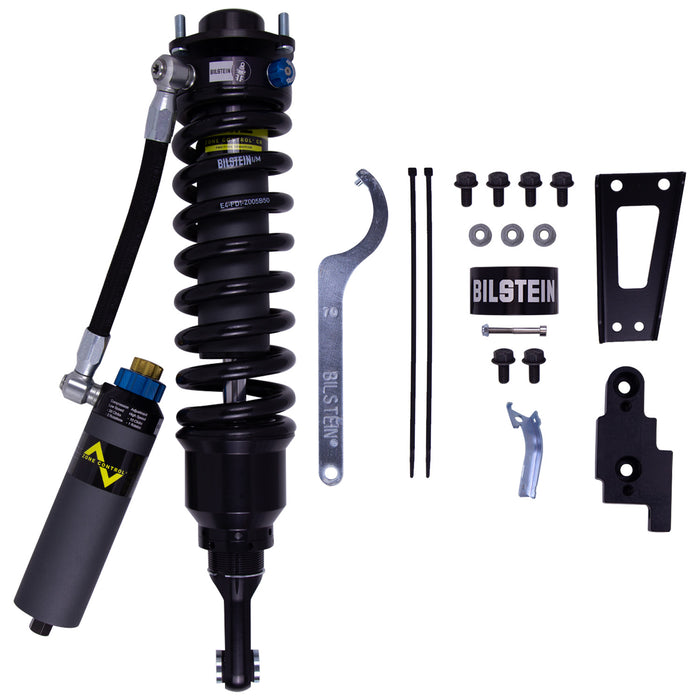

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit 3-way adjustable 2.65-in body position sensitive coilover shock designed for light trucks and SUV's. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied bolt-on anodized reservoir chassis mount.

ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons
Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
60mm remote reservoir for increased oil capacity and cooling

Package dimensions 33.5000 x 11.8800 x 8.8800 in. Weight 37.4000 lb. 24 Months warranty. Made in USA.

Fitment

2005-2015 Toyota Tacoma Pre Runner, Front Left (Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2005-2015 Toyota Tacoma Base, Front Left (Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2015 Toyota Tacoma TRD Pro, Front Left (Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2016-2023 Toyota Tacoma TRD Sport, Front Left (Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2016-2023 Toyota Tacoma TRD Sport, Front Left (Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2016-2023 Toyota Tacoma TRD Off-Road, Front Left (Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2016-2023 Toyota Tacoma TRD Off-Road, Front Left (Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2016-2023 Toyota Tacoma SR5, Front Left (Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2016-2023 Toyota Tacoma SR5, Front Left (Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2016-2023 Toyota Tacoma SR, Front Left (Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2016-2023 Toyota Tacoma SR, Front Left (Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2016-2023 Toyota Tacoma Limited, Front Left (Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2016-2023 Toyota Tacoma Limited, Front Left (Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2016-2023 Toyota Tacoma SR5, Front Left (Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2016-2023 Toyota Tacoma SR5, Front Left (Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2016-2023 Toyota Tacoma SR, Front Left (Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2016-2023 Toyota Tacoma SR, Front Left (Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2017 Toyota Tacoma TRD Pro, Front Left (Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2017-2023 Toyota Tacoma TRD Pro, Front Left (Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2021 Toyota Tacoma Trail, Front Left (Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2021 Toyota Tacoma Trail, Front Left (Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2021-2022 Toyota Tacoma Nightshade, Front Left (Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)
2023 Toyota Tacoma Trail Special Edition, Front Left (Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended)

Installation instructions (PDF)

Part Numbers

41-319574 · 651860885919
