BILSTEIN B8 8112 (ZoneControl CR) 60mm Front Left Corner Module | Front Left, 1.5-2.3" Lift | Ford F-150 (2015-2023) | P/N 41-326701

by BILSTEIN

SKU 41-326701

✓ In stock and ready to ship.

Save 8%

$1,265.00

$1,265.00 - $1,265.00

$1,265.00

$1,160.00

$1,160.00 - $1,160.00

$1,160.00

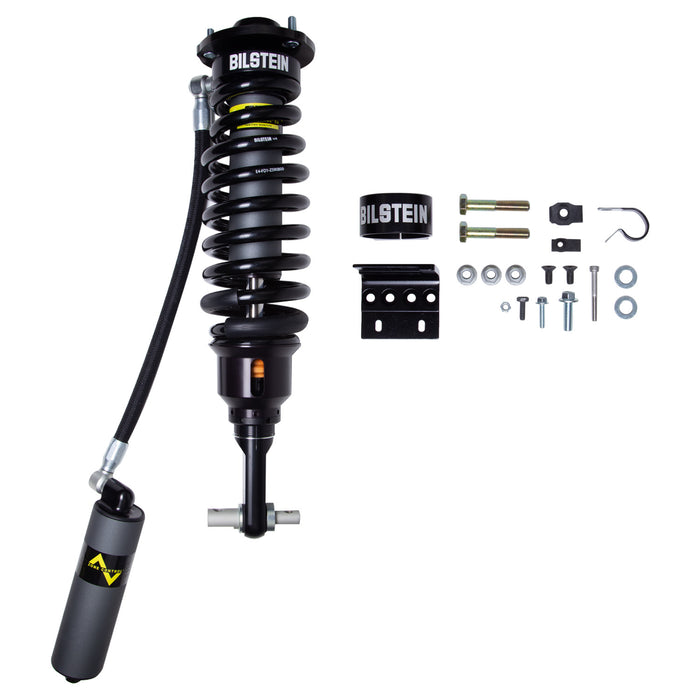

BILSTEIN B8 8112 (ZoneControl CR) 60mm Front Left Corner Module (Front Left, 1.5-2.3" Lift) for Ford F-150 (2015-2023).

Bilstein B8 8112 (ZoneControl CR) is a direct fit 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons
Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
60mm remote reservoir for increased oil capacity and cooling

Package dimensions 33.5000 x 11.8800 x 8.8800 in. Weight 44.2000 lb. 24 Months warranty. Made in USA.

Fitment

2018-2020 Ford F-150 Lariat, Front Left (Provides 1.5-2.2" Front Lift)
2018-2020 Ford F-150 King Ranch, Front Left (Provides 1.5-2.2" Front Lift)
2015-2020 Ford F-150 XLT, Front Left (Provides 1.5-2.3" Front Lift)
2015-2020 Ford F-150 XL, Front Left (Provides 1.5-2.3" Front Lift)
2015-2020 Ford F-150 Lariat, Front Left (Provides 1.5-2.3" Front Lift)
2016-2020 Ford F-150 Limited, Front Left (Provides 1.5-2.3" Front Lift)
2021-2023 Ford F-150 XLT, Front Left (Provides 1.6-2.7" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required)
2021-2023 Ford F-150 XL, Front Left (Provides 1.6-2.7" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required)
2021-2023 Ford F-150 Platinum, Front Left (Provides 1.6-2.7" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required)
2021-2023 Ford F-150 Limited, Front Left (Provides 1.6-2.7" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required)
2021-2023 Ford F-150 Lariat, Front Left (Provides 1.6-2.7" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required)
2021-2023 Ford F-150 King Ranch, Front Left (Provides 1.6-2.7" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required)
2021-2023 Ford F-150 XLT, Front Left (Provides 1.6-2.5" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required)
2021-2023 Ford F-150 XL, Front Left (Provides 1.6-2.5" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required)
2021-2023 Ford F-150 Tremor, Front Left (Provides 0-2.1" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine)
2021-2023 Ford F-150 Platinum, Front Left (Provides 1.6-2.5" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required)
2021-2023 Ford F-150 Limited, Front Left (Provides 1.6-2.5" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required)
2021-2023 Ford F-150 Lariat, Front Left (Provides 1.6-2.5" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required)
2021-2023 Ford F-150 King Ranch, Front Left (Provides 1.6-2.5" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required)
2021-2023 Ford F-150 XLT, Front Left (Provides 1.8-2.5" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required)
2021-2023 Ford F-150 XL, Front Left (Provides 1.8-2.5" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required)
2021-2023 Ford F-150 Lariat, Front Left (Provides 1.8-2.5" Front Lift; Without Continuously Controlled Damping; Aftermarket Upper Control Arms required)
2023 Ford F-150 Tremor, Front Left (Provides 0-2.1" Front Lift; Without Continuously Controlled Damping)
2015-2020 Ford F-150 Platinum, Front Left (Provides 1.5-2.3" Front Lift)
2015-2020 Ford F-150 King Ranch, Front Left (Provides 1.5-2.3" Front Lift)
2018-2020 Ford F-150 XLT, Front Left (Provides 1.5-2.2" Front Lift)
2018-2020 Ford F-150 XL, Front Left (Provides 1.5-2.2" Front Lift)
2018-2020 Ford F-150 Platinum, Front Left (Provides 1.5-2.2" Front Lift)

Installation instructions (PDF)

Part Numbers

41-326701 · 651860928456
