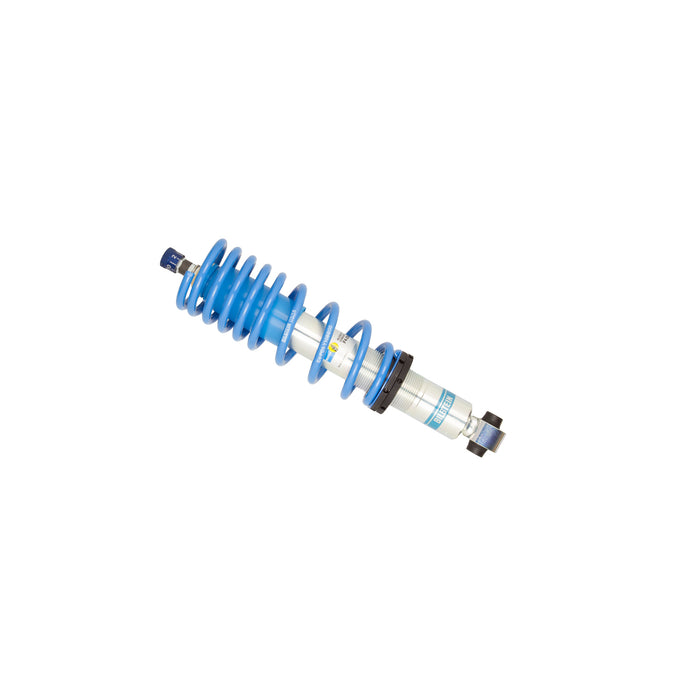

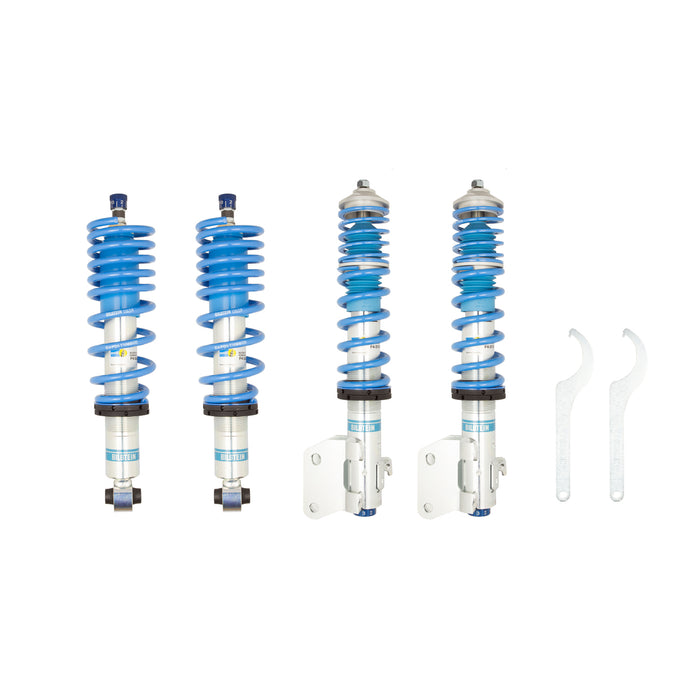

BILSTEIN B16 (PSS10) Performance Suspension System | Front and Rear | Subaru WRX/WRX STI (2015-2021) | P/N 48-249546

BILSTEIN B16 (PSS10) Performance Suspension System (Front and Rear) for Subaru WRX/WRX STI (2015-2021).

Bilstein B16 (PSS10) suspension kits feature ride height adjustability with 10-stage manually adjustable dampers in an OE quality direct fit package. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. B16 (PSS10) suspension kits are made in Germany and feature technology tested on the famed Nürburgring.

• Quick and easy damping level adjustment
• Threaded body allows lowering of approximately 30mm to 50mm
• Tested by our engineers under motorsport conditions

Package dimensions 30.3000 x 11.0000 x 8.3000 in. Weight 49.8900 lb. 60 Months warranty. Made in Germany.

Fitment

• 2015-2021 Subaru WRX Premium, Front and Rear (Front Lowered Height: 15-20mm up to 1075kg Axle Load; Rear Lowered Height: 15-25mm up to 1040kg Axle Load; Wheel spacers may be required for some wheel/tire combinations)
• 2015-2021 Subaru WRX Limited, Front and Rear (Front Lowered Height: 15-20mm up to 1075kg Axle Load; Rear Lowered Height: 15-25mm up to 1040kg Axle Load; Wheel spacers may be required for some wheel/tire combinations)
• 2015-2021 Subaru WRX Base, Front and Rear (Front Lowered Height: 15-20mm up to 1075kg Axle Load; Rear Lowered Height: 15-25mm up to 1040kg Axle Load; Wheel spacers may be required for some wheel/tire combinations)
• 2015-2021 Subaru WRX STI Limited, Front and Rear (Front Lowered Height: 15-20mm up to 1075kg Axle Load; Rear Lowered Height: 15-25mm up to 1040kg Axle Load; Wheel spacers may be required for some wheel/tire combinations)
• 2015 Subaru WRX STI Launch Edition, Front and Rear (Front Lowered Height: 15-20mm up to 1075kg Axle Load; Rear Lowered Height: 15-25mm up to 1040kg Axle Load; Wheel spacers may be required for some wheel/tire combinations)
• 2015-2021 Subaru WRX STI Base, Front and Rear (Front Lowered Height: 15-20mm up to 1075kg Axle Load; Rear Lowered Height: 15-25mm up to 1040kg Axle Load; Wheel spacers may be required for some wheel/tire combinations)
• 2016 Subaru WRX STI Series.HyperBlue, Front and Rear (Front Lowered Height: 15-20mm up to 1075kg Axle Load; Rear Lowered Height: 15-25mm up to 1040kg Axle Load; Wheel spacers may be required for some wheel/tire combinations)
• 2017-2018 Subaru WRX Sport-tech, Front and Rear (Front Lowered Height: 15-20mm up to 1075kg Axle Load; Rear Lowered Height: 15-25mm up to 1040kg Axle Load; Wheel spacers may be required for some wheel/tire combinations)
• 2017-2018 Subaru WRX Sport, Front and Rear (Front Lowered Height: 15-20mm up to 1075kg Axle Load; Rear Lowered Height: 15-25mm up to 1040kg Axle Load; Wheel spacers may be required for some wheel/tire combinations)
• 2018 Subaru WRX STI Type RA, Front and Rear (Front Lowered Height: 15-20mm up to 1075kg Axle Load; Rear Lowered Height: 15-25mm up to 1040kg Axle Load; Wheel spacers may be required for some wheel/tire combinations)
• 2019 Subaru WRX STI S209, Front and Rear (Front Lowered Height: 15-20mm up to 1075kg Axle Load; Rear Lowered Height: 15-25mm up to 1040kg Axle Load; Wheel spacers may be required for some wheel/tire combinations)

Installation instructions (PDF)

Part Numbers

• 48-249546 · 651860772721
