Axle Link Mount Coil Spring Combo

SKU B4WK1081-1
Original price $50.98 - Original price $62.45
Original price
$51.03
$50.98 - $62.45
Current price $51.03

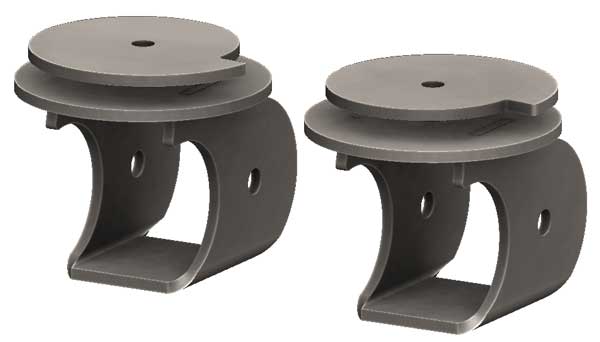

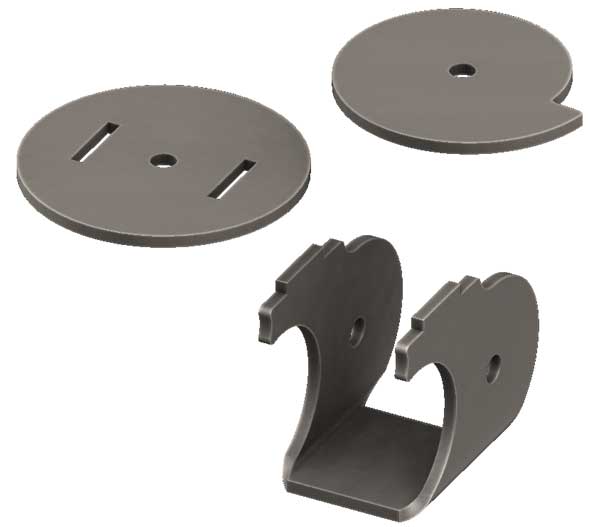

When we are building a rig more time than not we find ourselves asking Where are we going to put all this stuff ? So we set out to try to find a way to most efficiently package our lower control arm brackets and our coil spring buckets and I think we hit the nail on the head! These are sold in pairs and come with a coil spring retainer. Here are some of the benefits that we incorporated into the design.

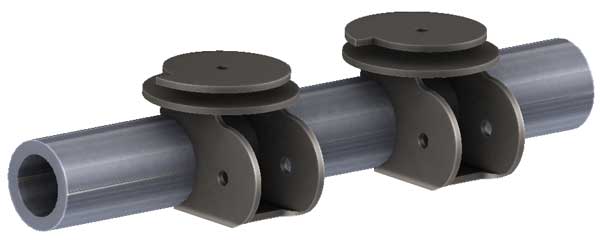

  •  Minimal axle tube needed to mount a control arm and coil spring Design keeps suspension joint as close to the axle as possible

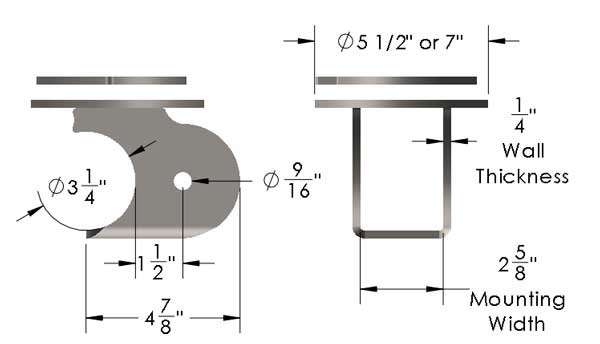

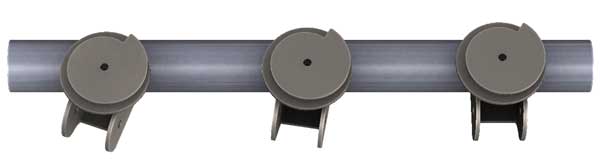

  •  Mounting angles of 0, 10 and 20 degrees Bolt hole size of 9/16
  • The control arm bracket is made from one piece of steel to make it ultra strong
Vehicle Fitment
