BARNES 4WD 7/8 Inch Offset Heim Steering Kit No Tubing | P/N B4WK1199
by Barnes 4WD
SKU B4WK1199
✓ In stock and ready to ship.
Original price
$195.64
-
Original price
$195.64
Original price
$195.64
$195.64
-
$195.64
Current price
$195.64

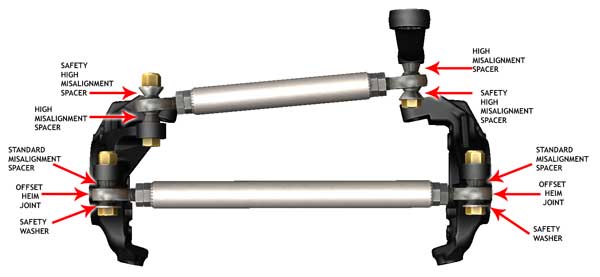

This is our universal heavy duty crossover steering kit with our super strong 7/8 inch heat treated chromoly heims. The heim joints feature a 7/8" threaded shank, and with the use of the misalignment spacers, 3/4" hardware will be used to attach the joints to the knuckles and pitman arm.

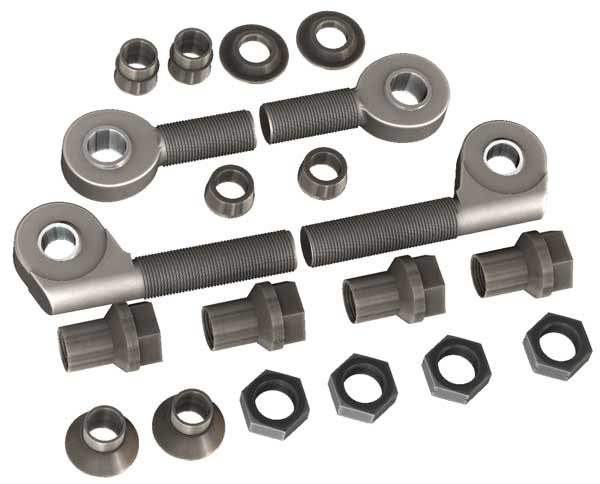

Kit Includes:
- One Right Hand and One Left Hand 7/8-14 x 7/8 Heim
- One Right Hand and One Left Hand 7/8-14 x 3/4 Offset Heim
- Four Hex Weld-in threaded tube inserts for 1 Inch ID tubing
- Two 3/4 Inch Misalignment Spacers
- Two 7/8-3/4 Inch High Misalignment Spacers
- Two 7/8-3/4 Inch Safety High Misalignment Spacers
- Two 3/4 Inch Safety Washers
- Four 7/8 Jam Nuts
This kit does not include tubing, if you need a kit with tubing you will find it here.
Part Numbers
- MPN B4WK1199
Vehicle Fitment
