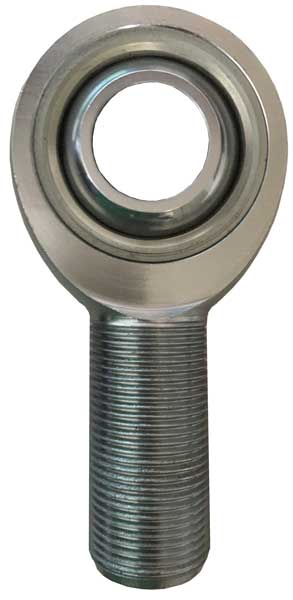

JMXL10-12T 3-Piece Heim

BARNES 4WD 3/4"-5/8" 3-Piece Precision Heat Treated Chromoly Teflon and Kevlar Lined Left Hand Heim | P/N JMXL10-12T

by Barnes 4WD
SKU JMXL10-12T
✓ In stock and ready to ship.
$17.20 - $17.20
$17.20
$17.20 - $17.20
$17.20
If you are looking for a long lasting precision chromoly rod end, this is the one for you.  This heim joint features a tough PTFE (Teflon) liner that is reinforced with Kevlar fibers for increased longevity over nylon lined heim joints.

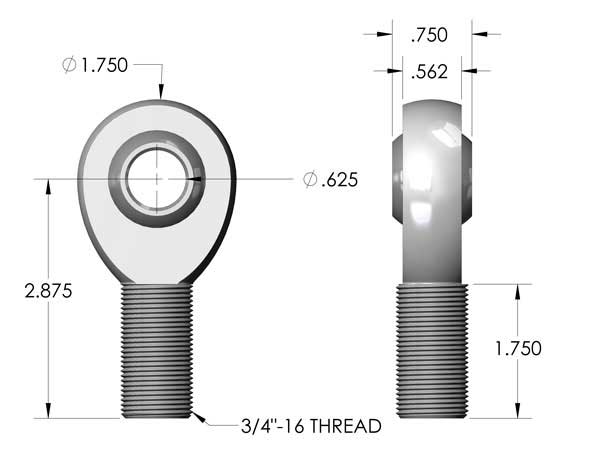

Threaded Shank
  •   3/4"-16
Bore
  • 5/8"
Static Radial Load
  • 40,572 lbs.
Ball
  • 52100 Bearing Steel
  • Precision Ground
  • Hard Chrome Plated
Race
  • 4130 Chromoly Steel
  • Heat Treated
  • PTF Lined
  • Zinc Plated
Body
  • 4130 Chromoly Steel
  • Heat Treated
  • Silver Zinc Plated

Part Numbers

  • MPN JMXL10-12T
Vehicle Fitment
