3" Axle Link Tab

BARNES 4WD 3/16" Thick 3" Axle Link Tab | P/N B4W188096X-L

by Barnes 4WD
SKU B4W188096X-L
✓ In stock and ready to ship.
$1.92 - $2.30
$2.30
$1.92 - $2.30
$2.30

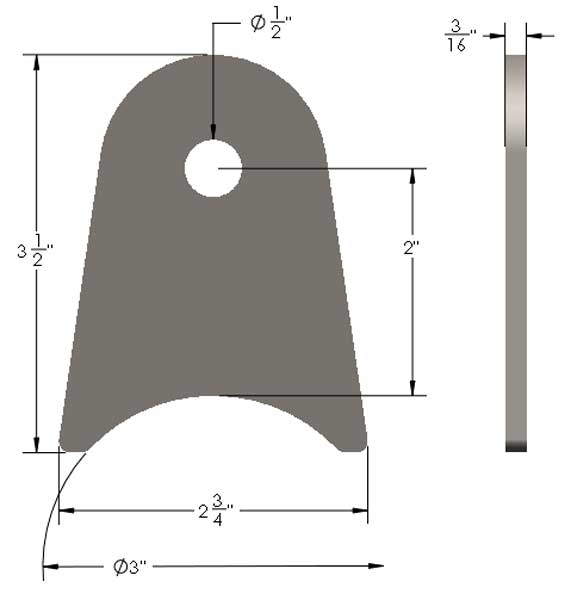

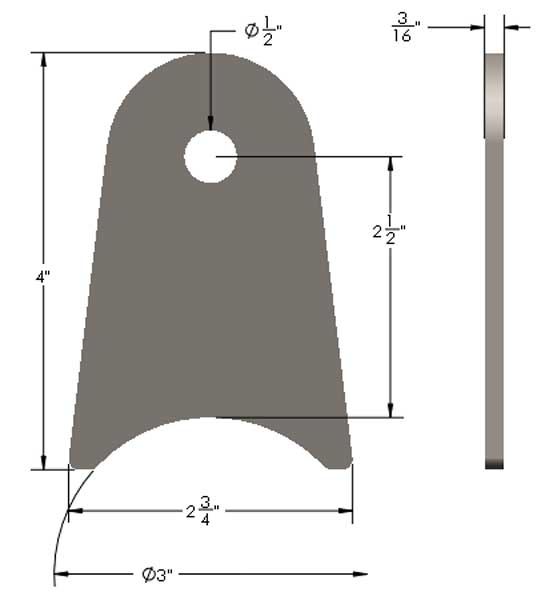

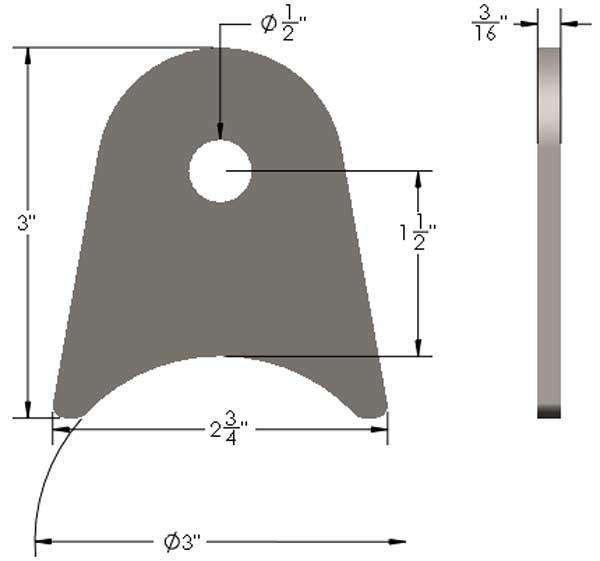

These axle link tabs are precut to fit a 3" tube but can be easily modified to fit other common sizes in a matter of minutes. These tabs are 3/16" 100,000 min yield steel and have a 0.505" bolt hole. We offer three different lengths so that you can mount your joints in a neutral position to maximize axle articulation. Long tabs are 2 1/2" from bolt hole to the tube, medium are 2" from bolt hole to the tube and the short are 1 1/2" from bolt hole to the tube.  Sold Individually.

Part Numbers

  • MPN B4W188096X-L
  • MPN B4W188096X-M
  • MPN B4W188096X-S
