1 3/4" Tube Link Tab

BARNES 4WD 3/16" Thick 1 3/4" Tube Link Tab | P/N B4W188099X-3

by Barnes 4WD
SKU B4W188099X-3
✓ In stock and ready to ship.
$1.76 - $2.14
$2.14
$1.76 - $2.14
$2.14

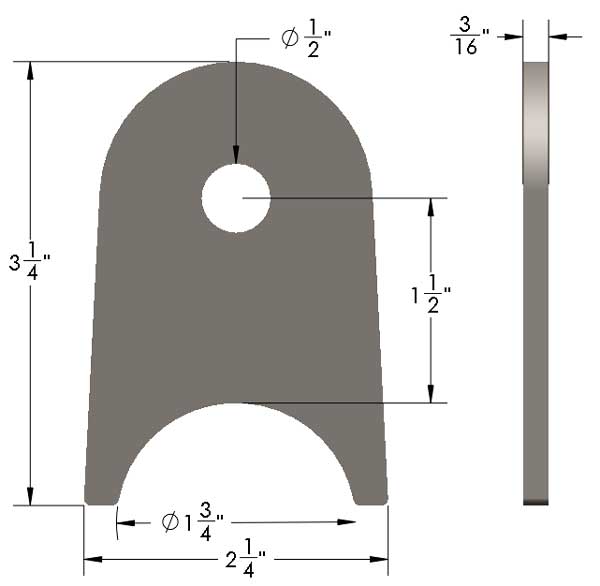

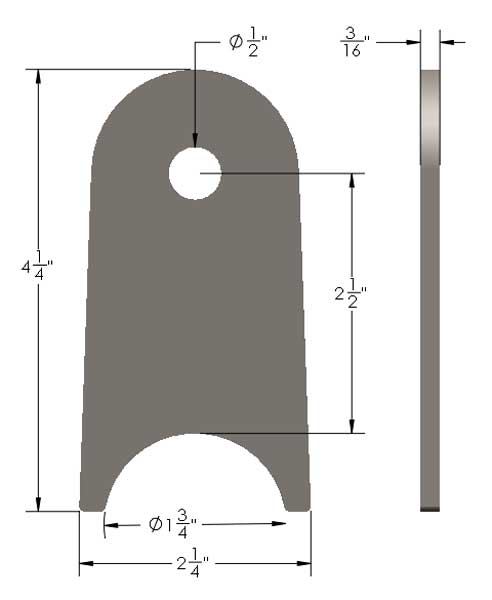

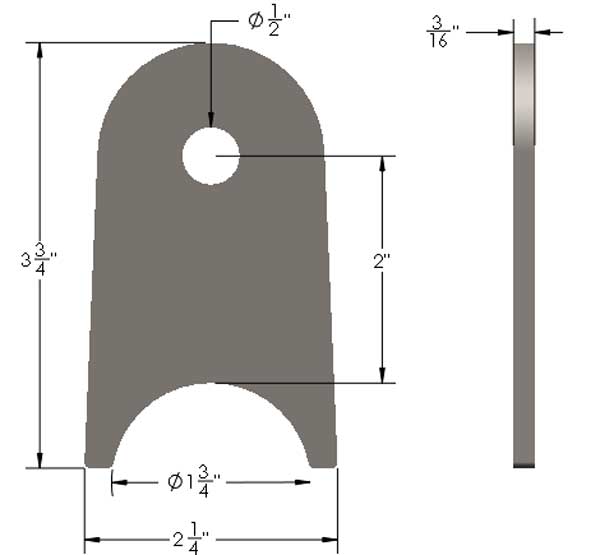

These tube link tabs are cut to fit a 1 ¾" tube but can be easily modified to fit other common sizes in a matter of minutes. These tabs are 3/16" 100,000 min yield steel and have a 1/2" bolt hole. We offer three different lengths so that you can mount your joints in a neutral position to maximize axle articulation. Long tabs are 2 1/2" from bolt hole to the tube, medium are 2" from bolt hole to the tube and short are 1 1/2" from bolt hole to the tube. Sold individually.

Part Numbers

  • MPN B4W188099X-3
  • MPN B4W188099X-2
  • MPN B4W188099X-1
