3.0 Inch Adventure "No Limits" System

SKU JT30ASNL
Original price $0.00 - Original price $0.00
Original price $0.00
$1,768.30
$1,768.30 - $2,881.90
Current price $1,768.30

The Rock Krawler Suspension JT 3.0 inch ADVENTURE "NO-LIMITS" Mid-Arm System is specifically designed for Rubicon owners who want a complete system, bolt-in installation, and some of the best articulation of any MID-ARM kit on the market. Our system proves its durability and off-road performance every time you hits the streets or trail! "No-Limits" comes from the inclusion of our front sway bar links specifically designed for use with the factory electronic sway bar disconnect feature found standard in your Rubicon Gladiator! The sway bar links themselves come with factory sized hardware, a CNC machined billet aluminum center section, and Made in USA heim joints from FK bearing, once installed, just press the button and hit the rocks! The Term, "Adventure System" comes from the inclusion of 2 non-adjustable control arms with our 100% Service Free Adventure Series joints installed. Our industry leading, Adventure series mid-Arms offer a total of 70 degrees of misalignment when paired with our Adventure series Joints at the frame connection and at the axle. The inherent bind in a factory JL/JT control arm is greatly reduced. Driving you home with the most comfortable ride possible in a Gladiator, are our TRIPLE RATE front coils and QUAD RATE rear coils. All 4 coils work together to achieve excellent on-road comfort that we feel is better than the OEM springs. The coil itself is built with the proper "Free-length" for off-road articulation and stays firmly seated in the coil bucket (as long as a proper length shock is installed), and overall, a very controlled reaction to bumps, rocks, sand, mud and whatever else you can manage to throw at them! All Rock Krawler JT systems include correction pads that reduce the spring bow inherent in the factory set up. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on road handling.

When we design a system, our goal is to provide you with the most comprehensive solution and the best geometry, install exceptional value, and be the foundation for every adventure whether it be on the Street, In tow, or down a Trail!  Thank you for considering Rock Krawler Suspension

System Benefits:

  • Complete bolt in system
  • Excellent highway ride and handling
  • The best off-road ability of all Mid Arm Systems
  • Improved rear roll center
  • Tuned Triple Rate Coils
  • Spring Correction Seats
  • Vehicle lean correction
  • Upgradable to RK Longarm System
  • Best Technical support in the industry
  • Jeep remains level on all 4 corners
  • Lifetime Warranty Coverage

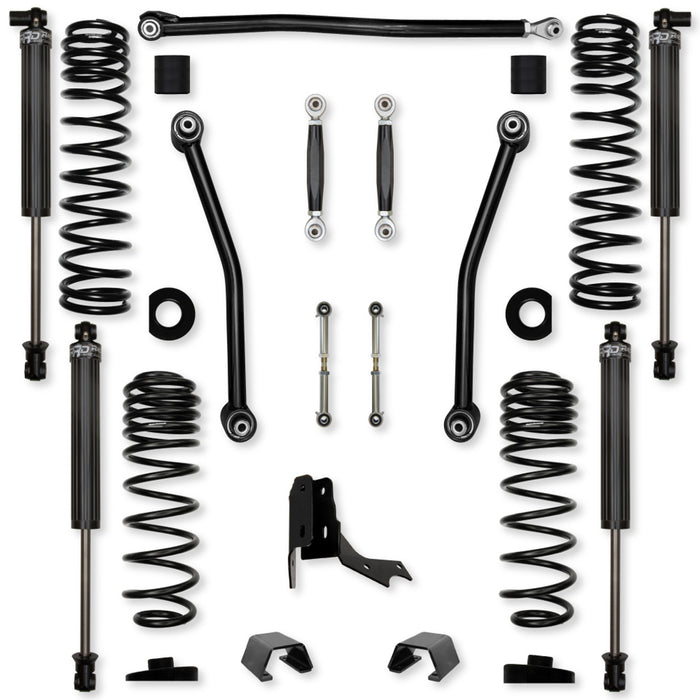

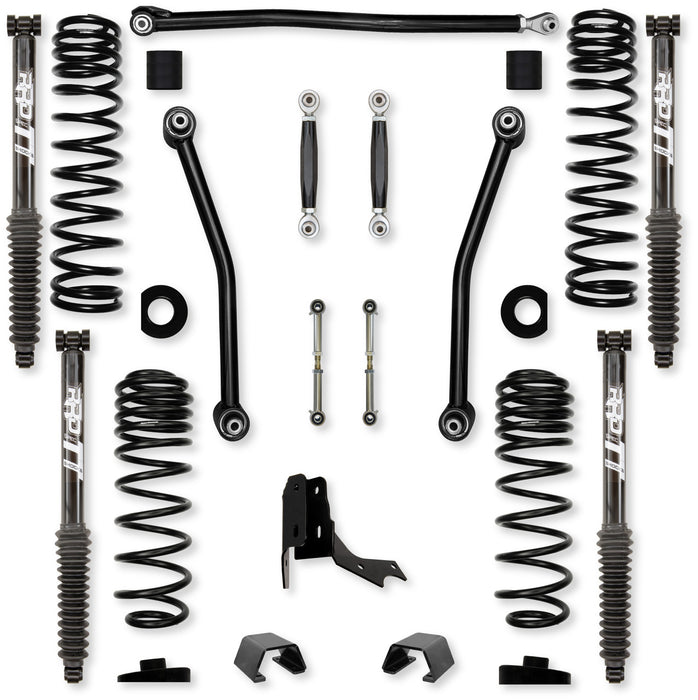

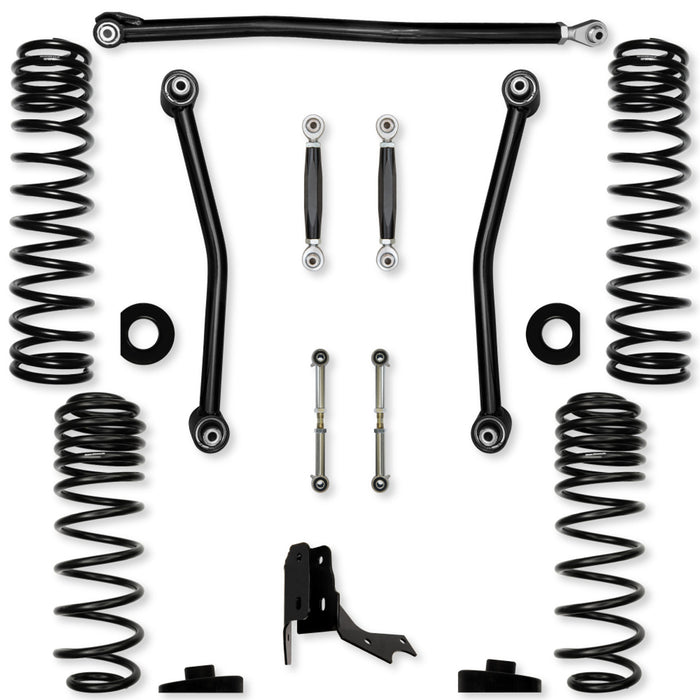

System Includes:

  • (4) Triple/ Rear Quad rate coil springs
  • (2) Front adjustable lower control arms
  • (2) Front spring pads
  • (1) Adjustable front track bar
  • (2) "No-Limits" sway bar links
  • (2) Rear spring pads
  • (2) Adjustable rear sway bar links
  • (1) Bolt-on rear track bar relocation bracket

(*DEPENDING ON SHOCK PACKAGE CHOSEN*)

  • Bumpstops are included with all shock options
  • IF YOU CHOOSE NO SHOCKS - BUMPSTOPS CAN BE PURCHASED SEPARATELY - RK07464
  • Twin Tube Shocks / 2.25"RRD shocks

Shock Information:

  • Generic Front Shock Length – 17.5” Collapsed/ 29.5” Maximum Extended
  • Generic Rear Shock Length – 17” Collapsed/ 28” Maximum Extended

TT Shocks: Steel bodied, can be installed with shaft up or down, excellent for daily drivers and weekend warriors

  • RRD Spec Twin Tube Front Shock
  • Part Number RRD04005
  • RRD Spec Twin Tube Rear Shock
  • Part Number RRD04021
  • FULL PACKAGE = RRD04022
  • requires 3" bump stops both front and rear

RRD Spec'd 2.25" Shocks: IN-HOUSE Designed and built - 2.25" Fluted aluminum construction, hard coat military grade black anodizing, 7/8" shaft, IFP (Internal floating piston), better bushings to achieve better misalignment, fully serviceable and rebuildable

  • RRD Spec Front Shock
  • Part Number RRD02285
  • RRD Spec Rear Shock
  • Part Number RRD02370
  • FULL PACKAGE = RRD02371
  • requires 3" bump stops both front and rear



Wheel Fitment:
  • Sport and Overland Wheel Fitment Recommendations
  • 37”/38” Tall Tires - Recommend 3.5” of Back Spacing
  • Rubicon Fitment Recommendations
  • 37” Tall Tires – Recommend 4.5” of Back Spacing
  • 40” Tall Tires – Recommend 3.5” of Back Spacing

Tire Fitment:

  • Sport and Overland with Full OEM Fenders
  • 37” Tall Tires (3” Bump Stop Height Recommended)
  • Sport and Overland with Trimmed or High Lined OEM Fenders
  • 38” Tall Tires (3” Bump Stop Height Recommended)
  • Rubicon with Full OEM Fenders
  • 37”/38” Tall Tires (3” Bump Stop Height Recommended)
  • Rubicon with Trimmed or High Lined OEM Fenders
  • 40” Tall Tires (3” Bump Stop Height Recommended)



General Notes:

  • All lift heights based on Rubicon models for standard style build (i.e. front bumper and winch, rear bumper and full size spare).
  • If building with a spare delete we recommend dropping 1” in coil lift height for the rear.
  • If building an "overland style" or heavily up-fitted build in the back, we recommend upsizing 1” in coil lift height for the rear.
  • We recommend a new front driveshaft if you plan to off-road routinely.(Adam's Drivesahft,Tom Woods,J.E. Reel)
