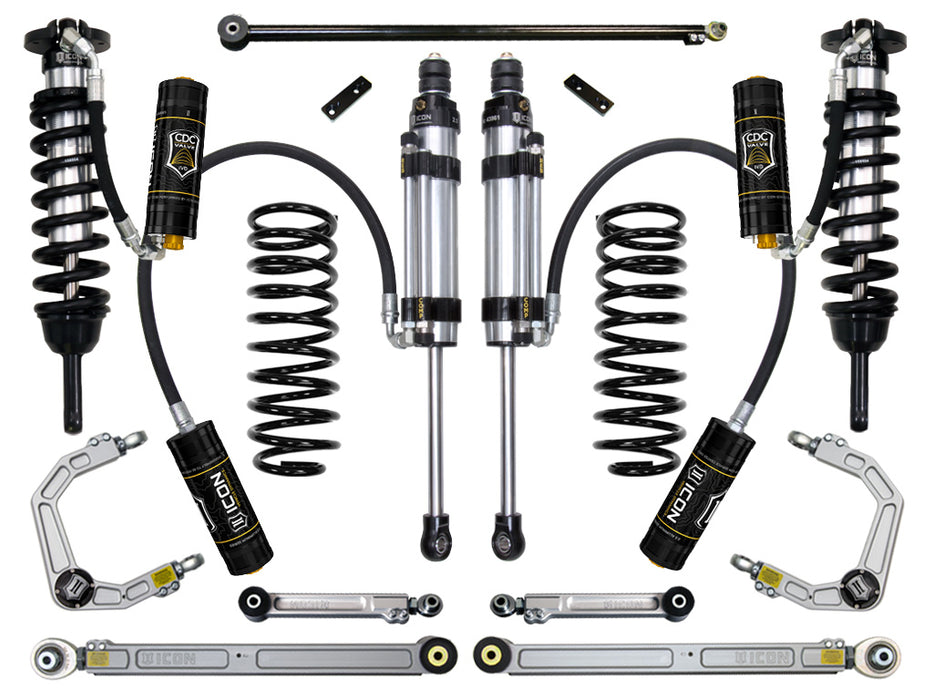

ICON Stage 8 Suspension System | 0-3.5 Inch Lift | Billet UCA | Toyota 4Runner (2010-2024)/FJ Cruiser (2010-2014) | P/N K53068

The ICON Stage 8 Suspension System (0-3.5 Inch Lift, Billet UCA) is a lift kit for the Toyota 4Runner 2010-2024/FJ Cruiser 2010-2014. Increased wheel travel and ride quality over stock.

At a Glance

• Brand: ICON
• Part Number: K53068
• Product Type: Lift Kits
• Fits: Toyota 4Runner 2010-2024/FJ Cruiser 2010-2014
• Country of Origin: United States

Features

• Increased wheel travel and ride quality over stock
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series Omega bypass rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Rear shocks feature hand adjustable bypass valves with 28 detented settings of compression and rebound adjustment at quarter turn increments for precise suspension tuning
• Adjustable rear track bar proper rear axle placement under vehicle
• Bolt-on system means no cutting or welding necessary for install
• CDC Valve technology in front coilovers allows for quick and easy compression damping adjustment without the need for tools
• Adjustable coilovers provide 0-3.5" of front lift height
• Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
• Billet aluminum upper control arms for added strength, durability, adjustability, and improved alignment geometry
• Billet Aluminum rear upper and lower links offer on vehicle pinion angle adjustment
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts

Specifications

• Front Shock Body Diameter: 2.5 IN
• Front Spring Rate: 650 PPI
• Front Spring Rate Type: Linear
• Grade Type: Performance
• Maximum Lift: 3.5 IN
• Maximum Lift Front: 3.5 IN
• Maximum Lift Height Front: 3.5 IN
• Maximum Lift Height Rear: 2 IN
• Maximum Lift Rear: 2 IN
• Minimum Lift Front: 0 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Remote
• Rear Shock Body Diameter: 2.5 IN
• Rear Spring Rate Type: Linear
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Spring Rate: 650 PPI
• Active or Passive Suspension: Passive
• Adjustable Compression: Yes
• Adjustable Control Arm: Yes
• Adjustable Damping: Yes
• Bushing(s) Included: Yes
• Coil Spring Color: Black
• Coil Spring End 1 Type: Square
• Coil Spring End 2 Type: Square
• Coil Spring Material: Steel
• Coil Spring Maximum Inside Diameter: 3 IN
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Damping Adjustment Type: Manual
• Front Damping Adjustment Type: Manual
• Front Reservoir Style: Remote

Fitment

• Toyota 4Runner (2010-2024)
• Toyota FJ Cruiser (2010-2014)

Part Numbers

• MPN K53068
