2" UNIBALL UCA SYS W/ DL 2.5 RESI & 2.25 15-20 FORD F150 4WD

2" UNIBALL UCA SYS W/ DL 2.5 RESI & 2.25 15-20 FORD F150 4WD

by Fabtech Motorsports
$0.00 - $0.00
$0.00 - $0.00
$0.00
$3,551.56
$3,551.56 - $3,551.56
$3,551.56
 More payment options

2015-20 FORD F150 4WD

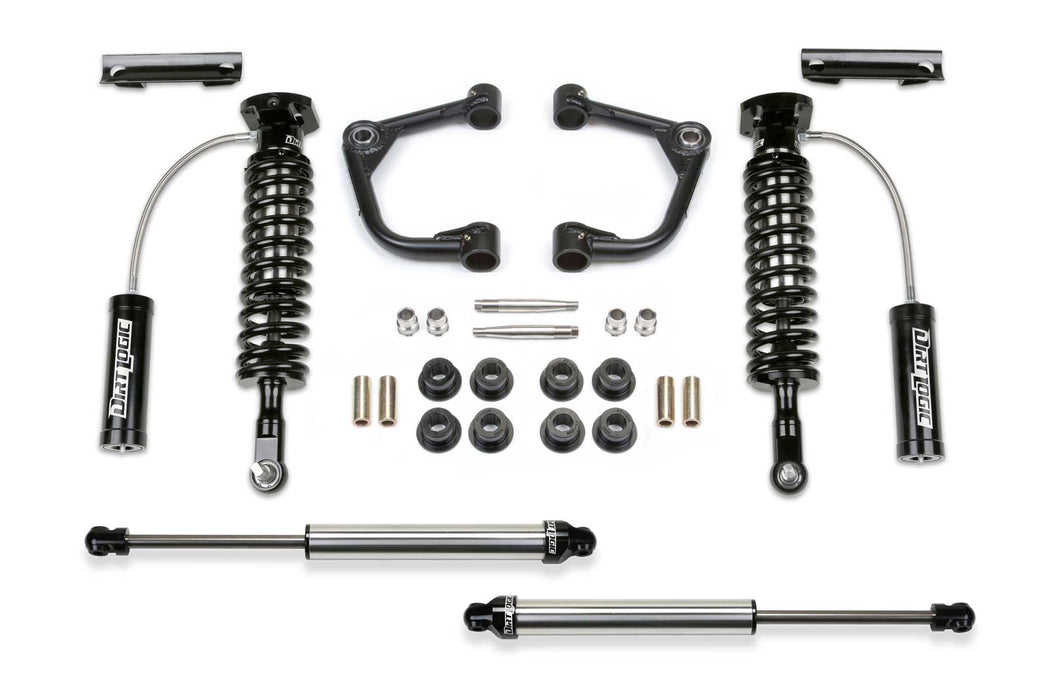

Obtain increased wheel travel with a mild lift height with this heavy duty Upper Control Arm systems. The tubular Upper Control Arms feature 1.25" OD, .120" wall thick chromoly tube construction with 1" diameter Stainless Steel Uniballs that attach to the factory spindle without drilling.

The replacement UCA’s have been designed to work in conjunction with Fabtech’s Dirt Logic 2.5 Resi Coilover shocks providing increased wheel travel for a complete front suspension system upgrade. The vehicle’s offroad suspension performance will be greatly increased due to the extensive ride tuning of the Dirt Logic 2.5 Resi Coilovers and rear Dirt Logic 2.25’s.

FEATURES
Built with same materials as found on Trophy Trucks
.120″ Wall 4130 Chromoly Tubing. 1.50″ OD
.250″ wall DOM Bushing Barrels
PTFE lined 1″ ID Stainless Steel American Uniball
17-4 Stainless Misalignments
Heat Treated 17-4 Stainless Steel Tapered Uniball Pins

Vehicle Fitment
