Easy 4 Link - Kit C - Triangulated Uppers & Lowers

SKU LK0021
Sold out
Original price $384.99 - Original price $1,484.99
Original price
$1,319.99
$384.99 - $1,484.99
Current price $1,319.99
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock

Our EASY 4-LINK KIT C is the simplest way to get your links done. This kit is based off our most popular parts we've sold our customers for a dual triangulated 4-link with angled upper and lower control arms. The brackets available in this kit allow for lowers that can attach to a crossmember underneath the transfer case and uppers that attach on the inside of the frame rails. The heat and cryogenically treated chromoly rod ends are the strongest and longest lasting on the market. The included tube adapters feature machined WRENCH FLATS for easy adjustments and tightening and conform to the outer diameter of the tubing it welds to. The included stainless steel high misalignment spacers allow for maximum articulation in the rod end. As an option, this kit offers four foot lengths of both 1.5" and 2.0" tubing to be cut to the exact length needed for your particular vehicle.

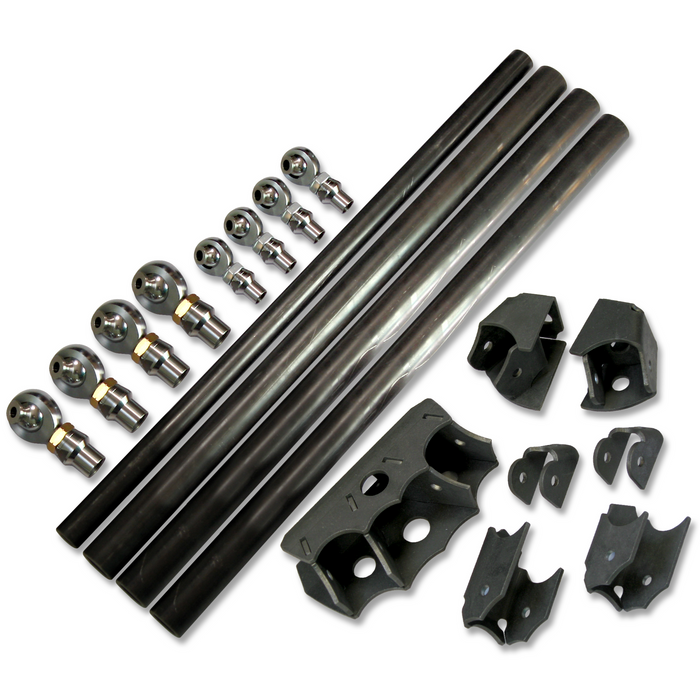

Includes:
2 RH, 2 LH - 7/8" -14tpi x 3/4" bore rod ends
2 RH, 2 LH - 7/8" -14tpi Tube Adapters
2 RH, 2 LH - 7/8" -14tpi Jam nuts
8 - 3/4"-9/16" WIDE High Misalignment Spacers
2 RH, 2 LH - 1.25" -12tpi x 1.0" bore rod ends
2 RH, 2 LH - 1.25" -12tpi Tube Adapters
2 RH, 2 LH - 1.25" -12tpi Jam nuts
8 - 1.0"-3/4" High Misalignment Spacers
2 - Inner Frame Brackets (25 deg)
1 - Large 4-link Xmember Bracket for 1.75" tubing
1 - Pair Lower Link Axle Brackets
1 - Pair Truss Upper Link Mounts (2.63")
2 - 4 ft 1.5" OD .250" thick DOM tubing (optional)
2 - 4 ft 2.0" OD .250" thick DOM tubing (optional)
SHIPPING NOTE: If selecting PRO KRAWLER Rock Krawler joints, no misalignment spacers will be shipped. The joints will be drop shipped directly from Rock Krawler in New York so extra shipping time may be needed.

NOTE: This kit will require drilling of lower link holes to 3/4" unless you specify you'd like 9/16" bolts for your lower links.
